Description
Thermon ThermoTube® Type SL
Pre-Insulated Tubing for Steam Supply, Condensate Return, and Process Fluid Transport
Thermon ThermoTube® Type SL is a premium pre-insulated single-tube system designed to transport hot or cold liquids and gases while minimizing heat loss and protecting personnel from contact with hot pipe surfaces. Originally developed for steam supply and condensate return lines, ThermoTube Type SL is also widely used for unheated sample lines, utility piping, and industrial process fluid transport.
Unlike field-insulated tubing, ThermoTube Type SL is factory-manufactured with high-quality insulation and a durable weather-resistant jacket, ensuring consistent thermal performance, faster installation, and reduced lifecycle costs.
Product Overview

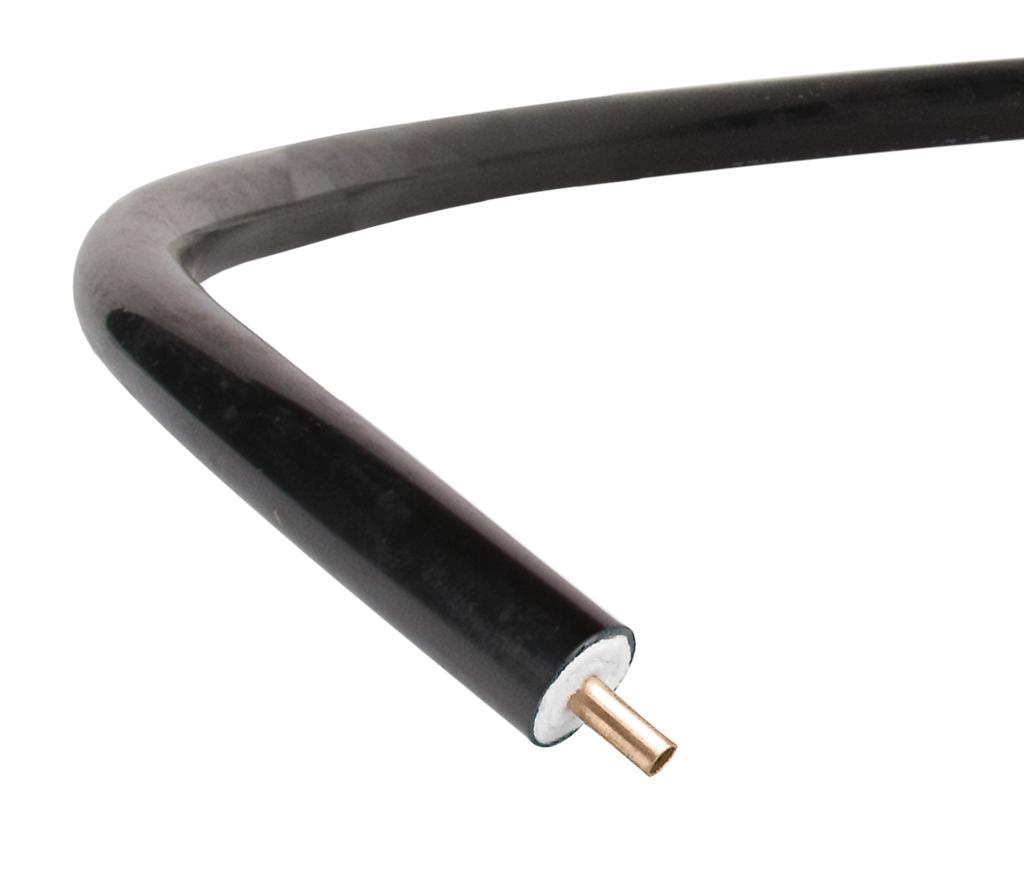

ThermoTube Type SL consists of a single process tube surrounded by non-hygroscopic glass fiber insulation, a heat-reflective foil layer, and a weather-resistant polymer outer jacket.
This factory-assembled construction minimizes thermal losses, prevents moisture absorption, and provides excellent mechanical protection in demanding industrial environments. Because it is supplied in long continuous coils, installation is faster and requires fewer field joints than conventional insulated tubing.
Key Features
- Factory pre-insulated single tube
- Ideal for steam supply and condensate return
- Suitable for hot or cold liquids and gases
- Excellent thermal insulation
- Non-hygroscopic glass fiber insulation
- Heat-reflective foil improves energy efficiency
- Durable weather-resistant polymer jacket
- Available in long continuous coil lengths
- Fast installation with fewer field joints
- Compatible with Thermon TubeTrace® and steam tracing accessories
- Low maintenance and long service life.

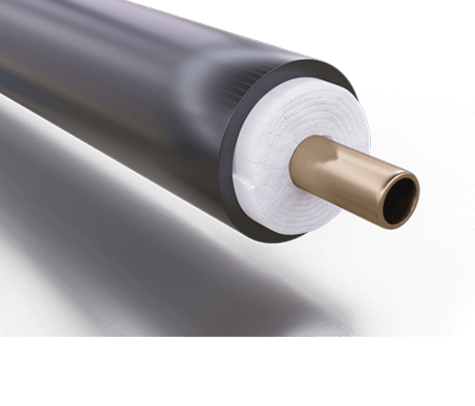

Construction
ThermoTube Type SL is engineered with four primary layers:
- Process Tube (selected to suit the application)
- Non-hygroscopic Glass Fiber Insulation
- Heat Reflective Foil Wrap
- Weather-Resistant Polymer Outer Jacket
The insulation system provides reliable thermal performance while protecting the tube from weather exposure and mechanical damage.
Available Tube Materials
ThermoTube Type SL is available in a wide range of tube materials to suit different process requirements, including:
- Copper
- 304 Stainless Steel
- 316 Stainless Steel
- Alloy 825
- Alloy C276
- Alloy 20
- Monel®
- Titanium
- PFA
- FEP
- Nylon
- Polyethylene (application dependent).
Technical Specifications
| Feature | Specification |
|---|---|
| Product Type | Pre-insulated single tube |
| Standard Tube Sizes | 1/4″, 3/8″, 1/2″, 3/4″, 1″ (availability depends on configuration) |
| Metric Tube Sizes | 6, 8, 10, 12 and 20 mm |
| Tube Materials | Copper, Stainless Steel, Alloy materials, Polymer tubing |
| Insulation | Non-hygroscopic glass fiber |
| Outer Jacket | ATP or TPU polymer |
| Standard Maximum Process Exposure | Up to 260°C (500°F) (depending on tube and jacket configuration) |
| Minimum Installation Temperature | −10°C (14°F) |
| Coil Supply | Long continuous lengths |
Higher-temperature versions (SL-HT, SL-HTX and SL-HTX2) are available for process temperatures up to 593°C (1100°F).
Benefits
Excellent Thermal Performance
Factory-installed insulation minimizes heat loss and improves energy efficiency compared with field-installed insulation.
Fast Installation
Long continuous coils reduce the number of fittings, insulation joints, and installation time.
Reduced Maintenance
Factory-manufactured insulation provides consistent quality while minimizing the risk of moisture ingress and insulation damage.
Personnel Protection
The insulated outer jacket helps reduce surface temperatures, improving operator safety around hot service lines. Actual jacket temperature depends on the selected configuration and operating conditions.
Flexible Material Selection
A wide range of tube materials allows ThermoTube Type SL to handle steam, condensate, chemicals, compressed gases, and many industrial process fluids.
Typical Applications
ThermoTube Type SL is commonly used for:
- Steam supply lines
- Condensate return lines
- Utility piping
- Instrument sample lines
- Process fluid transfer
- Chemical injection systems
- Analyzer shelters
- Refineries
- Petrochemical plants
- LNG terminals
- Power generation facilities
- Offshore platforms
- Industrial processing plants.
Installation

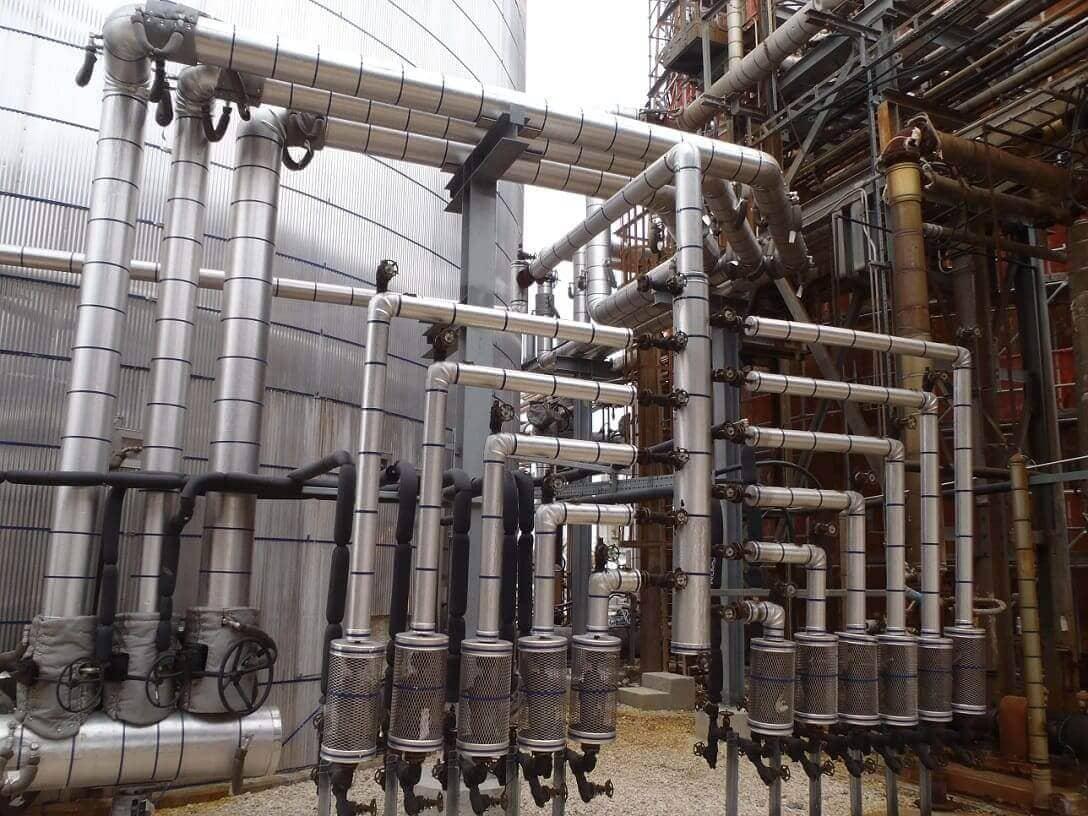

ThermoTube Type SL is supplied in continuous coils and can be installed directly in:
- Cable trays
- Strut systems
- Structural steel
- Pipe racks
- I-beams
- Utility corridors
Thermon also offers a complete range of FAK end seal kits, splice kits, elbow kits, tee kits, and bulkhead entry kits to simplify installation and provide reliable environmental sealing.
ThermoTube® Type SL vs. Field-Insulated Tubing
| Feature | ThermoTube® Type SL | Field-Insulated Tubing |
|---|---|---|
| Installation Speed | Fast | Slower |
| Insulation Quality | Factory controlled | Installer dependent |
| Moisture Resistance | Excellent | Variable |
| Thermal Performance | Consistent | May vary |
| Maintenance | Low | Higher |
| Lifecycle Cost | Lower | Higher |
Why Choose Thermon ThermoTube® Type SL?
ThermoTube Type SL provides a dependable, factory-engineered solution for transporting steam, condensate, and industrial process fluids while minimizing heat loss and simplifying installation. Its high-quality insulation, weather-resistant construction, and broad range of material options make it suitable for demanding environments across the oil & gas, petrochemical, power generation, pharmaceutical, and general industrial sectors.
Whether used as a standalone insulated tube or as part of a complete Thermon heat tracing system, ThermoTube Type SL delivers reliable thermal performance, lower installation costs, and long-term operational reliability.
