Thermon SnapTrace®
Preformed Heat Transfer Compound for High-Performance Steam Tracing

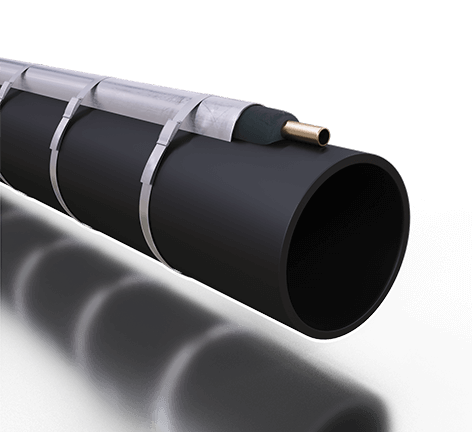

Thermon SnapTrace® is a preformed heat transfer compound designed to improve the efficiency of industrial steam tracing systems. Installed directly over steam tracer tubing on straight pipe runs, SnapTrace eliminates the air gaps that normally exist between the tracer tube and the process pipe, dramatically increasing heat transfer through conduction rather than convection or radiation. When used together with TFK protective channels, SnapTrace provides both superior thermal performance and mechanical protection for long-term industrial service.
Unlike hand-applied heat transfer compounds, SnapTrace is factory-molded and ready to install, allowing faster installation, consistent quality, and predictable heating performance.
Product Overview
SnapTrace is part of Thermon’s ChannelTrace™ family of steam tracing products. Each section is manufactured from a flexible, preformed heat transfer compound that precisely fits around the steam tracer tube and the process pipe.
By eliminating insulating air voids, SnapTrace directs heat efficiently into the pipe wall. According to Thermon, a single steam tracer installed with SnapTrace can provide thermal performance equivalent to three to five conventional bare tracers, reducing both installation costs and steam consumption.
Key Features
- Factory-preformed heat transfer compound
- Designed for straight steam-traced piping
- Rapid snap-on installation
- Up to 5× faster installation than hand-troweled compounds
- Equivalent heating performance of 3–5 bare steam tracers
- Water-resistant construction
- No surface preparation required
- No curing required
- Compatible with TFK galvanized or stainless steel channels
- Long service life with virtually unlimited shelf life when stored properly.
How SnapTrace Works

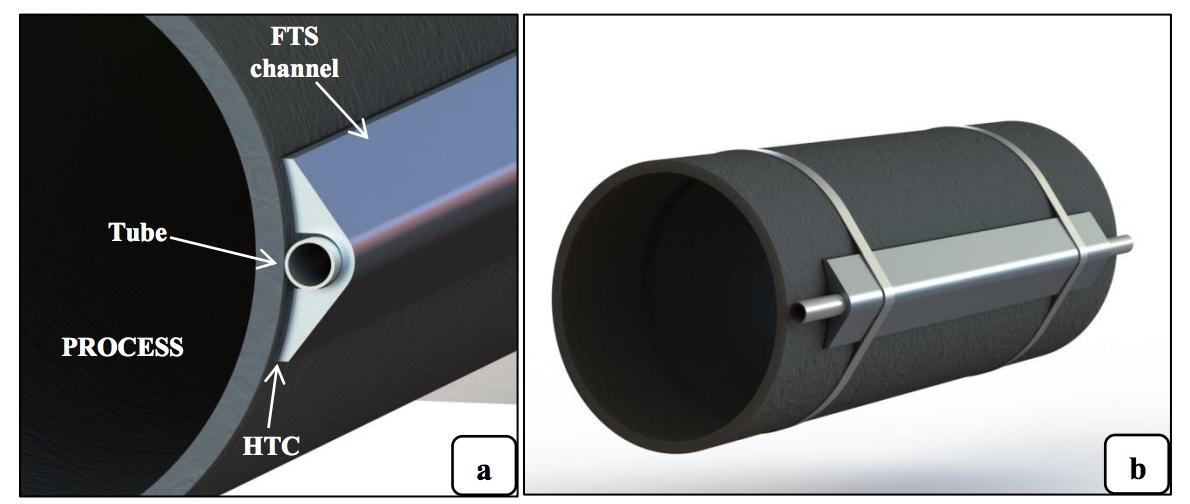

Conventional steam tracers often lose efficiency because air pockets form between the tracer tube and the process pipe. Since air is a poor thermal conductor, a significant portion of the heat is lost.
SnapTrace fills these gaps with a specially formulated heat transfer compound, allowing heat to flow directly into the pipe wall through conduction.
This results in:
- Higher thermal efficiency
- Faster pipe warm-up
- More uniform temperature distribution
- Reduced steam consumption
- Fewer steam tracers required for many applications.
Technical Specifications
| Feature | Specification |
|---|---|
| Product Type | Preformed Heat Transfer Compound |
| Standard Length | 4 ft (1.22 m) sections |
| Packaging | 25 sections per box |
| Maximum Exposure Temperature | 232°C (450°F) |
| Minimum Exposure Temperature | −65°C (−85°F) |
| Minimum Installation Temperature | −10°C (14°F) |
| Heat Transfer Coefficient | 114–227 W/m²·°C |
| Water Resistance | Yes |
| Shelf Life | Indefinite |
| Surface Preparation | Not Required |
| Curing | Not Required* |
*For fluids above 93°C (200°F), Thermon recommends approximately four hours of initial circulation to soften the compound for maximum surface conformity and optimum heat transfer.
Installation

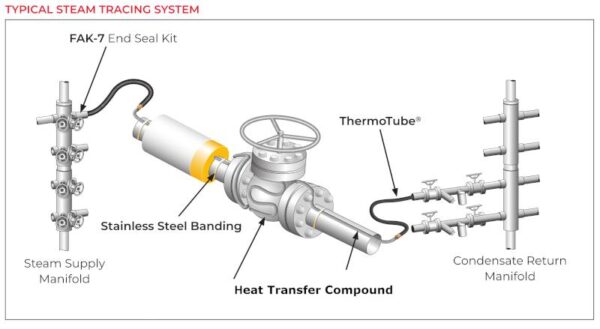

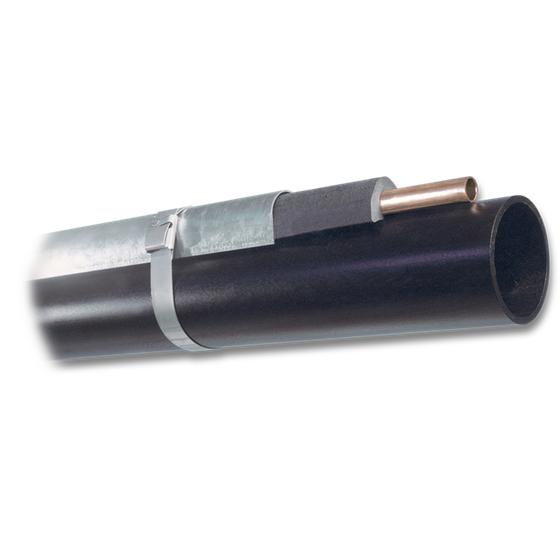

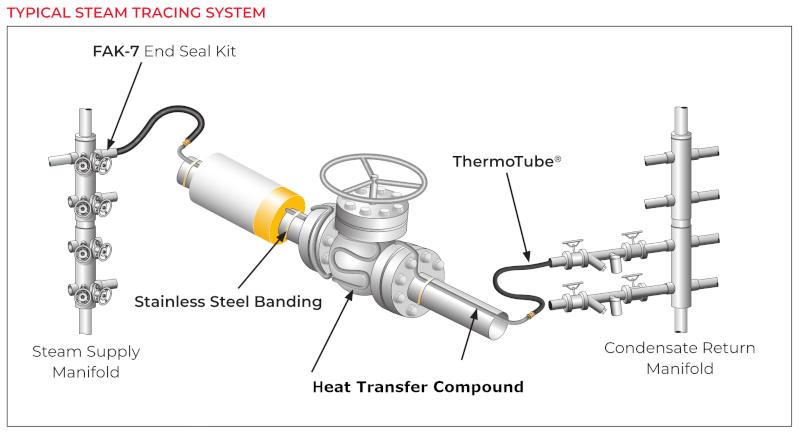

SnapTrace is installed directly over the steam tracer tube and secured using TFK protective channels together with stainless-steel banding.
A typical installation consists of:
- Steam tracer tubing
- SnapTrace heat transfer compound
- TFK galvanized or stainless-steel channel
- Stainless steel banding
- ThermoTube® supply and return tubing
- Steam manifold and condensate return manifold.
Benefits
Superior Heat Transfer
The engineered compound creates excellent thermal contact between the tracer tube and the pipe wall, greatly increasing heat transfer efficiency.
Faster Installation
Because each section is factory-molded, installation can be completed up to five times faster than traditional hand-applied compounds.
Lower Installation Costs
Improved heat transfer means fewer tracer lines are often required to achieve the same process temperature, reducing material and labor costs.
Consistent Performance
Unlike manually applied compounds, every SnapTrace section has identical dimensions and material properties, ensuring predictable thermal performance across the entire installation.
Long-Term Reliability
SnapTrace is water resistant, does not require curing, and provides durable service in demanding industrial environments.
Typical Applications
SnapTrace is widely used in:
- Oil & Gas facilities
- Refineries
- Petrochemical plants
- Chemical processing
- LNG terminals
- Power generation
- Tank farms
- Utility steam systems
- Process piping
- Valves and pumps
- Instrument impulse lines
It is particularly effective for straight pipe runs where fast installation and high heat transfer efficiency are desired.
SnapTrace vs. Conventional Heat Transfer Compound
| Feature | SnapTrace® | Hand-Applied Compound |
|---|---|---|
| Installation Speed | Up to 5× faster | Slower |
| Heat Transfer | Excellent | Good (depends on workmanship) |
| Surface Preparation | Not required | Often required |
| Curing | Not required | May be required |
| Installation Quality | Factory controlled | Installer dependent |
| Thermal Performance | Consistent | Variable |
Why Choose Thermon SnapTrace?
SnapTrace combines high thermal efficiency, rapid installation, and long-term reliability into a single engineered solution. By maximizing conductive heat transfer between the steam tracer and the process pipe, it reduces energy losses, lowers installation costs, and delivers predictable performance throughout the life of the steam tracing system.
For industrial facilities seeking a faster, cleaner, and more efficient alternative to conventional heat transfer compounds, Thermon SnapTrace is a proven solution that integrates seamlessly with the complete ChannelTrace™ steam tracing system.
