Description

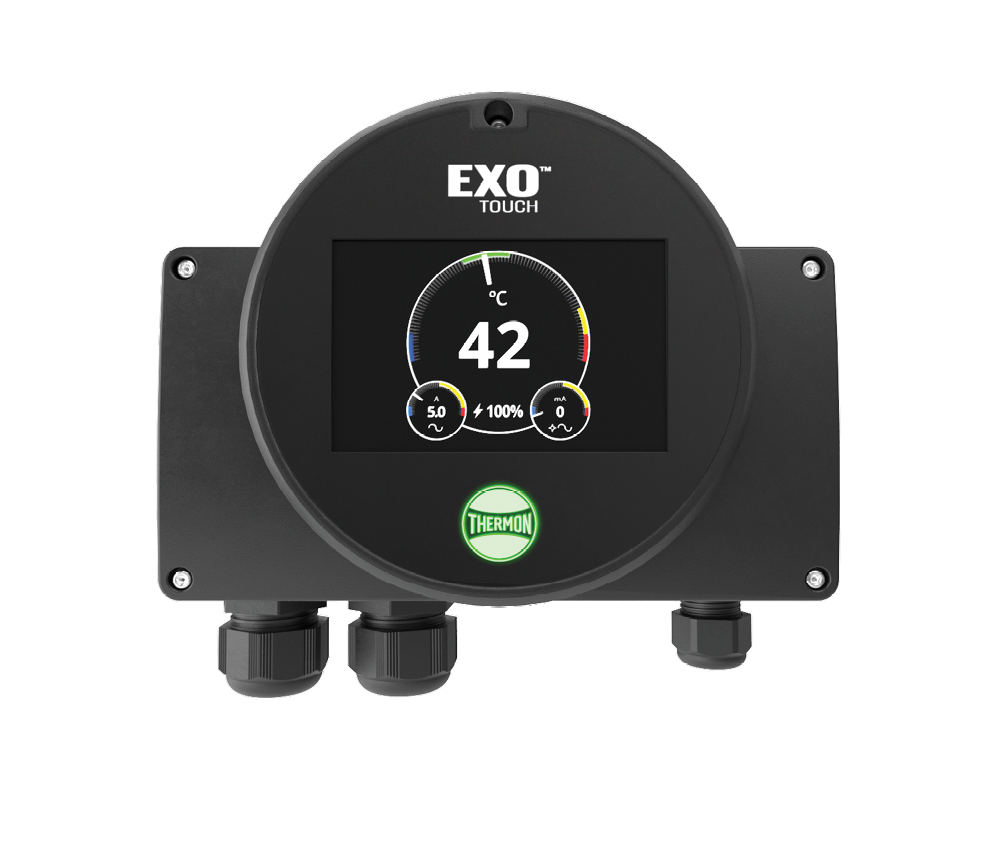

Thermon EXO TOUCH™ Commercial Heat Trace Controller
Intelligent Single-Point Control & Monitoring for Commercial Heat Tracing Systems
The Thermon EXO TOUCH™ is an advanced single-point heat trace controller designed to provide intelligent control and monitoring for commercial electric heat tracing applications. Featuring a modern 4.3-inch color touchscreen, intuitive user interface, and comprehensive monitoring capabilities, EXO TOUCH delivers reliable thermal management while simplifying installation, configuration, and daily operation. It is designed for ordinary (non-hazardous) locationsand is housed in a weather-resistant enclosure suitable for indoor and outdoor installations.
Product Overview
The EXO series is Thermon’s dedicated commercial control platform for a wide variety of electrical heat tracing applications. EXO TOUCH provides accurate temperature control for a single heating circuit while continuously monitoring system performance, electrical current, and ground fault conditions.
Its user-friendly touchscreen interface enables operators to configure control parameters, monitor operating status, review alarms, and access diagnostic information without requiring additional programming devices.
Key Features
- 4.3-inch resistive LCD touchscreen
- Single-point heat trace control
- Supports one heating circuit
- Two thermistor temperature sensor inputs
- Visual and audible alarm notifications
- LED status indicator with color-coded operating conditions
- Heater current monitoring up to 35 A
- Ground fault current monitoring from 0–200 mA
- Outdoor-rated enclosure for reliable operation in harsh weather
- Simple menu-driven configuration
- Designed for Ordinary Locations
- International safety certifications
- Easy installation and commissioning
Control Modes
EXO TOUCH supports multiple control strategies to suit different heating applications:
- ON / OFF Control
- ON / OFF Limiter
- APCM (Ambient Proportional Control Mode)
- APCM Limiter
These control methods optimize energy consumption while maintaining stable temperatures under changing environmental conditions.
Typical Applications
EXO TOUCH is suitable for a wide range of commercial electric heat tracing systems, including:
- Freeze Protection of Water Pipes
- Domestic Hot Water Temperature Maintenance
- Fire Sprinkler Pipe Freeze Protection
- Grease Waste Flow Maintenance
- Roof & Gutter De-Icing
- Snow Melting Systems
- Commercial Buildings
- Hospitals
- Hotels
- Schools
- Shopping Centers
- Airports
- Office Buildings
Technical Highlights
| Feature | Specification |
|---|---|
| Display | 4.3″ Resistive LCD Touchscreen |
| Control Capacity | 1 Heat Trace Circuit |
| Sensor Inputs | 2 Thermistors |
| Temperature Range | -40°C to +125°C |
| Heater Current Measurement | Up to 35 A |
| Ground Fault Monitoring | 0–200 mA |
| Supply Voltage | 100–240 VAC (50 Hz), 110–277 VAC (60 Hz) |
| Alarm Output | Form C Relay (NO/NC Configurable) |
| Installation | Indoor & Outdoor (Ordinary Locations) |
Benefits
Thermon EXO TOUCH offers numerous advantages for commercial building owners and facility managers:
- Easy-to-use touchscreen interface
- Improved energy efficiency
- Continuous system monitoring
- Early fault detection
- Reduced maintenance costs
- Fast commissioning
- Reliable freeze protection
- Accurate temperature control
- Compact and attractive enclosure
- Long-term operational reliability
Why Choose Thermon EXO TOUCH?
EXO TOUCH combines modern touchscreen technology with Thermon’s proven heat tracing expertise to deliver an intelligent, reliable, and easy-to-operate controller for commercial heat tracing systems. Whether protecting water pipes from freezing, maintaining domestic hot water temperatures, or controlling snow melting systems, EXO TOUCH provides dependable performance while minimizing operating costs and simplifying system management.
