Description
Thermon Genesis Duo™ IIoT Heat Trace Controller
Advanced Dual-Point Control & Monitoring for Industrial Heat Tracing
The Thermon Genesis Duo™ is a next-generation IIoT-enabled heat trace controller and monitoring systemdesigned specifically for industrial electric heat tracing applications. Combining intelligent temperature control, high-temperature limiting, real-time monitoring, and advanced communications, Genesis Duo provides a powerful solution for improving system reliability, energy efficiency, and operational visibility across industrial facilities.
Product Overview

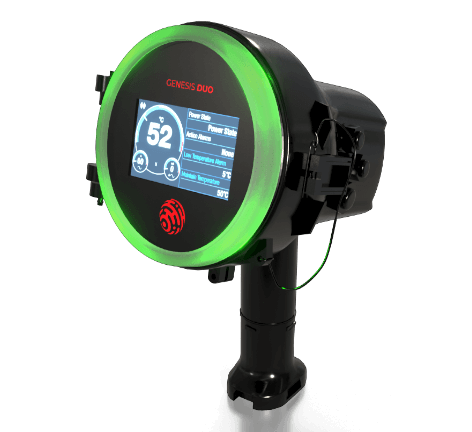

Genesis Duo is capable of controlling and monitoring one or two independent heat tracing circuits while supporting multiple RTD temperature sensors for accurate process control. The controller features a 4.3-inch glove-touch LCD display with an integrated multi-color light ring that provides instant visual indication of operating status, alarms, and system conditions.
Unlike conventional standalone controllers, Genesis Duo is designed as a native device within the Thermon Genesis Network, allowing direct communication with centralized supervisory software through either wireless mesh networking or wired Ethernet without requiring additional gateway hardware.
Key Features
- Dual-point temperature control and monitoring
- Controls up to 2 independent heat tracing circuits
- 4.3-inch glove-touch color LCD display
- Multi-color LED light ring for visual status indication
- Native integration with the Thermon Genesis Network
- Wireless Mesh (IEEE 802.15.4) and Ethernet communications
- Modbus RTU / ASCII compatibility for DCS integration
- Supports multiple RTD temperature sensors
- Independent High Temperature Limiter function
- Heater current monitoring
- Ground fault current monitoring
- Event logging and alarm history
- Remote configuration and diagnostics
- Industrial IP66 / NEMA 4X enclosure
- Suitable for hazardous and industrial environments when installed according to applicable certifications.
Intelligent Control Modes
Genesis Duo offers several advanced control strategies to maximize temperature stability and minimize energy consumption:
- On / Off Control
- Ambient On / Off
- On / Off with Soft Start
- Proportional Control
- Ambient Proportional Mechanical Control (APMC)
These operating modes allow the controller to optimize power consumption while maintaining precise process temperatures under varying environmental conditions.
High Temperature Limiter
One of Genesis Duo’s most important capabilities is its independent High Temperature Limiter.
The limiter channel utilizes dedicated RTD inputs and operates independently from the temperature control channel, helping protect heat tracing systems from excessive temperatures while meeting the requirements of IEC/EN/UL/CSA 60079-30-1 for controlled electrical heat tracing systems used in hazardous locations.
Genesis Network Integration
Genesis Duo is fully integrated with the Thermon Genesis Network, enabling plant operators to:
- Monitor hundreds of heat tracing circuits
- View alarms in real time
- Analyze historical temperature trends
- Configure controllers remotely
- Reduce maintenance visits
- Improve plant reliability
- Manage multiple facilities from a centralized dashboard
The system supports both wireless mesh networking and traditional Ethernet infrastructure, providing flexibility for new installations and retrofit projects.
Typical Applications
Genesis Duo is widely used in:
- Oil & Gas Facilities
- LNG Terminals
- Petrochemical Plants
- Refineries
- Chemical Processing
- Offshore Platforms
- Power Generation
- Mining Operations
- Pharmaceutical Plants
- Food & Beverage Processing
- Industrial Storage Terminals
- Process Pipeline Networks
Technical Highlights
| Feature | Specification |
|---|---|
| Control Capacity | Up to 2 Heat Trace Circuits |
| Display | 4.3″ Glove-Touch LCD |
| Temperature Sensors | Up to 4 RTDs per circuit (configuration dependent) |
| Supply Voltage | 100–277 VAC, 50/60 Hz |
| Output Current | Up to 30 A |
| Heater Current Monitoring | Up to 60 A |
| Ground Fault Monitoring | Up to 200 mA |
| Communication | Ethernet, RS-485, Wireless Mesh |
| Protocol | Modbus RTU / ASCII |
| Protection Rating | IP66 / NEMA 4X |
| Operating Temperature | -40°C to +60°C |
Benefits
Genesis Duo delivers significant advantages for industrial heat tracing systems:
- Centralized heat trace management
- Reduced maintenance costs
- Faster fault detection
- Improved plant safety
- Enhanced process reliability
- Lower energy consumption
- Simplified commissioning
- Remote diagnostics and monitoring
- Scalable IIoT architecture
- Future-ready industrial connectivity
Why Choose Thermon Genesis Duo?
Genesis Duo represents Thermon’s most advanced field controller for industrial heat tracing systems. By combining intelligent dual-circuit temperature control, integrated high-temperature limiting, wireless IIoT connectivity, and centralized monitoring capabilities, it enables plant operators to achieve safer operation, improved reliability, and lower lifecycle costs.
Whether deployed in a refinery, LNG terminal, petrochemical complex, or power plant, Genesis Duo provides a powerful and scalable solution for modern heat trace control and monitoring.
