Description
Thermon Genesis Controller™
Advanced Multi-Circuit Heat Trace Control & Monitoring System
The Thermon Genesis Controller™ is a comprehensive multi-circuit control and monitoring platform designed for large industrial electric heat tracing systems. Built for mission-critical applications, it provides centralized control, intelligent diagnostics, data logging, and real-time monitoring of multiple heat trace circuits, helping plant operators improve reliability, reduce maintenance costs, and maximize operational efficiency.
Unlike conventional single-circuit controllers, the Genesis Controller is designed to manage 18 to 72 independent heat trace circuits within a single panel, making it an ideal solution for refineries, LNG terminals, petrochemical plants, and other facilities with extensive heat tracing infrastructure.
Product Overview
Genesis Controller combines temperature control, circuit protection, alarm management, historical data logging, and network communications into one integrated system. Operators can monitor every heat trace circuit through a large industrial touchscreen Human-Machine Interface (HMI), while engineers can remotely access the system through the Thermon Genesis Network or plant Distributed Control System (DCS).

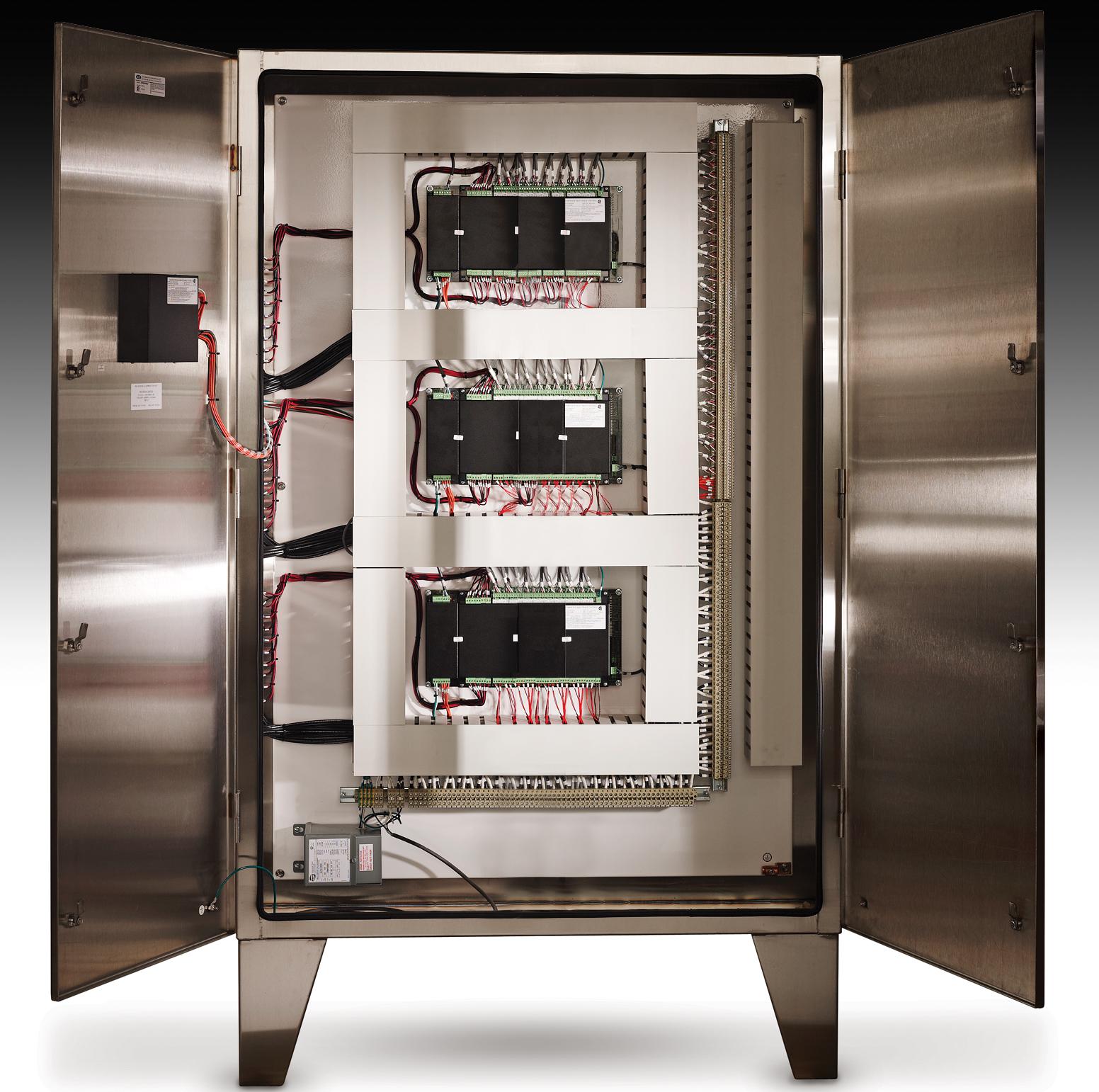

Designed with a modular architecture, Genesis Controller simplifies system expansion and supports both new installations and large-scale retrofit projects.
Key Features
- Controls 18 to 72 independent heat trace circuits

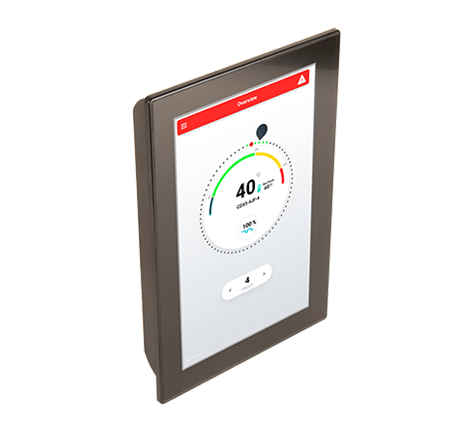

- Large 10.6-inch glove-touch LCD HMI
- Real-time circuit monitoring
- Individual temperature control for each circuit
- Heater current monitoring
- Ground/Earth leakage monitoring
- Programmable alarm and trip settings
- Historical data logging (up to 6 months)
- Ethernet communication
- Native integration with the Thermon Genesis Network
- Remote diagnostics and configuration
- Modular system design

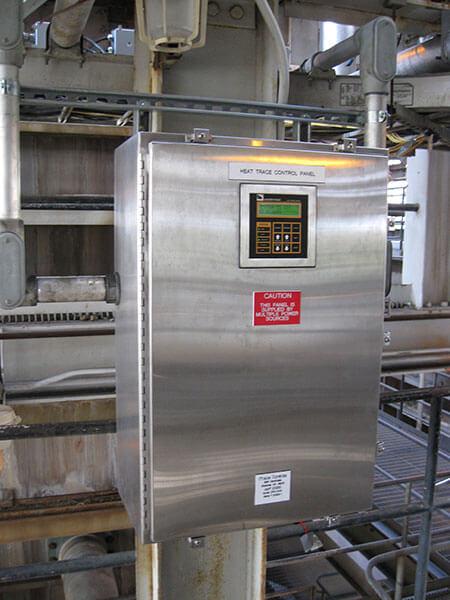

- Suitable for ordinary and hazardous locations (model dependent)
- Available with mechanical or solid-state relay configurations.
Intelligent Control Modes
Genesis Controller supports multiple temperature control strategies for maximum operational flexibility:
- On/Off Control
- On/Off Soft Start
- Proportional Control
- Ambient Proportional Control
- Ambient Proportional Control – Mechanical (APCM)
These control methods improve temperature stability while optimizing energy consumption and extending the life of heat tracing systems.
Comprehensive Monitoring
Genesis Controller continuously supervises the operating condition of every connected circuit, including:
- Process temperature
- Ambient temperature
- Heater current
- Ground fault current
- Relay status
- RTD sensor status
- Communication status
- Circuit health
- Alarm history
This level of monitoring enables maintenance teams to identify developing issues before they result in process interruptions.
Alarm & Protection Functions
The controller offers extensive protection capabilities, including:
- High Temperature Alarm
- Low Temperature Alarm
- High Temperature Trip
- High Current Alarm
- High Current Trip
- Ground/Earth Leakage Alarm
- Ground Leakage Trip
- RTD Failure Detection
- Relay Failure Detection
- Communication Loss Alarm
- Configuration Error Alarm
These features help protect both equipment and personnel while maintaining continuous process operation.
Genesis Network Integration
Genesis Controller is a core component of the Thermon Genesis Network™, enabling plant-wide supervision of heat tracing systems.
Through the Genesis Network, operators can:
- View all heat trace circuits from one dashboard
- Monitor alarms in real time
- Analyze historical operating trends
- Perform remote diagnostics
- Configure controllers remotely
- Generate maintenance reports
- Access the system from any web browser
The controller supports both wireless mesh and wired Ethernet network architectures, providing flexibility for greenfield projects and plant expansions.

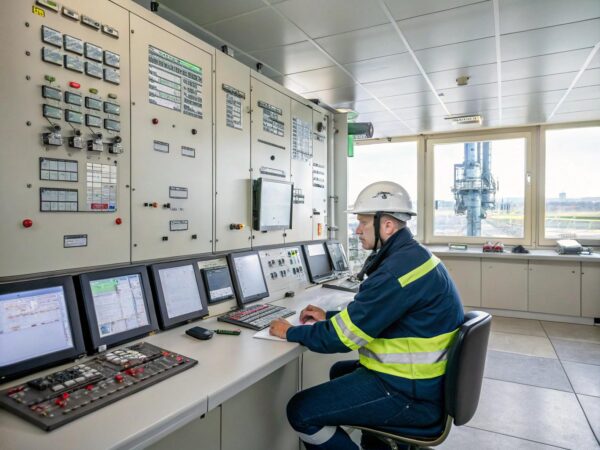

DCS Integration
For facilities using centralized automation systems, Genesis Controller communicates directly with plant Distributed Control Systems (DCS) through Ethernet.
This allows operators to monitor heat tracing performance alongside other plant processes, creating a fully integrated control environment.
Typical Applications
Genesis Controller is widely used in:
- Oil & Gas Processing
- LNG Facilities
- Refineries
- Petrochemical Plants
- Chemical Processing
- Offshore Platforms
- Power Generation
- Mining Operations
- Pharmaceutical Manufacturing
- Industrial Storage Terminals
- Utility Infrastructure
Technical Highlights
| Feature | Specification |
|---|---|
| Maximum Circuits | 18, 36, 54, or 72 |
| User Interface | 10.6-inch Glove-Touch TFT LCD |
| Temperature Sensors | Up to 20 RTDs per circuit |
| Supply Voltage | 100–240 VAC, 50/60 Hz |
| Heat Trace Voltage | 100–600 VAC |
| Communication | Ethernet |
| Protocol Support | Genesis Network / DCS Integration |
| Enclosure Rating | Type 4X / IP66 |
| Operating Temperature | -40°C to +60°C |
| Data Logging | Up to 6 Months |
Benefits
Installing Thermon Genesis Controller provides significant operational advantages:
- Centralized management of multiple heat trace circuits
- Improved plant reliability
- Faster fault identification
- Lower maintenance costs
- Reduced energy consumption
- Simplified commissioning
- Enhanced process safety
- Remote monitoring capabilities
- Scalable architecture for future expansion
- Long-term operational reliability
Why Choose Thermon Genesis Controller?
The Thermon Genesis Controller is one of the industry’s most advanced multi-circuit heat tracing control systems. Combining intelligent temperature control, comprehensive diagnostics, extensive alarm management, and seamless integration with the Genesis Network, it provides plant operators with complete visibility and control over their heat tracing assets.
Whether managing dozens or hundreds of heat trace circuits across a refinery, LNG terminal, chemical plant, or power station, Genesis Controller delivers a scalable, high-performance solution that improves safety, reliability, and operational efficiency.
