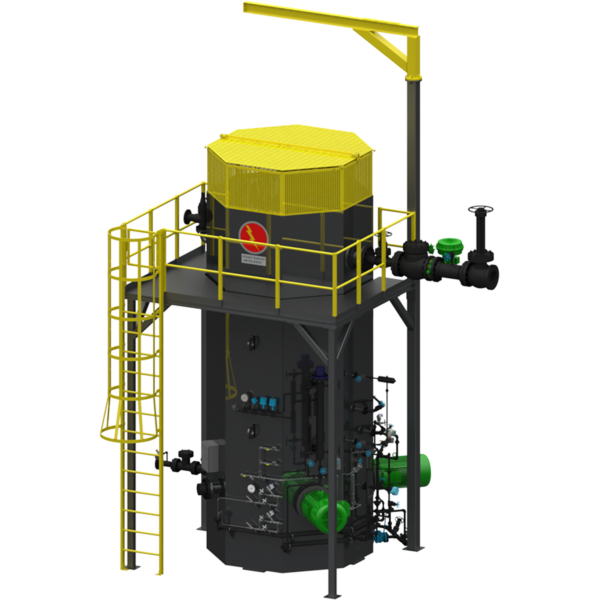

Industrial Electrode Boilers

Facility teams often lose time and energy waiting for a call for steam. Precision Boilers helps solve that problem by manufacturing electric and electrode boilers that deliver large volumes of high-quality steam quickly. This approach supports reliable steam availability when and where you need it

Built for demanding steam loads

The HVJ electrode boiler is well-suited as an auxiliary unit for power generation facilities and central steam plants. Designed for rapid response and dependable performance, our electrode boilers help facilities maintain consistent operation and reduce downtime tied to slow steam availability.

Thermon Precision Boilers offers advanced industrial electrode boilers for high-capacity steam generation in demanding industrial and commercial applications. The HVJ High Voltage Jet Electrode Boiler uses electrical energy and Jet-Flo® technology to generate steam efficiently while providing rapid response to changing steam loads.

With high electrical efficiency, flexible output control, and zero on-site combustion emissions, electrode boiler technology is an attractive solution for facilities seeking reliable steam generation, electrification, and reduced dependence on fossil fuels.

High Voltage Electrode Boiler Technology

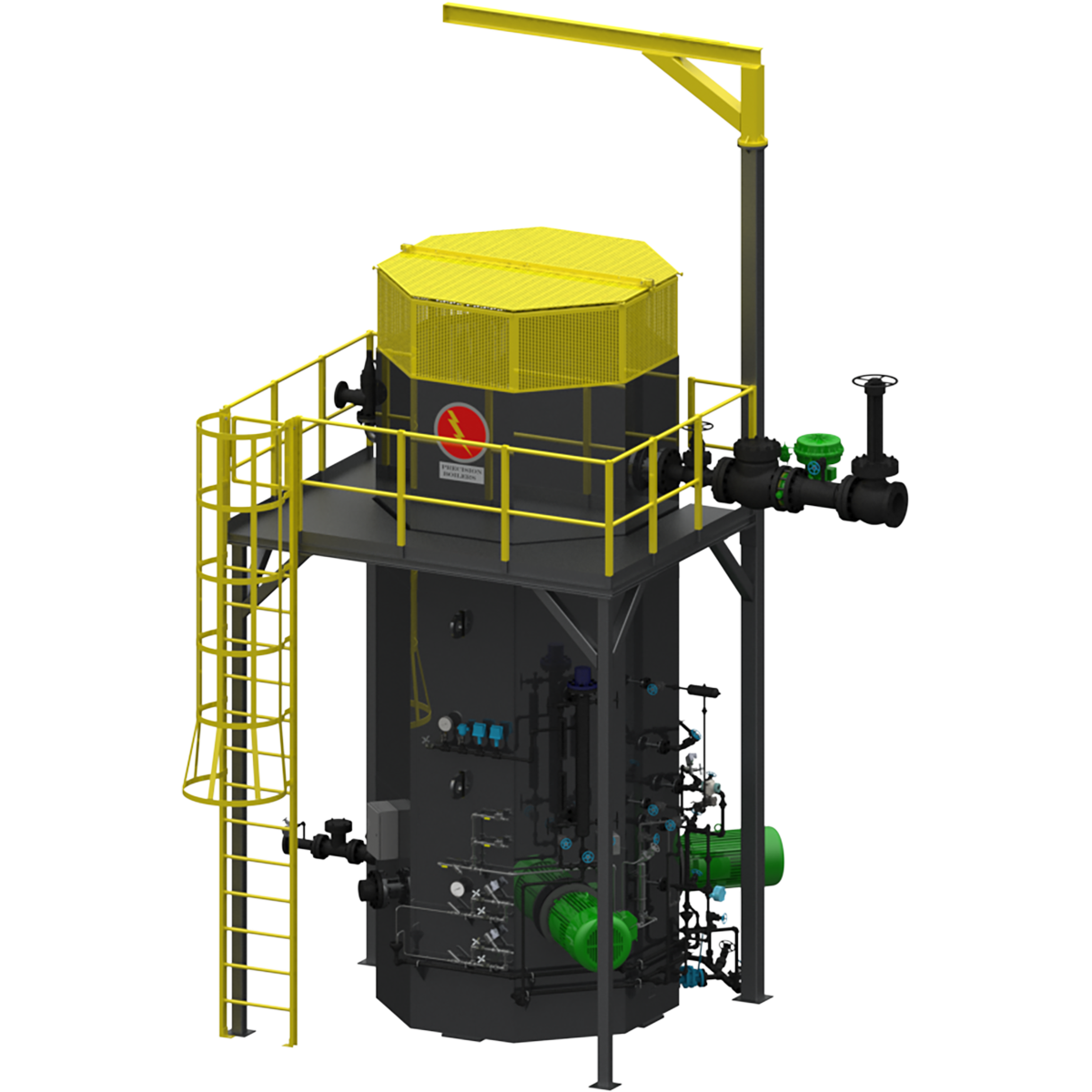

The Thermon HVJ High Voltage Jet Electrode Boiler is designed for large-scale steam generation using high-voltage electrical power.

Unlike conventional fuel-fired boilers, an electrode boiler does not burn fuel to produce steam. Electrical current passes through the boiler water, converting electrical energy directly into heat.

The HVJ utilizes Jet-Flo® technology to control the flow of water through the electrodes and regulate boiler output. This design enables rapid response to changing steam demand while maintaining stable boiler operation.

High Efficiency Steam Generation

Electrode boilers can convert electrical energy into thermal energy with very high efficiency.

The HVJ is designed to achieve greater than 99% efficiency, making it suitable for applications where efficient electrical steam generation is a priority.

Because there is no combustion process, electrode boilers also eliminate many of the requirements associated with conventional fuel-fired boilers, including combustion equipment and exhaust stacks.

High Capacity Electrode Steam Boilers

The HVJ electrode boiler is designed for high-capacity applications.

Depending on the configuration, the boiler can provide:

• Power ratings from 800 to 50,000 kW
• Steam production from approximately 2,700 to 167,000 PPH
• Operating pressures from 100 to 405 psi
• High-voltage electrical input from 4.16 to 15 kV

This broad operating range allows the HVJ to serve both large industrial steam systems and demanding power-generation applications.

Flexible Output Control

One of the key advantages of electrode boiler technology is its ability to respond quickly to changes in steam demand.

The HVJ provides 0–100% output control, allowing the boiler to adjust its steam production according to the process load.

The system can also achieve very low operating output, providing excellent turndown capability for facilities with variable steam demand.

This flexibility can help reduce unnecessary energy consumption and maintain more stable steam pressure throughout the process.

Rapid Response to Steam Demand

Industrial steam requirements can change rapidly. Conventional boilers may require time to adjust combustion systems and stabilize operating conditions.

The HVJ electrode boiler provides a rapid response to changing load conditions because heat is generated directly within the boiler water.

This makes electrode boilers particularly suitable for applications where steam demand fluctuates significantly or where fast response is important for process control.

No Fuel Combustion

The HVJ operates using electricity rather than natural gas, oil, or other combustion fuels.

As a result, the boiler does not require conventional combustion equipment or a flue gas exhaust system.

Key benefits include:

• No fuel combustion
• No on-site combustion emissions
• No burner system
• No combustion air system
• No stack required
• Compact installation compared with many conventional boiler systems

This makes high-voltage electrode boilers an attractive option for facilities pursuing electrification strategies.

Zero On-Site Combustion Emissions

Because the HVJ does not burn fuel, it produces zero on-site combustion emissions.

For facilities seeking to reduce local emissions or transition away from fossil-fuel combustion, an electric electrode boiler can provide an effective alternative to conventional fuel-fired steam generation.

The overall environmental impact will depend on the electricity source used to power the boiler. When supplied by low-carbon or renewable electricity, electrode boilers can significantly support broader decarbonization objectives.

High Steam Quality

The HVJ is designed to provide high-quality steam suitable for demanding industrial applications.

Depending on operating conditions and water treatment, the system can achieve steam purity of up to 99.95%.

Proper boiler-water treatment and blowdown control remain important for maintaining steam quality and reliable long-term operation.

Industrial Electrode Boiler Applications

High-voltage electrode boilers are particularly suitable for facilities requiring large quantities of reliable steam.

Typical applications include:

Power Generation

Electrode boilers can provide high-capacity steam for power-generation facilities and utility systems.

Their high output capability and rapid load response make them suitable for large steam networks.

Process Steam

Manufacturing facilities often require continuous process steam for heating, drying, sterilization, evaporation, and other industrial processes.

An electrode boiler can provide a controllable and reliable source of process steam without on-site fuel combustion.

Pharmaceutical Manufacturing

Pharmaceutical processes can require controlled and reliable steam generation.

Electrode boilers can provide high-quality steam for process heating, sterilization, and facility utility systems.

Healthcare Facilities

Hospitals and healthcare facilities use steam for sterilization, humidification, heating, and other utility requirements.

Electric steam generation can be particularly attractive where reliable steam is required without introducing combustion equipment into the facility.

Brewery and Distillation

Breweries and distilleries use steam for heating, production, cleaning, and distillation processes.

An electrode boiler can provide responsive steam generation to match changing production requirements.

Paper Processing

Paper manufacturing processes can require substantial quantities of steam for drying and process heating.

High-capacity electrode boilers can provide the steam required for large industrial operations.

Advantages of Electrode Boilers

Compared with conventional fuel-fired steam boilers, high-voltage electrode boilers can offer several advantages:

• High efficiency – More than 99% electrical-to-thermal efficiency
• Fast response – Rapid adjustment to changing steam loads
• Flexible control – 0–100% output control
• High capacity – Suitable for large industrial steam requirements
• No combustion – Eliminates fuel-burning equipment
• Zero on-site combustion emissions
• No stack required
• Compact system design
• Low mechanical complexity
• Suitable for electrification projects

Electrode Boiler vs. Fuel-Fired Boiler

The choice between an electrode boiler and a conventional fuel-fired boiler depends on the site’s energy infrastructure and operating objectives.

An electrode boiler can be particularly attractive when:

• High-voltage electrical power is available
• Steam demand is large and variable
• Fast load response is required
• Local combustion emissions must be minimized
• The facility is pursuing electrification
• Renewable or low-carbon electricity is available
• Space for combustion equipment and exhaust systems is limited

Fuel-fired boilers may remain appropriate where electricity costs are high, electrical infrastructure is limited, or fuel is readily available and economically favorable.

High Voltage Steam Boiler for Electrification

Industrial electrification is becoming increasingly important as facilities look for ways to reduce fossil-fuel consumption and improve energy efficiency.

The HVJ provides a high-capacity electric alternative to conventional steam boilers. When connected to a low-carbon electricity supply, electrode boiler technology can help facilities reduce their dependence on fossil fuels for steam generation.

The ability to modulate output rapidly also makes electrode boilers suitable for integration with electrical systems where power availability and steam demand can change over time.

Reliable Industrial Steam Generation

Thermon’s HVJ High Voltage Jet Electrode Boiler combines high-capacity steam generation with efficient electrical heating and responsive output control.

With capacities reaching 50 MW and steam production up to approximately 167,000 PPH, the HVJ is designed for demanding industrial and utility applications.

Its high efficiency, compact design, lack of combustion equipment, and flexible operation make it a strong solution for facilities looking for modern industrial electric steam boilers.

Choosing the Right Electrode Boiler

When selecting an industrial electrode boiler, engineers should consider:

• Required steam capacity
• Operating pressure
• Steam quality requirements
• Available electrical voltage
• Available electrical capacity
• Steam demand profile
• Required turndown
• Water quality and treatment
• Installation space
• Control requirements
• Existing steam distribution system
• Electrification and sustainability objectives

Proper evaluation of these factors helps ensure the boiler is correctly sized and configured for the application.

Thermon HVJ High Voltage Jet Electrode Boiler

The Thermon HVJ High Voltage Jet Electrode Boiler provides a high-performance solution for facilities requiring large-scale electric steam generation.

With greater than 99% efficiency, 0–100% output control, rapid response, high steam capacity, and zero on-site combustion emissions, the HVJ is designed to meet the requirements of modern industrial steam systems.

From power generation and pharmaceutical manufacturing to breweries, distilleries, healthcare, and process industries, Thermon Precision Boilers provides electrode boiler technology for reliable and efficient steam generation.

Contact Thermon to discuss your steam requirements and determine the right high-voltage electrode boiler configuration for your application.
