Industrial Steam Boilers
Thermon’s Precision Boilers steam boiler portfolio provides reliable, high-quality steam generation for commercial, institutional, and industrial applications. The product range includes electric steam boilers, high-pressure electric steam boilers, and fuel-fired steam boilers, giving engineers and facility operators flexible options for different steam requirements and site utilities.
Designed for dependable operation and consistent steam production, these industrial steam boilers can support process heating, space heating, humidification, sterilization, and other demanding applications.
Electric and Fuel-Fired Steam Boiler Solutions
Thermon offers steam boiler solutions designed to match different operating requirements, energy sources, and pressure conditions.
The portfolio includes:
- ST Electric Steam Boiler – A packaged electric resistance steam boiler designed for reliable steam generation across commercial and industrial facilities.
- STH Electric High-Pressure Steam Boiler – Designed for high-pressure process applications requiring steam pressures above 200 psi.
- FPS Vertical Firetube Steam Boiler – A fuel-fired vertical firetube steam boiler for applications where natural gas or other fuel sources are preferred.
This combination allows customers to select an appropriate steam boiler system based on steam capacity, operating pressure, available utilities, installation requirements, and overall project objectives.
Electric Steam Boilers
Electric steam boilers provide an efficient alternative to conventional combustion-based steam generation where electrical power is available.

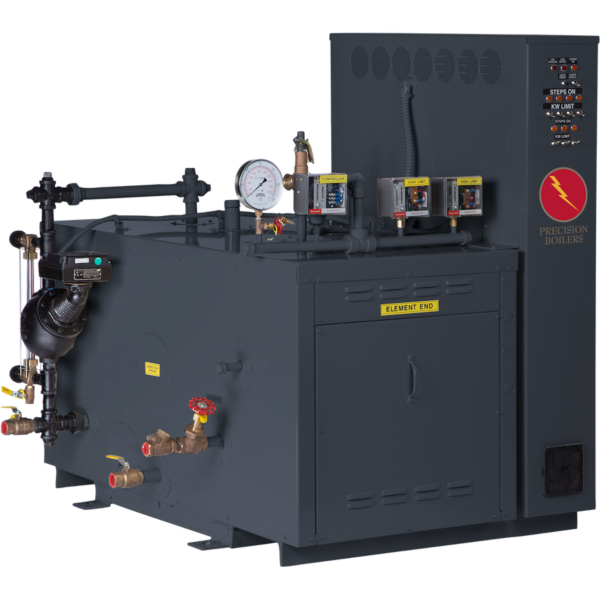

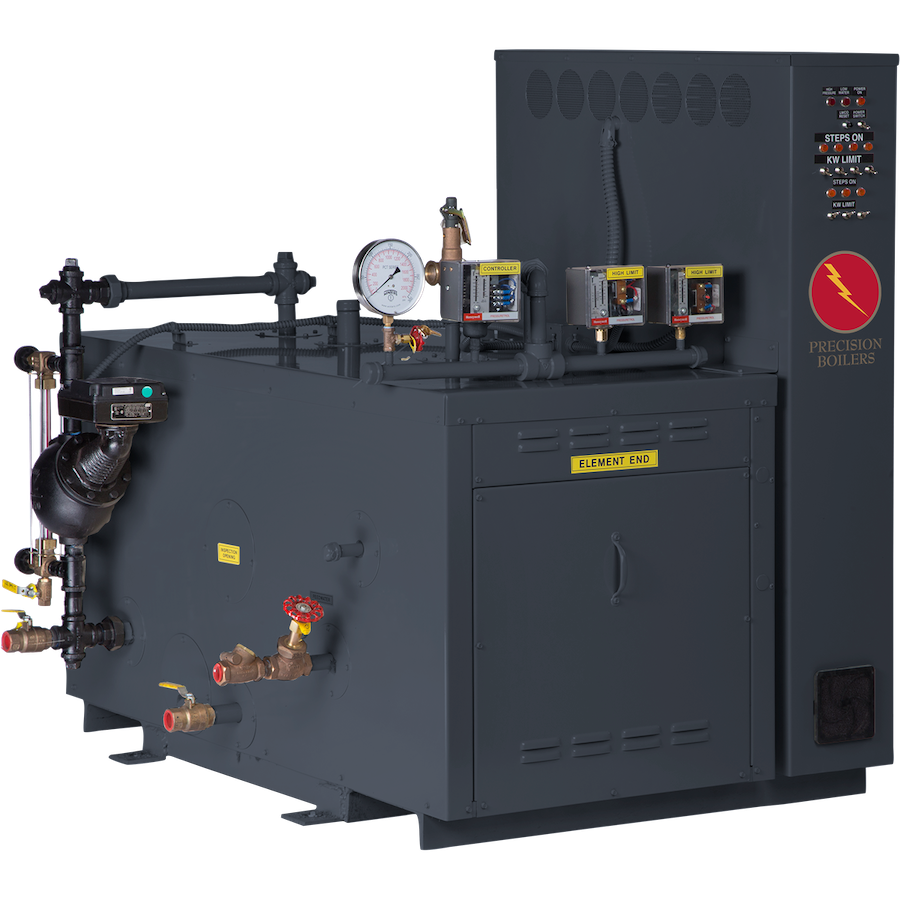

Thermon’s ST Electric Steam Boiler is designed for on-demand steam production and uses staged heating element control to maintain steam pressure as load conditions change. The ST series is available across a broad range of capacities and operating pressures, making it suitable for a variety of industrial and commercial applications.
Electric boiler technology can also support facility electrification and decarbonization initiatives by reducing reliance on fossil-fuel combustion at the point of steam generation.
High-Pressure Steam Boilers

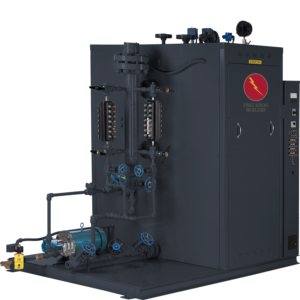

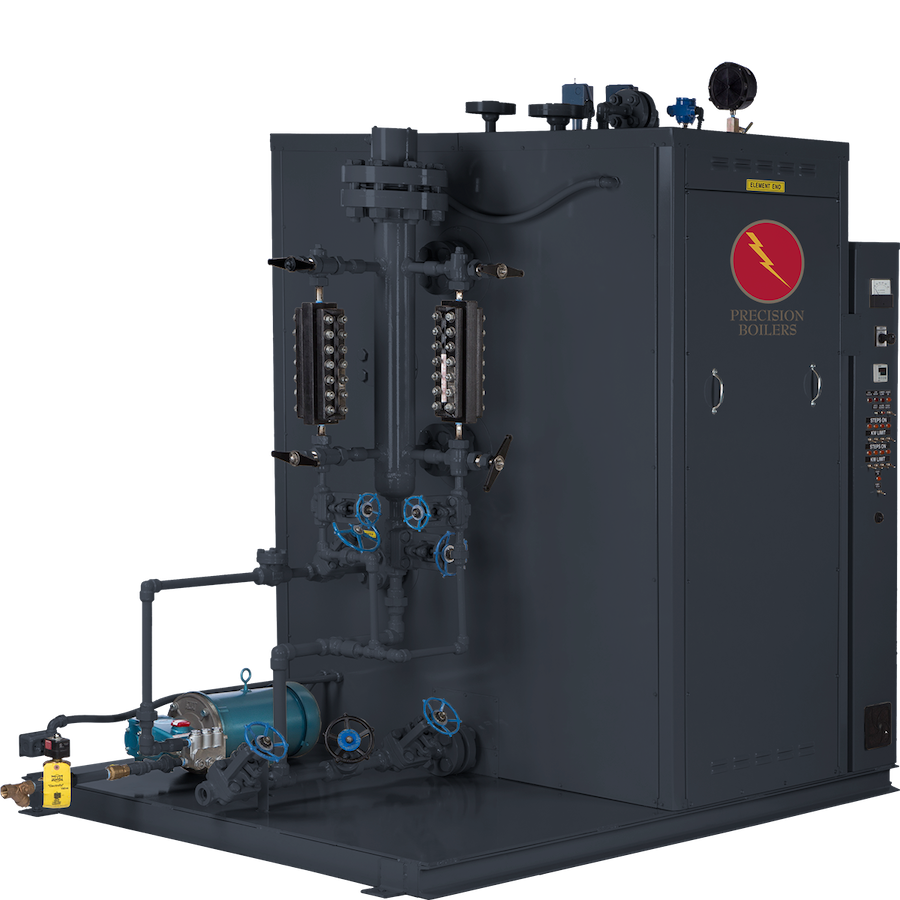

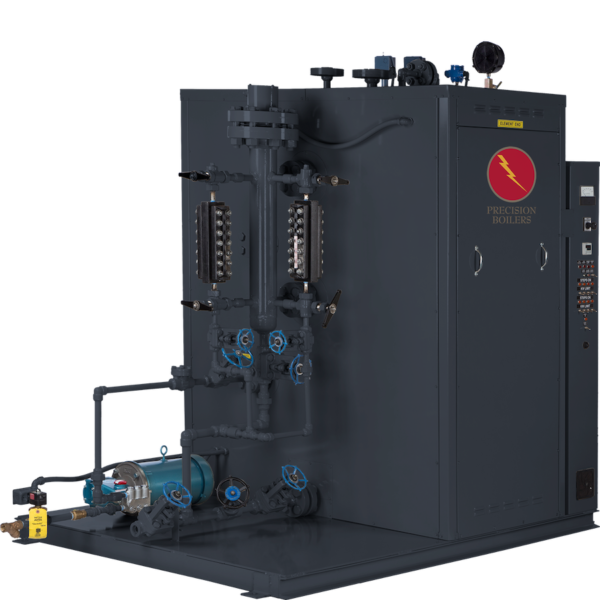

For demanding industrial processes, Thermon offers the STH Electric High-Pressure Steam Boiler.
The STH series is designed for process steam applications requiring pressures above 200 psi. It can provide steam pressures up to 2,500 psi, with capacities up to 6,000 PPH and power ratings up to 1,800 kW, depending on the selected configuration.
Its compact design and optional SCR control provide flexibility for facilities with variable steam demand and electrical loads.
Fuel-Fired Steam Boilers

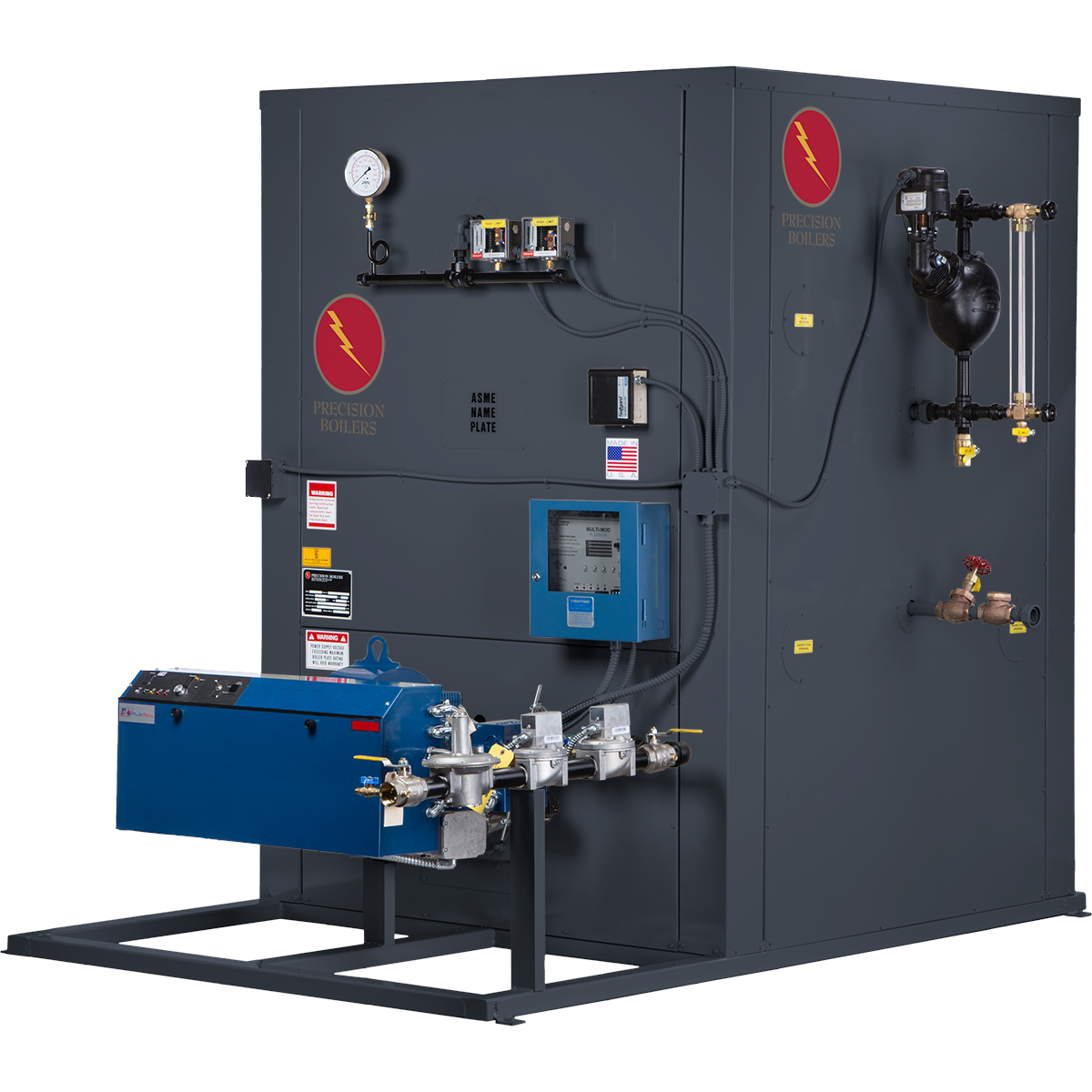

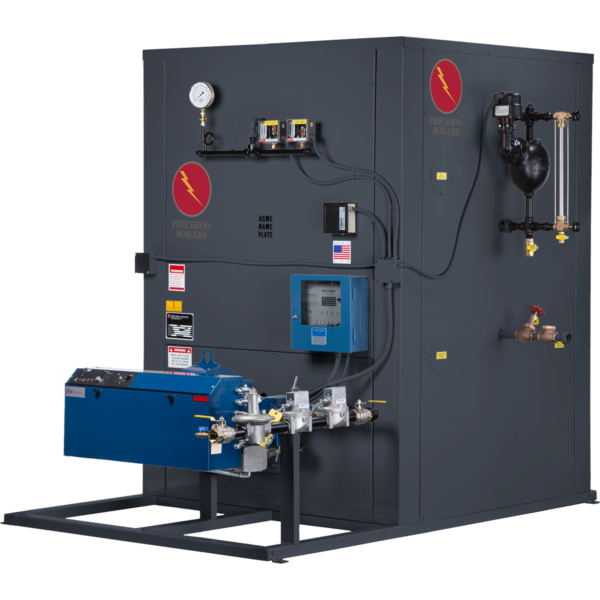

Where natural gas or other fuels are the preferred energy source, Thermon’s FPS Vertical Firetube Steam Boilerprovides a fuel-fired steam generation solution.
Fuel-fired steam boilers can be used for industrial process steam, building heating, and other applications where combustion-based steam generation is appropriate. The vertical firetube configuration provides a compact boiler arrangement for facilities with specific space and utility requirements.
Industrial Steam Boiler Applications
Thermon steam boilers are suitable for a wide range of commercial and industrial applications, including:
Process Steam
Steam boilers can provide dependable process steam for manufacturing and industrial operations where controlled and continuous steam generation is essential.
Sterilization
High-quality steam is widely used for sterilization processes in healthcare, pharmaceutical, laboratory, and other controlled environments.
Humidification
Steam generation systems can provide controlled humidification for buildings, manufacturing facilities, and process environments.
Space and Hydronic Heating
Steam boilers can support building heating systems and hydronic heating applications in commercial and institutional facilities.
Power Generation Support
Steam generation can also support power-generation and utility-related applications where reliable process steam is required.
Packaged Steam Boiler Systems
For projects requiring simplified installation and commissioning, Thermon can provide packaged boiler solutions designed around the specific requirements of the facility.
A packaged steam boiler system can help reduce field installation work, simplify equipment integration, and improve startup consistency. Complete boiler-room solutions may also incorporate supporting equipment such as feedwater systems, condensate return systems, deaerators, blowdown equipment, storage tanks, and other accessories.
Why Choose Thermon Steam Boilers?
Thermon’s Precision Boilers portfolio combines steam generation technology with engineering expertise and application-specific solutions.
Key advantages include:
- Electric and fuel-fired steam boiler options
- Solutions for low- and high-pressure steam applications
- Wide range of steam capacities and operating conditions
- Reliable steam generation for industrial and commercial facilities
- Options supporting electrification and decarbonization
- Packaged boiler system solutions
- Application-specific engineering and configuration
- Support for demanding process and facility heating applications
Selecting the Right Industrial Steam Boiler
Choosing the correct steam boiler requires consideration of several factors, including:
- Required steam capacity
- Operating and design pressure
- Steam quality requirements
- Available electrical power
- Available fuel supply
- Daily and seasonal steam demand
- Installation space
- Control requirements
- Energy-efficiency objectives
- Emissions and sustainability requirements
Thermon can help evaluate these requirements and recommend a steam boiler configuration suited to the application’s operating conditions and project objectives.
Reliable Steam Generation for Industrial Applications
Whether you need an electric steam boiler, high-pressure steam boiler, or fuel-fired steam boiler, Thermon’s Precision Boilers portfolio provides flexible solutions for reliable steam generation.
From process steam and sterilization to humidification, heating, and power-related applications, Thermon can provide steam boiler technology and engineered solutions designed around your facility’s specific requirements.
Contact Thermon to discuss your steam requirements and find the right industrial steam boiler solution for your application.
