Crane D103B 3-Port Control Valve
Compact PN16 3-Port Control Valve for HVAC Heating & Chilled Water Systems

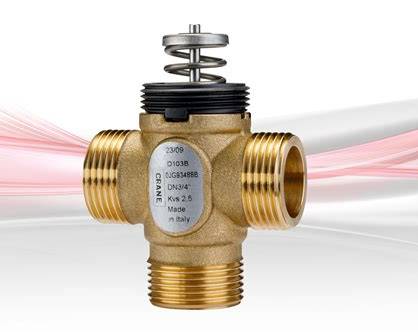

The Crane Fluid Systems D103B is a 3-port control valve designed for precise flow control in variable flow and constant flow HVAC systems. Engineered for compact installation, the D103B provides an ideal solution for terminal bypass, zone control, and end-of-line bypass applications in heating and chilled water systems. Manufactured in Europe to high engineering standards, the valve delivers reliable Class IV shut-off performance and seamless integration with Crane electric actuators for Building Management System (BMS) control.
Key Features
- 3-port control valve
- Compact and lightweight brass body
- Pressure rating: PN16
- Size range: ½” – ¾”
- BSP Male Parallel thread (ISO 228)
- Operating temperature: 5°C to 95°C
- Normally Closed (NC) valve design
- Class IV leakage up to 225 kPa
- Suitable for heating and chilled water systems
- Compatible with up to 30% glycol solutions
- Easy actuator mounting using M30 × 1.5 connection
- Manufactured in Europe for consistent quality.
Benefits
Optimized Flow Control
The D103B provides accurate mixing and diverting control for heating and cooling systems, maintaining stable temperatures while improving system efficiency. Its 3-port design is particularly suitable for bypass arrangements that maintain circulation during reduced demand.
Compact Installation
The valve’s small footprint allows installation directly on terminal units such as fan coil units (FCUs), chilled beams, and other HVAC equipment where installation space is limited.
Reliable Shut-Off
Designed with Class IV leakage performance, the D103B provides dependable isolation during closed operation, helping improve system control accuracy and reduce energy losses.
Easy BMS Integration

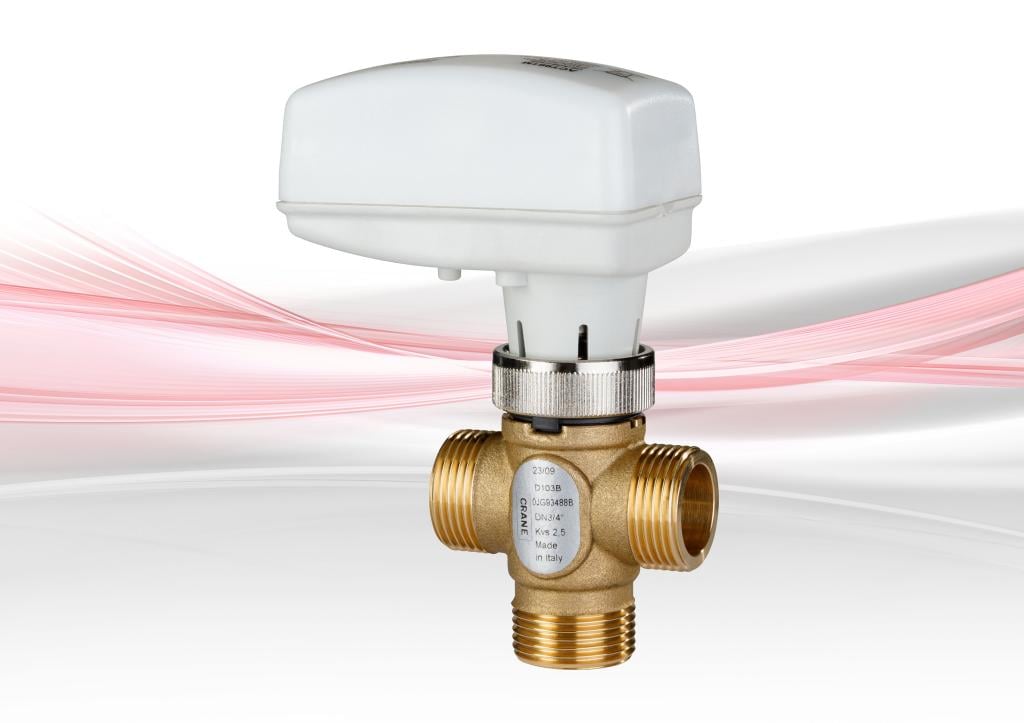

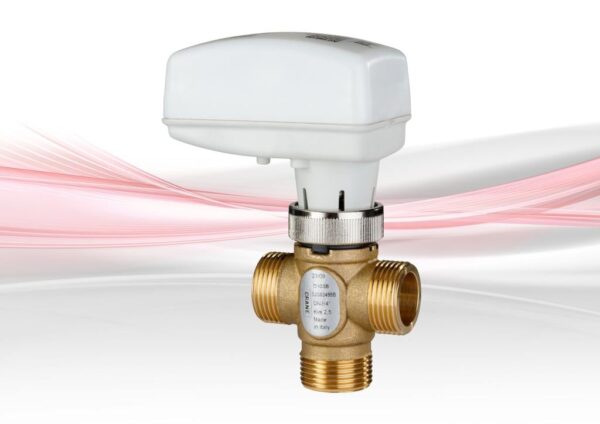

The D103B is designed to work seamlessly with Crane actuators, including:
- ACT992TH Thermic Actuator (On/Off control)
- ACT991M Modulating Actuator (0–10 V control)
This combination enables simple integration into Building Management Systems for automated HVAC control.
Energy-Efficient HVAC Operation
By maintaining water circulation through terminal bypass or end-of-line bypass arrangements, the D103B helps reduce pump cycling, improve water treatment circulation, and enhance heating or cooling response times while lowering overall energy consumption.
Typical Applications
The Crane D103B is widely used in:
- Fan Coil Units (FCUs)
- Air Handling Units (AHUs)
- Chilled water systems
- Heating water systems
- Variable flow HVAC systems
- Constant flow HVAC systems
- Terminal bypass applications
- End-of-line bypass systems
- Commercial office buildings
- Hotels
- Hospitals
- Schools and universities
- Building Management Systems (BMS).
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Crane Fluid Systems |
| Model | D103B |
| Product Type | 3-Port Control Valve |
| Valve Design | Normally Closed |
| Size Range | ½” – ¾” |
| Pressure Rating | PN16 |
| Temperature Range | 5°C to 95°C |
| End Connection | BSP Male Parallel ISO 228 |
| Connection Thread | M30 × 1.5 (Actuator Mounting) |
| Leakage Class | Class IV (up to 225 kPa) |
| Compatible Medium | Water / Water-Glycol (up to 30%) |
| Kvs Range | 0.25 – 2.5 m³/h |
| Applications | Heating & Chilled Water HVAC Systems |
Compatible Actuators
The D103B is compatible with the following Crane Fluid Systems actuators:
| Actuator | Control Type |
|---|---|
| ACT992TH | Thermic On/Off |
| ACT991M | Modulating 0–10 V |
These actuator combinations provide flexible control solutions ranging from simple zone control to fully modulating BMS automation.
Product Attributes
| Attribute | Value |
|---|---|
| Brand | Crane Fluid Systems |
| Model | D103B |
| Product Type | 3-Port Control Valve |
| Valve Function | Mixing / Diverting |
| Valve Design | Normally Closed |
| Body Material | Brass |
| Plug Material | PPS (Polyphenylene Sulfide) |
| Stem Material | Stainless Steel |
| Seat Leakage | Class IV |
| Pressure Rating | PN16 |
| Temperature Range | 5°C to 95°C |
| Kvs Range | 0.25 – 2.5 m³/h |
| Connection Type | BSP Male Parallel ISO 228 |
| Actuator Connection | M30 × 1.5 |
| Compatible Actuators | ACT991M, ACT992TH |
| Medium | Water, Water-Glycol (up to 30%) |
| Applications | HVAC, FCU, AHU, Zone Control, Terminal Bypass |
| Country of Brand | United Kingdom |
Why Choose the Crane D103B?
The Crane D103B combines compact dimensions, reliable Class IV shut-off, and precise flow control in a versatile 3-port valve suitable for modern HVAC systems. Its compatibility with Crane’s thermic and modulating actuators enables straightforward integration into Building Management Systems, while its robust PN16 construction and glycol compatibility ensure dependable operation in both heating and chilled water applications. Whether used for terminal bypass, end-of-line bypass, or zone control, the D103B provides efficient hydronic control with reduced installation space and improved energy performance.
