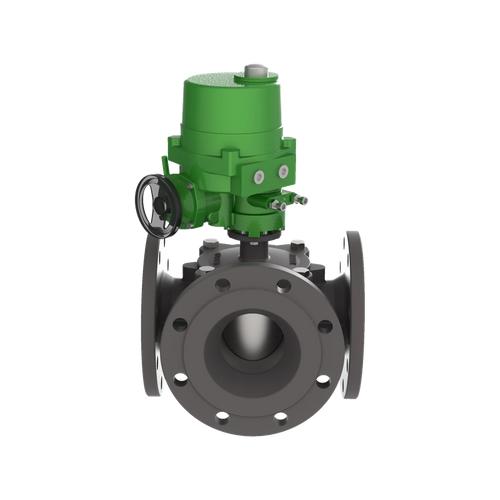

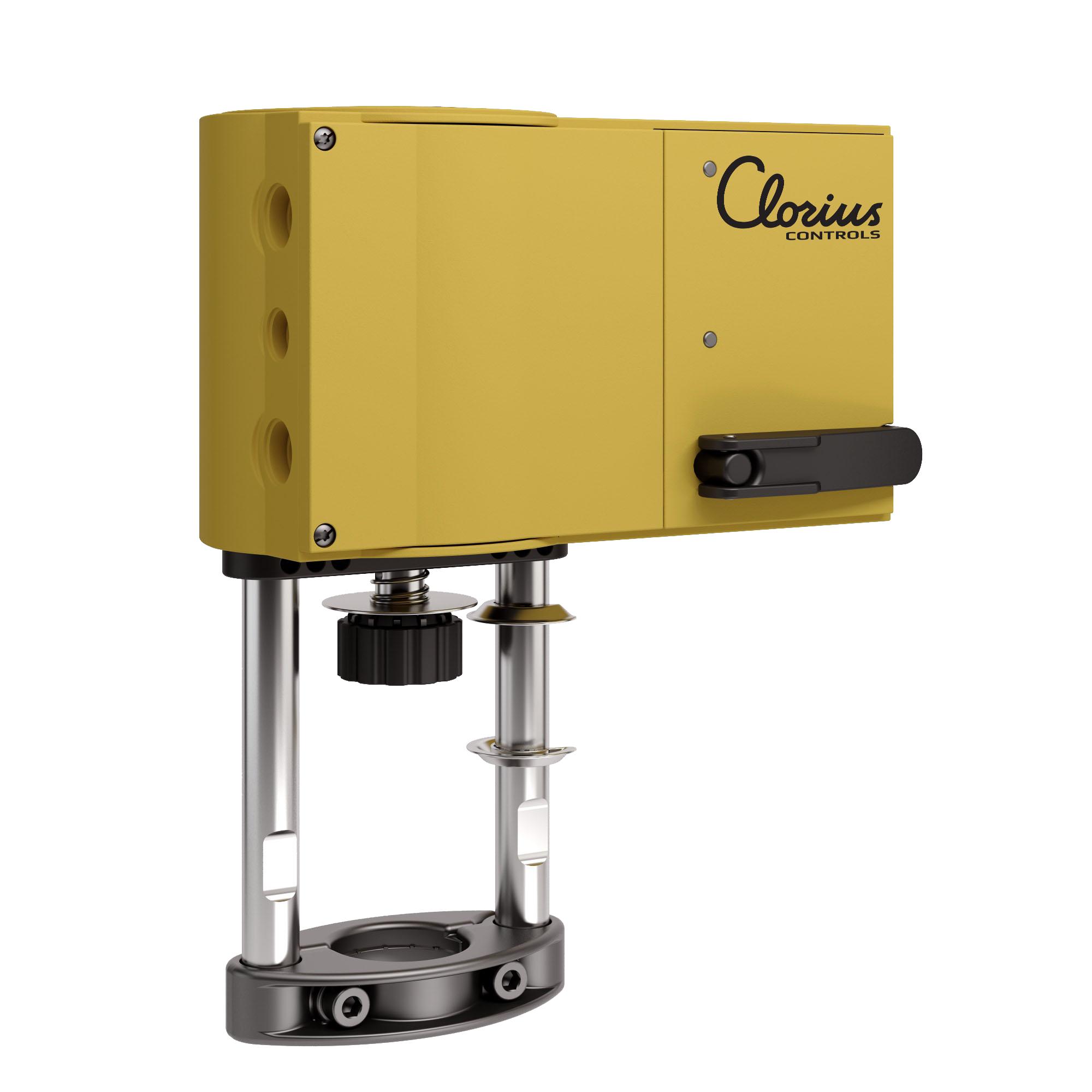

Clorius CAR-H Series Rotary Electric Actuator

Heavy-Duty Quarter-Turn Electric Actuator for Industrial and Marine Valve Automation

The Clorius CAR-H Series is a heavy-duty quarter-turn electric actuator engineered for reliable automation of rotary valves operating in demanding industrial and marine environments. Designed specifically to withstand low-frequency vibration, the CAR-H actuator is widely used for controlling butterfly valves, ball valves, plug valves, and Clorius rotary 2-way and 3-way control valves in cooling water, seawater, lubricating oil, and industrial process systems. Its rugged construction, self-locking worm gear, and IP67 enclosure ensure dependable long-term operation under harsh conditions.

---

Key Features

• Quarter-turn electric actuator (90° rotation)
• Designed for marine and industrial environments
• Suitable for butterfly, ball and plug valves
• Compatible with Clorius rotary valve series:
  • L3FM-T
  • M3FM-T
  • G3FM-T
  • S3FM-T
  • H3FM-T
  • TM double-slide valves
• Torque range from 60 Nm to 2500 Nm
• Available with:
  • ON/OFF control
  • 3-point floating control
  • Modulating control (PCU)
• Supports 0–10 V and 4–20 mA analog signals (PCU version)
• Self-locking double worm gear
• External handwheel for manual override
• Built-in thermal motor protection
• Continuous valve position indicator
• IP67 protection (IP68 optional)
• Ex-proof versions available for hazardous areas.

---

Benefits

Designed for Harsh Marine Environments

The CAR-H Series was developed specifically for installations exposed to strong vibration, humidity, and corrosive conditions. It is widely installed on main and auxiliary engine cooling systems aboard commercial vessels and offshore facilities.

High Torque Performance

Available in multiple actuator sizes, the CAR-H Series provides output torque from 60 Nm up to 2500 Nm, enabling operation of both small control valves and large butterfly or ball valves.

Maintenance-Free Self-Locking Gearbox

The precision-machined double worm gear is permanently lubricated and self-locking, preventing reverse movement caused by valve torque while minimizing maintenance requirements.

Reliable Motor Protection

Each actuator incorporates built-in thermal protection that disconnects the motor in case of overheating and automatically resets after cooling, improving operational safety and extending service life.

Flexible Automation

Depending on the selected model, the actuator supports simple ON/OFF operation, floating 3-point control, or fully modulating control with analog command and feedback signals for integration with PLC, DCS, and SCADA systems.

---

Typical Applications

The Clorius CAR-H Series is suitable for:

• Marine engine cooling systems
• Fresh water cooling circuits
• Seawater cooling systems
• Lubricating oil systems
• Industrial process control
• Water treatment plants
• Power generation
• Chemical processing
• Offshore platforms
• Industrial utility systems.

• Technical Specifications

  Specification	Value
  Product Series	CAR-H
  Product Type	Quarter-Turn Electric Actuator
  Rotation Angle	90° ±5°
  Output Torque	60–2500 Nm
  Power Supply	110/230 VAC ±10%, 24 VAC/DC (selected models)
  Control Mode	ON/OFF, 3-Point, Modulating (PCU)
  Analog Input	0–10 V, 4–20 mA (PCU Version)
  Analog Feedback	0–10 V, 4–20 mA
  Protection Class	IP67 (IP68 Optional)
  Ambient Temperature	-20°C to +60°C
  Duty Cycle	S2 (ON/OFF), S4 (Modulating)
  Gearbox	Double Worm Gear, Self-Locking
  Manual Override	External Handwheel
  Thermal Protection	Integrated
  Housing Material	Hard Anodized Aluminium Casting
  External Finish	Epoxy Powder Coating (RAL6018 Green)
  Compatible Valves	Butterfly, Ball, Plug & Clorius Rotary Valves

  Why Choose the Clorius CAR-H Series?

  The Clorius CAR-H Series is engineered for applications where durability, torque, and reliability are critical. Its heavy-duty aluminium housing, self-locking gearbox, built-in thermal protection, and flexible control options make it an ideal actuator for demanding marine and industrial installations. Whether operating cooling water, seawater, lubricating oil, or process fluid systems, the CAR-H Series delivers dependable valve automation with minimal maintenance and long service life.
