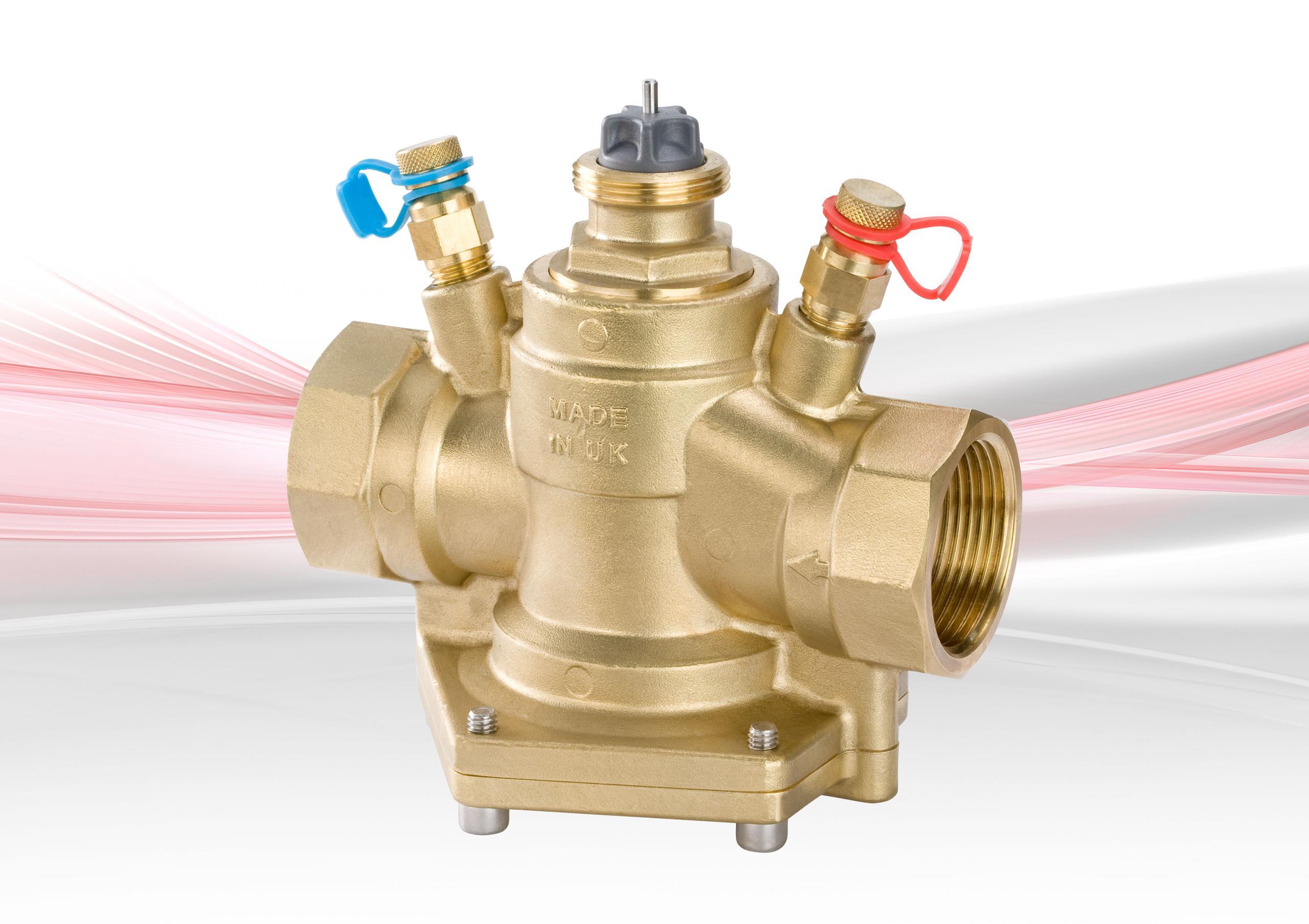

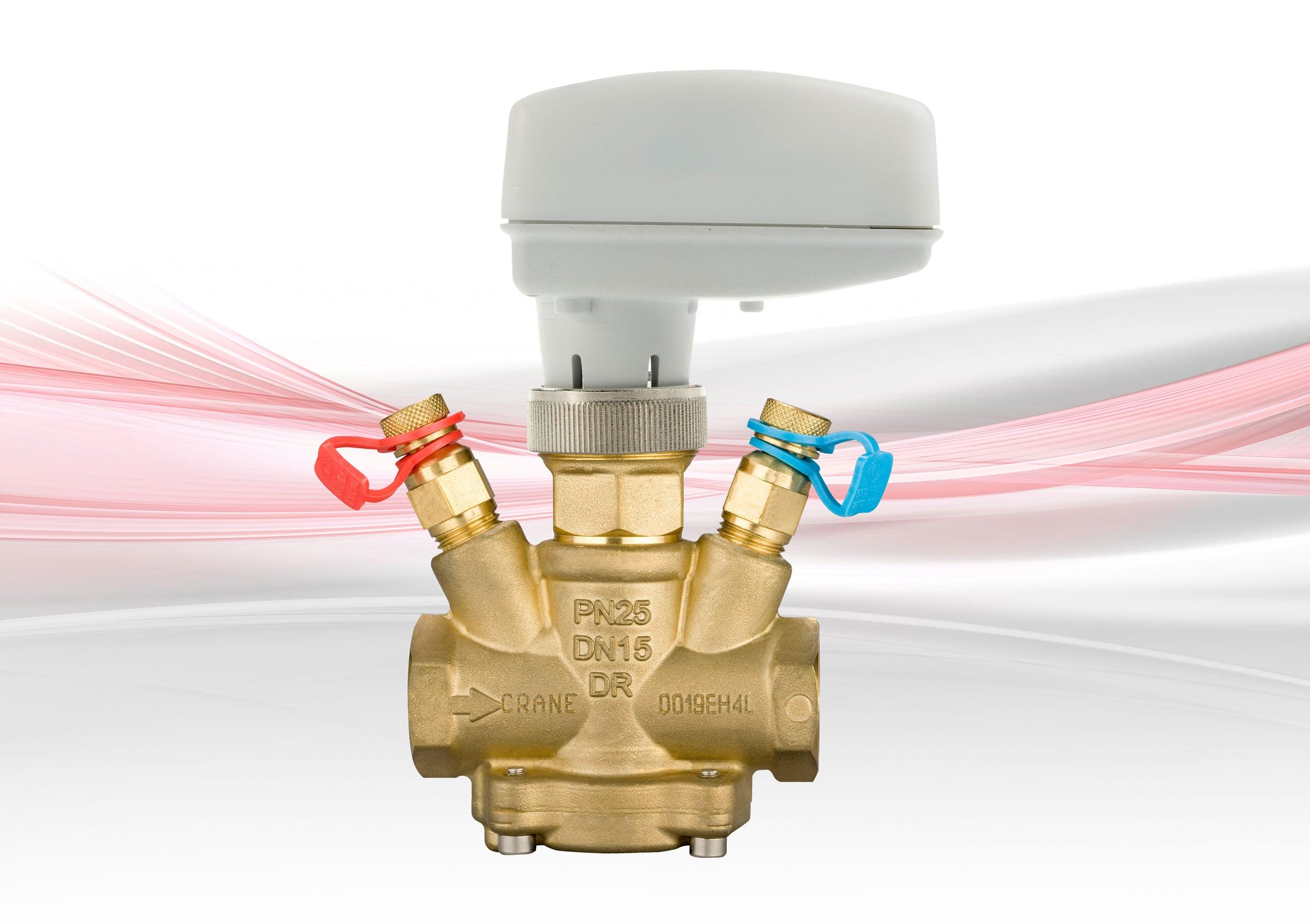

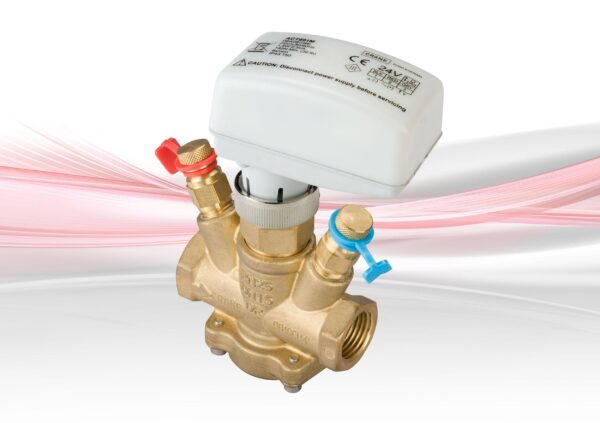

Crane D995 Pressure Independent Control Valve (PICV)
Precision Flow Control for High-Efficiency HVAC Systems
The Crane Fluid Systems D995 Pressure Independent Control Valve (PICV) is a next-generation balancing and control valve designed to provide precise hydronic flow regulation in variable flow heating and chilled water systems. By combining differential pressure control, flow balancing, and modulating control into a single compact valve, the D995 simplifies system commissioning while maximizing energy efficiency and occupant comfort.
Developed as part of Crane’s Peak Pro PICV series, the D995 offers an extended flow range compared with previous generations, enabling engineers to select smaller valve sizes without compromising system performance. This results in lower installation costs, reduced plant space requirements, and improved hydraulic stability.
Key Features
- Pressure Independent Control Valve (PICV)
- Combines balancing valve and modulating control valve in one body
- Wide differential pressure operating range (up to 800 kPa depending on model)
- Extended flow capacity for compact system design
- Class IV leakage for excellent shut-off performance
- Integral pressure test points for easy commissioning
- Compact and lightweight construction
- Built-in convoluted diaphragm for long service life
- Factory performance tested to BSRIA BTS01
- Pressure tested according to BS EN 12266-1
- Designed for heating and chilled water HVAC applications
Applications
The Crane D995 is ideal for:
- Fan Coil Units (FCU)
- Air Handling Units (AHU)
- Chilled Beams
- Variable Air Volume (VAV) systems
- Commercial office buildings
- Hotels
- Hospitals
- Universities
- Data Centers
- District cooling and heating systems
Benefits
Stable Flow Performance
The integrated pressure regulator automatically maintains the preset flow regardless of pressure fluctuations throughout the HVAC network, ensuring consistent coil performance.
Faster Commissioning
Integrated measuring ports allow engineers to verify pressure differential and valve operation without installing additional balancing devices.
Reduced Energy Consumption
By maintaining stable flow and allowing pumps to operate at optimized speeds, the D995 contributes to lower pumping energy and improved overall building efficiency.
Compact Installation
The lightweight body and smaller dimensions simplify installation in ceiling voids, fan coil units, and other confined plant spaces.
Long Service Life
Each valve undergoes extensive endurance testing, including 10,000 operating cycles—equivalent to approximately 15 years of normal HVAC operation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Crane Fluid Systems |
| Model | D995 |
| Product Type | Pressure Independent Control Valve (PICV) |
| Valve Sizes | DN15–DN50 (depending on version) |
| Pressure Rating | PN25 (DN15–DN25), PN16 (DN32–DN50) |
| Flow Range | 0.008–3.80 l/s (depending on size) |
| Operating Temperature | 0°C to 90°C |
| Differential Pressure | Up to 800 kPa (model dependent) |
| Leakage Class | Class IV |
| Body Material | DZR Brass (DN15–DN32), Bronze (DN40–DN50) |
| End Connection | BSP Female Taper to BS EN 10226-2 |
| Test Standard | BS EN 12266-1 |
| Performance Standard | BSRIA BTS01 |
| Application | Heating & Chilled Water HVAC Systems |
Why Choose Crane D995?
The Crane D995 delivers accurate flow regulation, simplified commissioning, and outstanding energy performance in one integrated valve. Its wide operating range, compact footprint, and proven reliability make it an excellent solution for modern HVAC systems where efficiency, controllability, and lifecycle cost are critical.
