Description

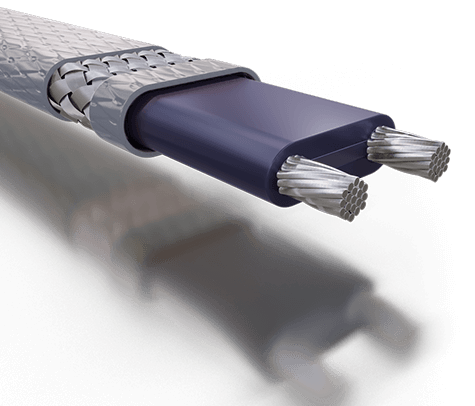

Thermon KSX™ Self-Regulating Heating Cable
High-Performance Heat Tracing for High Heat Loss Applications
The Thermon KSX™ is a premium self-regulating electric heat tracing cable specifically engineered for high heat loss freeze protection and process temperature maintenance in demanding industrial environments. Designed for applications where steam cleaning is not required, KSX delivers higher power output than standard self-regulating heating cables while maintaining exceptional energy efficiency and long-term reliability.
Unlike constant wattage heating cables, KSX continuously adjusts its heat output according to the surrounding temperature. As ambient temperatures decrease or heat loss increases, the cable automatically produces more heat. When temperatures rise, the thermal output decreases accordingly, reducing energy consumption and preventing overheating.
Key Features
- Self-regulating heating technology
- Designed for high heat loss applications
- Ideal for freeze protection and process temperature maintenance
- Continuous exposure temperature up to 121°C (250°F)
- Available outputs:
- 15 W/ft (49 W/m)
- 20 W/ft (66 W/m) (North America)
- 230–240 VAC operation
- Safe to overlap during installation
- Fluoropolymer insulated construction for excellent chemical resistance
- Tinned copper braid provides mechanical protection and grounding
- Suitable for ordinary and hazardous industrial locations when installed according to applicable approvals
- Long service life with low maintenance requirements
Typical Applications
KSX is widely used in industrial facilities where higher heat output is required, including:
- Oil & Gas Processing
- Petrochemical Plants
- Chemical Processing
- Refineries
- Storage Tanks
- Long Process Pipelines
- Utility Systems
- Power Generation Facilities
- Instrument and Sample Lines
- Water & Wastewater Treatment
Cable Construction

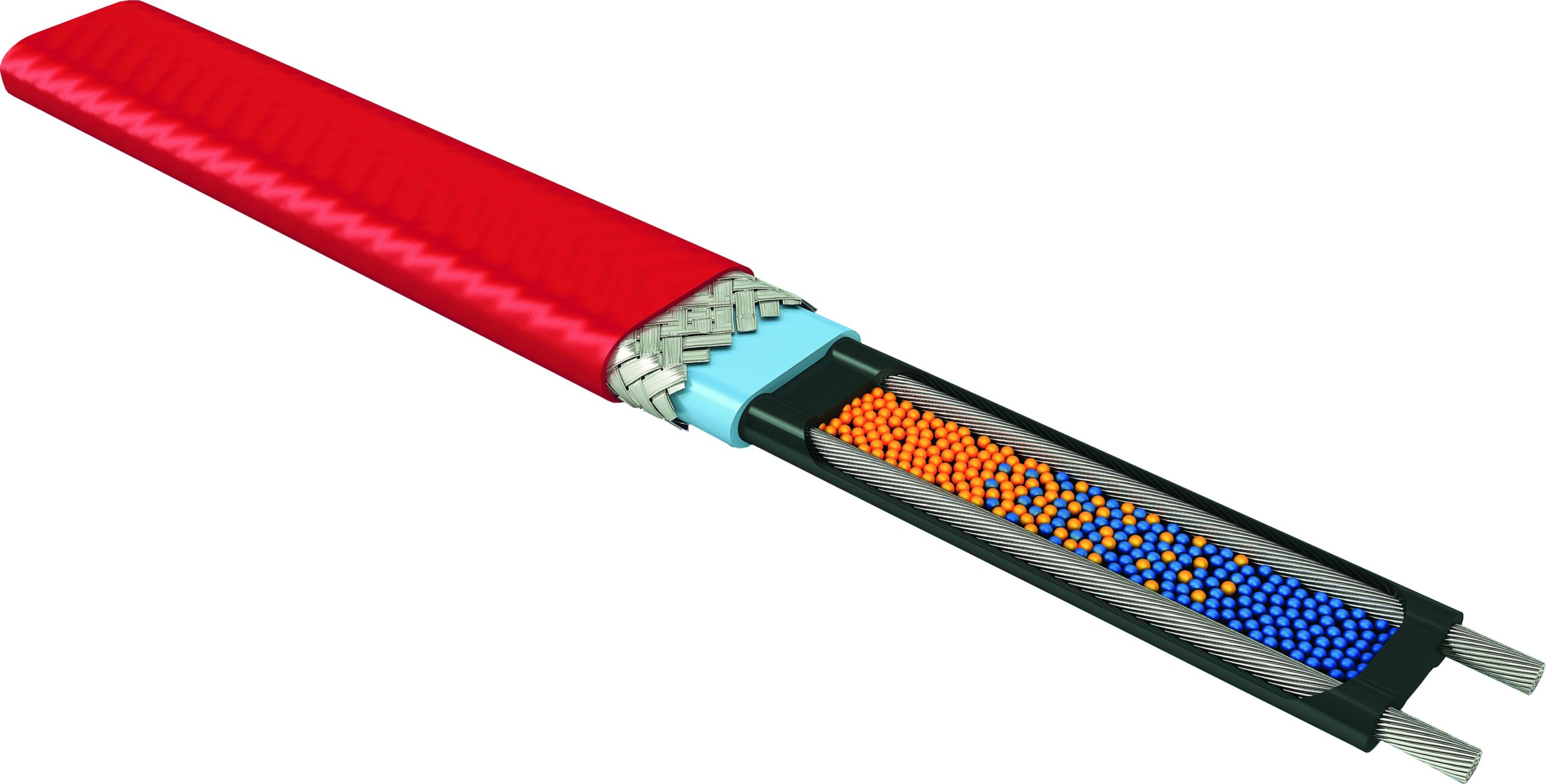

The KSX heating cable features a rugged industrial construction consisting of:
- Nickel-Plated Copper Bus Wires
- Self-Regulating Conductive Heating Matrix
- Fluoropolymer Dielectric Insulation
- Tinned Copper Braid
- Fluoropolymer Outer Jacket
This construction provides excellent protection against moisture, chemicals, abrasion, and harsh industrial environments while ensuring reliable electrical performance.
Benefits
Choosing Thermon KSX provides numerous operational advantages:
- Higher heating capacity for demanding applications
- Automatic energy savings
- Reliable freeze protection
- Reduced installation time
- Safe overlap without burnout
- Lower maintenance costs
- Outstanding resistance to chemicals and corrosion
- Long operational life
Why Choose Thermon KSX?
Thermon KSX combines intelligent self-regulating technology with robust industrial construction to provide reliable thermal protection for facilities operating in harsh environments. Whether maintaining process temperatures or protecting pipelines from freezing, KSX delivers dependable performance, excellent energy efficiency, and long-term operational reliability.
