Thermon USX™ Self-Regulating Heating Cable
Engineered for Ultra-High Temperature Process Maintenance
The Thermon USX™ is the most advanced self-regulating heating cable in Thermon’s product portfolio, specifically developed for critical process temperature maintenance and freeze protection in applications where conventional self-regulating cables cannot withstand the required operating temperatures.
Unlike standard heat tracing cables, USX utilizes Thermon’s monolithic co-extrusion technology, allowing the cable to maintain outstanding thermal stability while automatically adjusting its heat output according to the surrounding temperature. This intelligent self-regulating design maximizes energy efficiency, enhances operational safety, and significantly extends cable service life.
Product Overview
USX is designed for industrial processes requiring continuous exposure temperatures up to 240°C (464°F) while still providing all the advantages of self-regulating technology. The cable continuously senses local temperature conditions and automatically increases or decreases its heat output to compensate for changing heat losses along the entire circuit.
This eliminates hot spots, reduces energy consumption, and allows safe overlap during installation without the risk of cable burnout.
Key Features
- Self-regulating heat output technology
- Continuous exposure temperature up to 240°C (464°F)
- Suitable for critical process temperature maintenance
- Automatic energy saving by adjusting output to ambient conditions
- Thermon’s proven monolithic co-extruded heating matrix
- Nickel-plated copper bus wires for superior conductivity
- Fluoropolymer insulation and overjacket for excellent chemical resistance
- Tinned copper braid for mechanical protection and grounding
- Can be installed in hazardous and ordinary industrial locations when used in accordance with applicable certifications
- Long service life with outstanding high-temperature stability

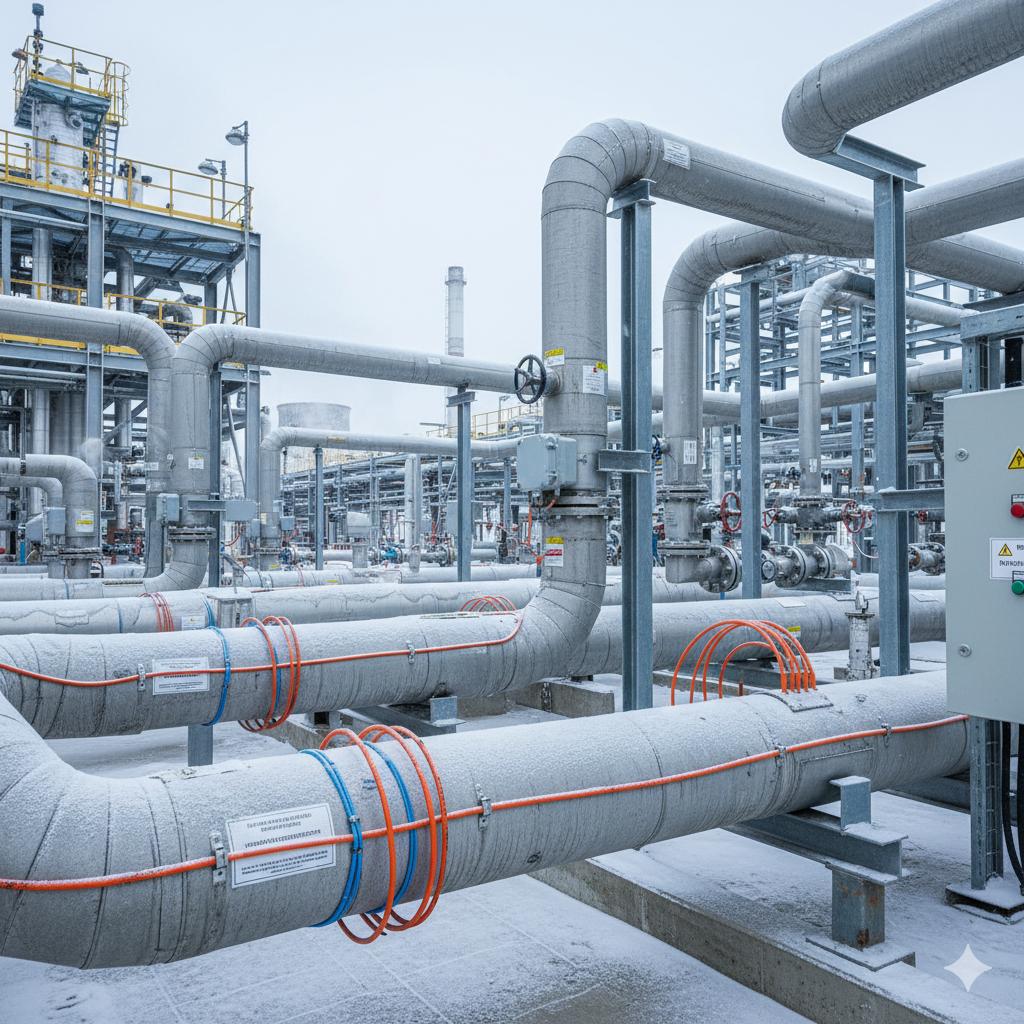

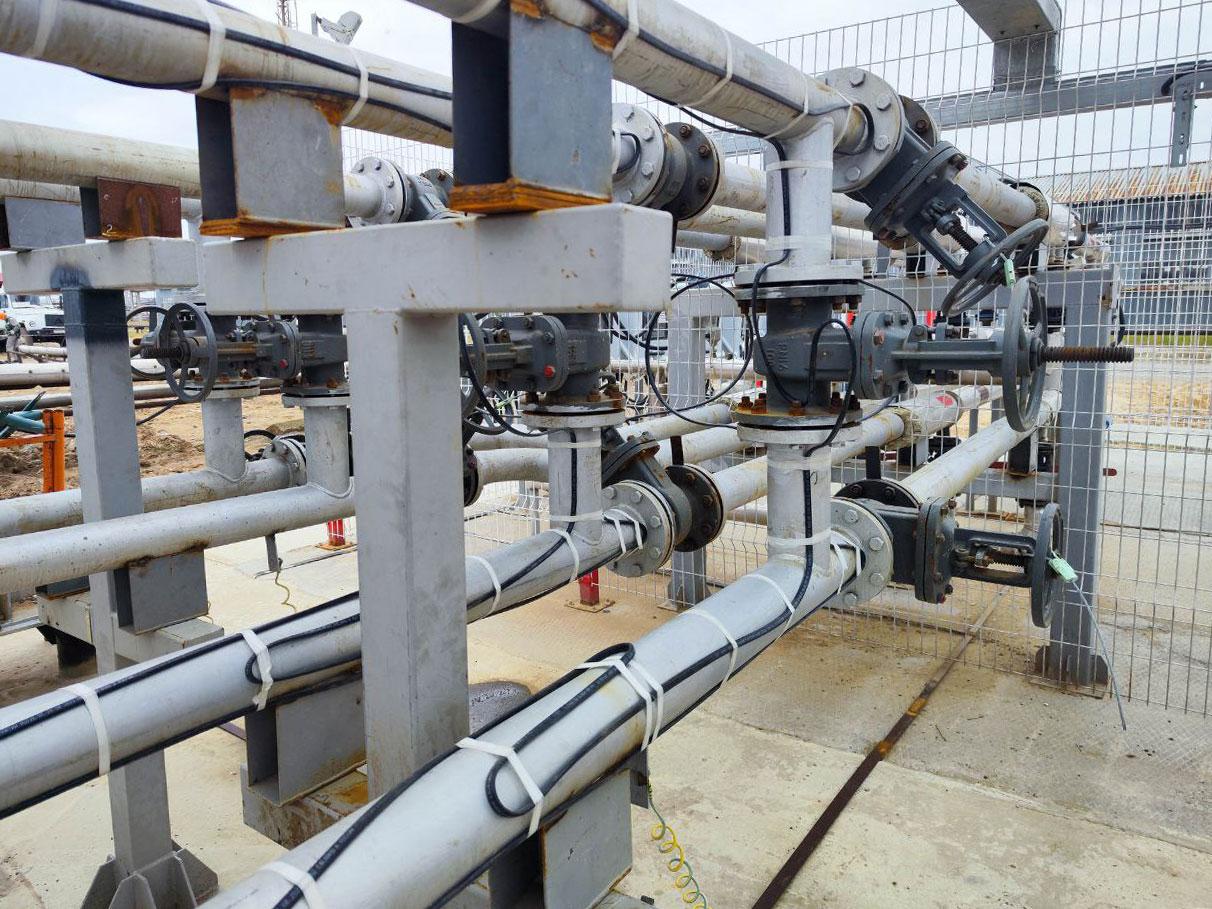

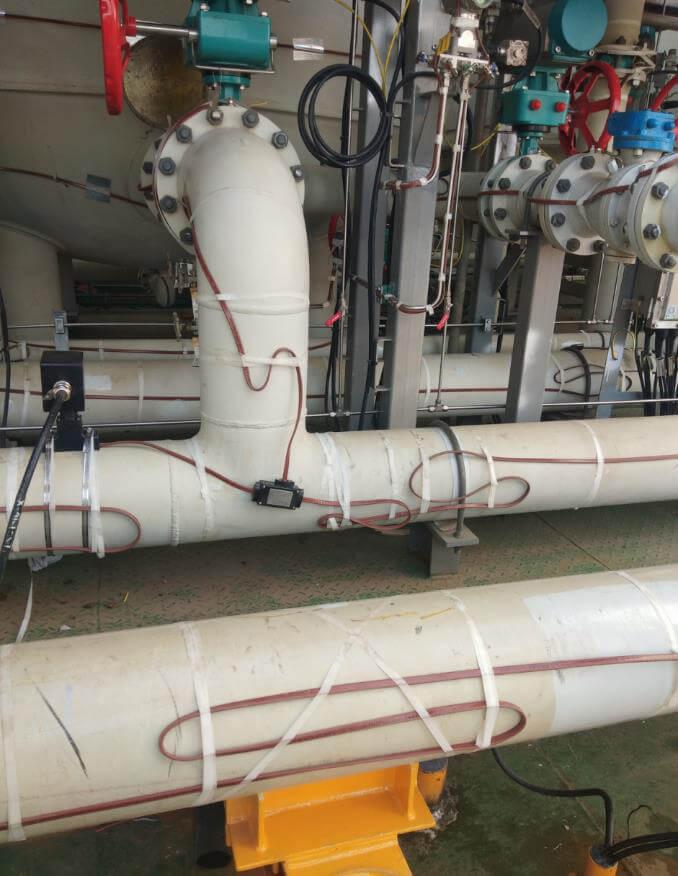

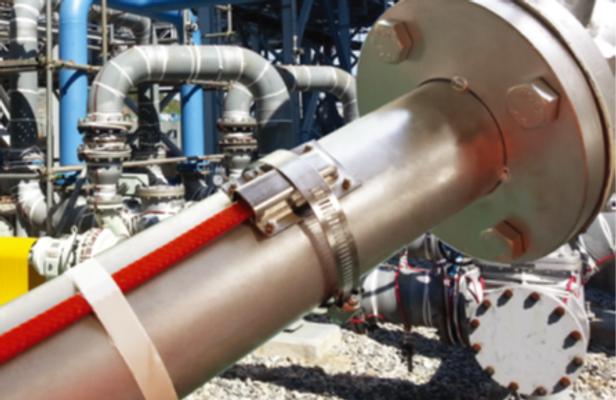

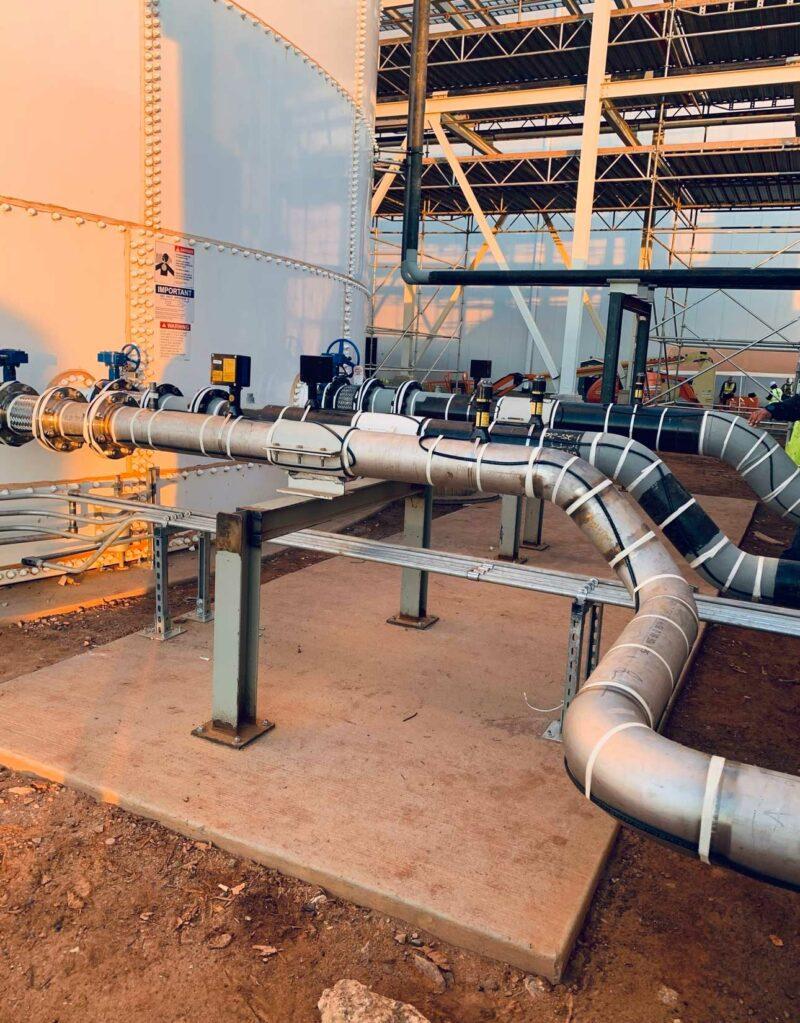

Typical Applications
USX is the preferred solution for demanding industrial environments, including:
- Combined Cycle Gas Turbine (CCGT) Power Plants
- Oil & Gas Processing Facilities
- Petrochemical Plants
- Chemical Processing Industries
- Steam and Condensate Systems
- Boiler Feedwater Lines
- Fuel Gas Piping
- Instrument & Sampling Lines
- Fire Water Systems
- High Temperature Process Pipelines

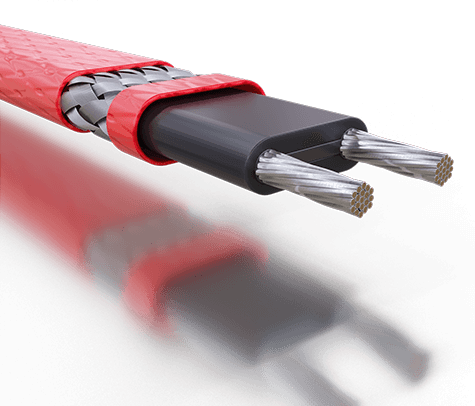

Construction
The USX cable consists of:
- Nickel-plated Copper Bus Wires
- Monolithic Co-Extruded Self-Regulating Heating Matrix
- Fluoropolymer Dielectric Insulation
- Nickel-plated Copper Braid
- Fluoropolymer Outer Jacket
This robust construction provides exceptional resistance to moisture, chemicals, mechanical damage, and elevated temperatures, making USX suitable for harsh industrial environments.
Benefits
Choosing Thermon USX provides several operational advantages:
- Reduced energy consumption through intelligent self-regulation
- Simplified installation with overlap capability
- Lower maintenance costs
- Reliable thermal performance under extreme operating conditions
- Improved process reliability
- Extended service life compared with conventional heating cables
Why Choose Thermon USX?
USX represents Thermon’s highest-performance self-regulating heat tracing technology. Designed for industries where temperature control is critical, it delivers exceptional reliability, outstanding thermal stability, and industry-leading high-temperature capability.
Whether protecting process lines from freezing or maintaining elevated process temperatures, Thermon USX offers an efficient, safe, and dependable heating solution for the world’s most demanding industrial applications.
