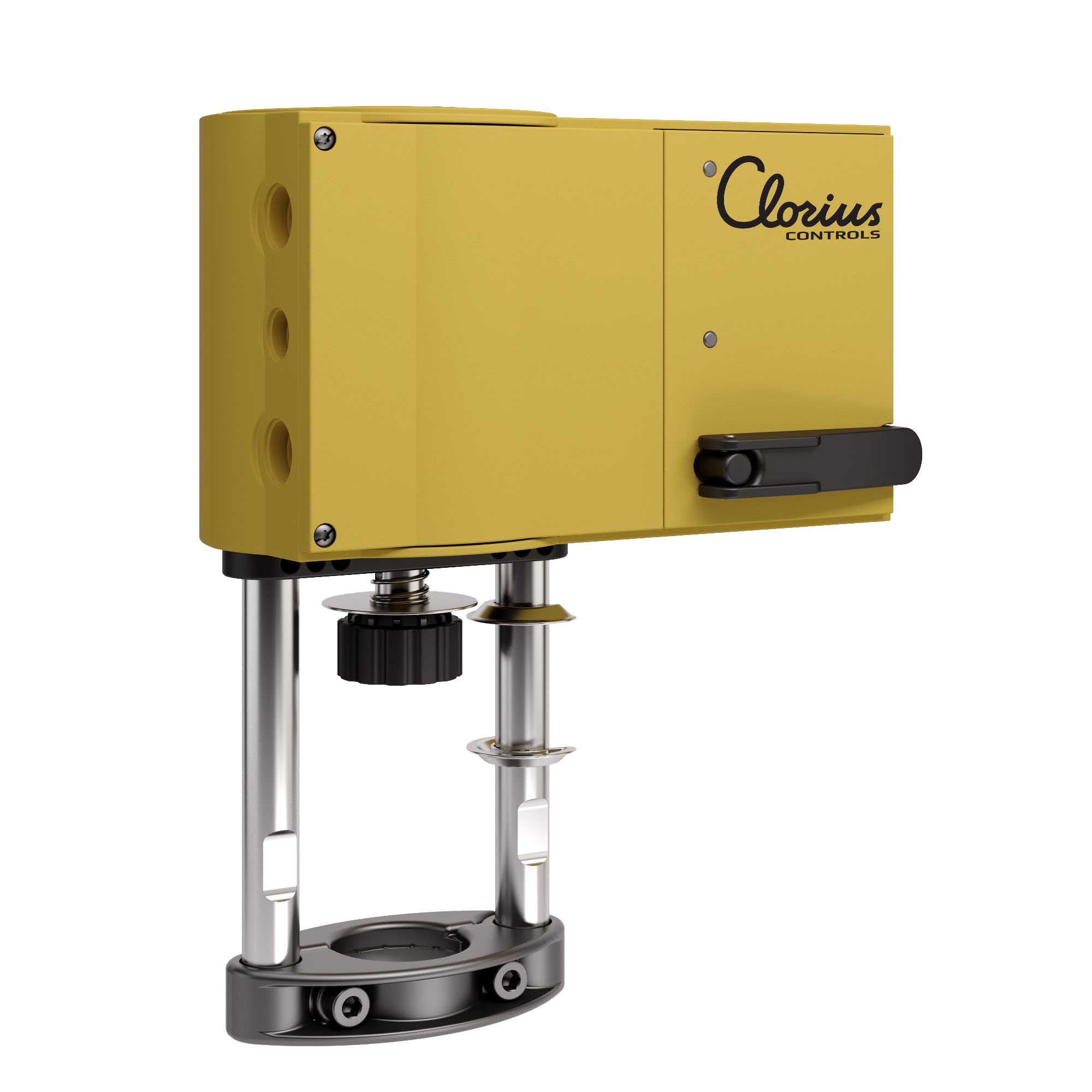

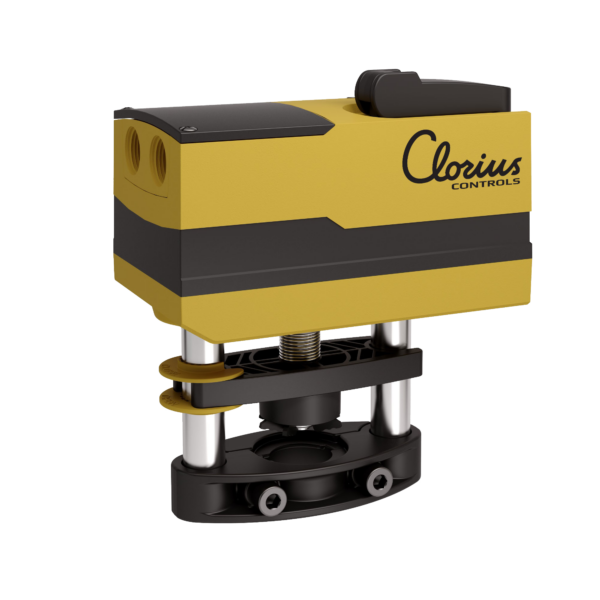

Clorius AVM234S Linear Electric Actuator
Intelligent 2500 N Electric Actuator for Precise Valve Control
The Clorius AVM234S is a high-performance linear electric actuator designed for precise modulation of 2-way and 3-way control valves. Equipped with an integrated SUT (Superior Universal Technology) positioner, the actuator supports both analog and switching control signals, making it an ideal solution for HVAC systems, district heating, industrial process control, and marine applications. With 2,500 N thrust force, automatic valve stroke adaptation, and IP66 protection, the AVM234S delivers reliable and maintenance-free operation in demanding environments.
Key Features
- Linear electric actuator with integrated SUT positioner
- Minimum thrust force: 2,500 N
- Compatible with 2-way and 3-way control valves
- Automatic valve stroke adaptation (8–49 mm)
- Supports 2-point, 3-point, and modulating control
- Analog input:
- 0–10 V
- 4–20 mA
- Position feedback: 0–10 V
- Adjustable running time:
- 2 s/mm
- 4 s/mm
- 6 s/mm
- Selectable valve characteristics:
- Linear
- Equal Percentage
- Quadratic
- Manual override with external crank handle
- LED status indication
- Automatic re-initialization
- IP66 enclosure
- Maintenance-free gearbox.
Benefits
High Positioning Accuracy
The integrated SUT electronic positioner continuously monitors actuator position and automatically adapts to the connected valve stroke. This ensures accurate flow control and improved temperature stability while minimizing energy consumption.
Powerful 2500 N Output
With a thrust force of 2,500 N, the AVM234S can reliably operate medium and large Clorius control valves used in district heating, industrial processing, and marine systems.
Flexible Control Compatibility
The actuator automatically detects whether the controller provides an analog signal (0–10 V or 4–20 mA) or a switching signal (2-point or 3-point), reducing commissioning time and simplifying integration with PLC, DCS, or BMS systems.
Easy Commissioning and Maintenance
The patented actuator-to-valve coupling automatically connects the spindle during initialization. Manual override enables technicians to operate the valve during installation, testing, or maintenance without removing the actuator.
Typical Applications
The AVM234S is widely used in:
- District heating substations
- HVAC systems
- Industrial process control
- Steam and hot water systems
- Heat exchanger stations
- Thermal oil systems
- Marine cooling and heating
- Energy plants
- Utility process automation
- Building Management Systems (BMS).
Technical Specifications
| Specification | Value |
|---|---|
| Model | AVM234S |
| Product Type | Linear Electric Actuator |
| Actuating Force | 2,500 N |
| Valve Stroke | 8–49 mm (Auto Adaptation) |
| Running Time | 2 / 4 / 6 s/mm |
| Power Supply | 24 VAC / 24 VDC (230 VAC via module) |
| Power Consumption | 10 W / 20 VA (24 V), 13 W / 28 VA (230 V) |
| Control Signal | 2-Point, 3-Point, 0–10 V, 4–20 mA |
| Position Feedback | 0–10 V |
| Characteristic Selection | Linear, Quadratic, Equal Percentage |
| Degree of Protection | IP66 |
| Ambient Temperature | -10°C to +55°C |
| Mounting Position | Vertical to Horizontal (Not Upside Down) |
| Weight | Approx. 4.1 kg |
Why Choose the Clorius AVM234S?
The Clorius AVM234S combines a 2,500 N thrust force, intelligent SUT positioner, automatic valve adaptation, and versatile control signal compatibility into a single compact actuator. Its rugged IP66 construction, maintenance-free gearbox, and flexible integration with PLC, DCS, and BMS platforms make it an excellent choice for demanding industrial and commercial flow control applications where precision, reliability, and energy efficiency are critical.
