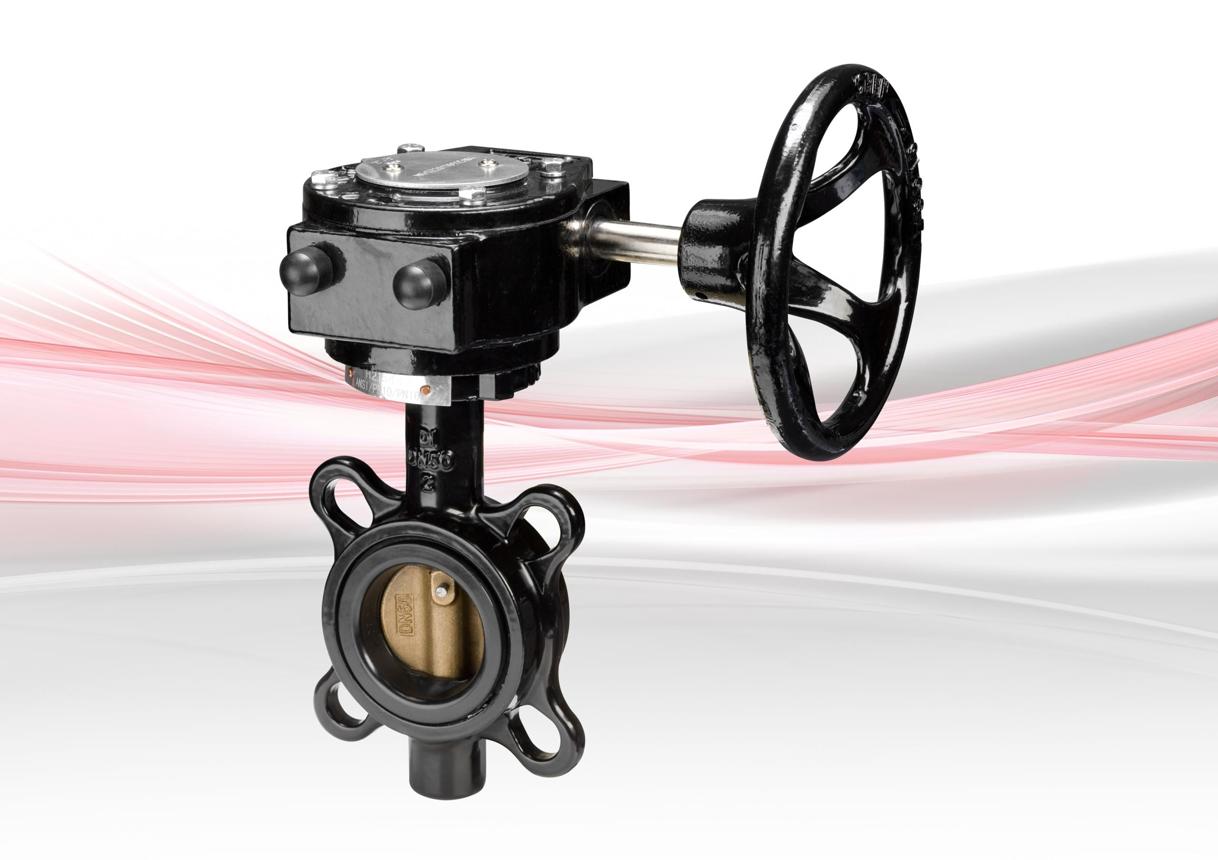

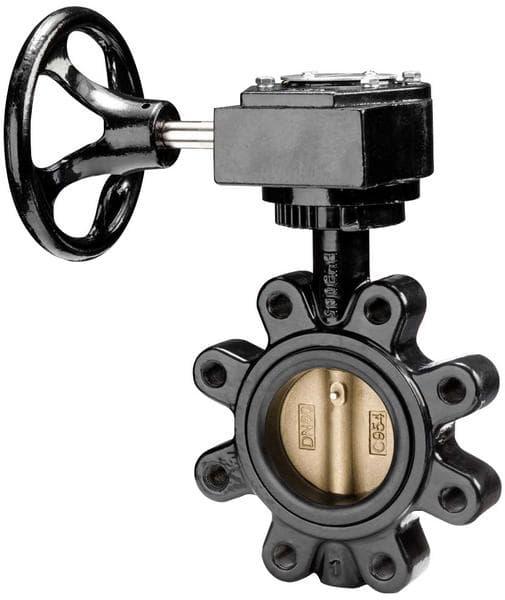

Crane F622 Semi-Lugged Gearbox Operated Butterfly Valve
Heavy-Duty PN16 Gear Operated Butterfly Valve for HVAC and Water Distribution Systems
The Crane F622 is a semi-lugged gearbox operated butterfly valve designed for reliable isolation in commercial HVAC, industrial process, and potable water systems. Manufactured from ductile iron with an aluminium bronze discand a WRAS-approved EPDM liner, the F622 combines excellent corrosion resistance, smooth gear-assisted operation, and long-term durability. It is suitable for PN16 and ANSI Class 125 flange connections and is manufactured in accordance with BS EN 593.
Key Features
- Semi-lugged butterfly valve
- Gearbox operated for smooth manual operation
- Size range: DN50–DN300
- Pressure rating: PN16 / ANSI Class 125
- Ductile iron body with fully bonded epoxy coating
- Aluminium bronze disc for superior corrosion resistance
- WRAS-approved EPDM liner
- Blow-out proof stainless steel shaft
- Heavy-duty gearbox for reduced operating torque
- Maintenance-free design
- Suitable for BS EN 1092-2 PN10/PN16 and ANSI B16.1 Class 125 flanges
- Manufactured to BS EN 593 standards.
Benefits
Smooth Gearbox Operation
The enclosed gearbox significantly reduces the operating force required to open and close larger butterfly valves, allowing safe and precise manual operation even on high-torque applications.
WRAS Approved for Potable Water
The F622 is WRAS approved for potable water applications from -10°C to 80°C, making it suitable for drinking water systems as well as HVAC installations.
Excellent Corrosion Resistance
The valve body is protected with a fully bonded epoxy coating, while the aluminium bronze disc provides excellent resistance to corrosion in chilled water, heating water, and potable water applications.
Safe Operation
A blow-out proof stainless steel shaft enhances operational safety, while the rugged gearbox ensures consistent valve positioning and extended service life.
Low Maintenance
The resilient EPDM seat and permanently lubricated gearbox minimize maintenance requirements, reducing downtime and operating costs throughout the valve’s service life.
Typical Applications
The Crane F622 is suitable for:
- HVAC heating systems
- Chilled water systems
- Potable water distribution
- District heating
- District cooling
- Commercial buildings
- Hospitals
- Hotels
- Industrial water services
- Pump stations
- Mechanical plant rooms
- Water treatment facilities
- General industrial utilities.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Crane Fluid Systems |
| Model | F622 |
| Product Type | Semi-Lugged Butterfly Valve |
| Operation | Gearbox Operated |
| Valve Standard | BS EN 593 |
| Size Range | DN50–DN300 |
| Pressure Rating | PN16 / ANSI Class 125 |
| Body Material | Ductile Iron ASTM A536 |
| Disc Material | Aluminium Bronze ASTM B148 C954 |
| Seat Material | WRAS Approved EPDM |
| Shaft Material | Stainless Steel Type 410 |
| Temperature Range | -10°C to +100°C (WRAS approval up to 80°C) |
| End Connection | BS EN 1092-2 PN10/PN16 & ANSI B16.1 Class 125 |
| Surface Protection | Fully Bonded Epoxy Coating |
| Corrosion Protection | C3 Medium Environment |
Why Choose the Crane F622?
The Crane F622 Semi-Lugged Gearbox Operated Butterfly Valve is engineered for reliable performance in medium and large-diameter piping systems. Its gearbox operation provides smooth valve control with minimal effort, while the combination of a ductile iron body, aluminium bronze disc, WRAS-approved EPDM seat, and epoxy corrosion protection ensures long service life in demanding environments. With compliance to BS EN 593, compatibility with both PN16 and ANSI Class 125 flanges, and WRAS approval for potable water applications, the F622 is an excellent choice for HVAC, water treatment, and commercial building services.
