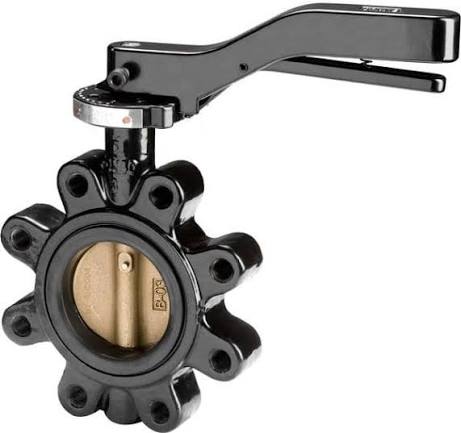

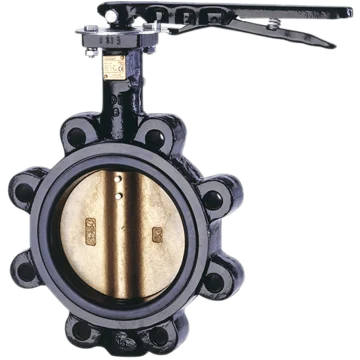

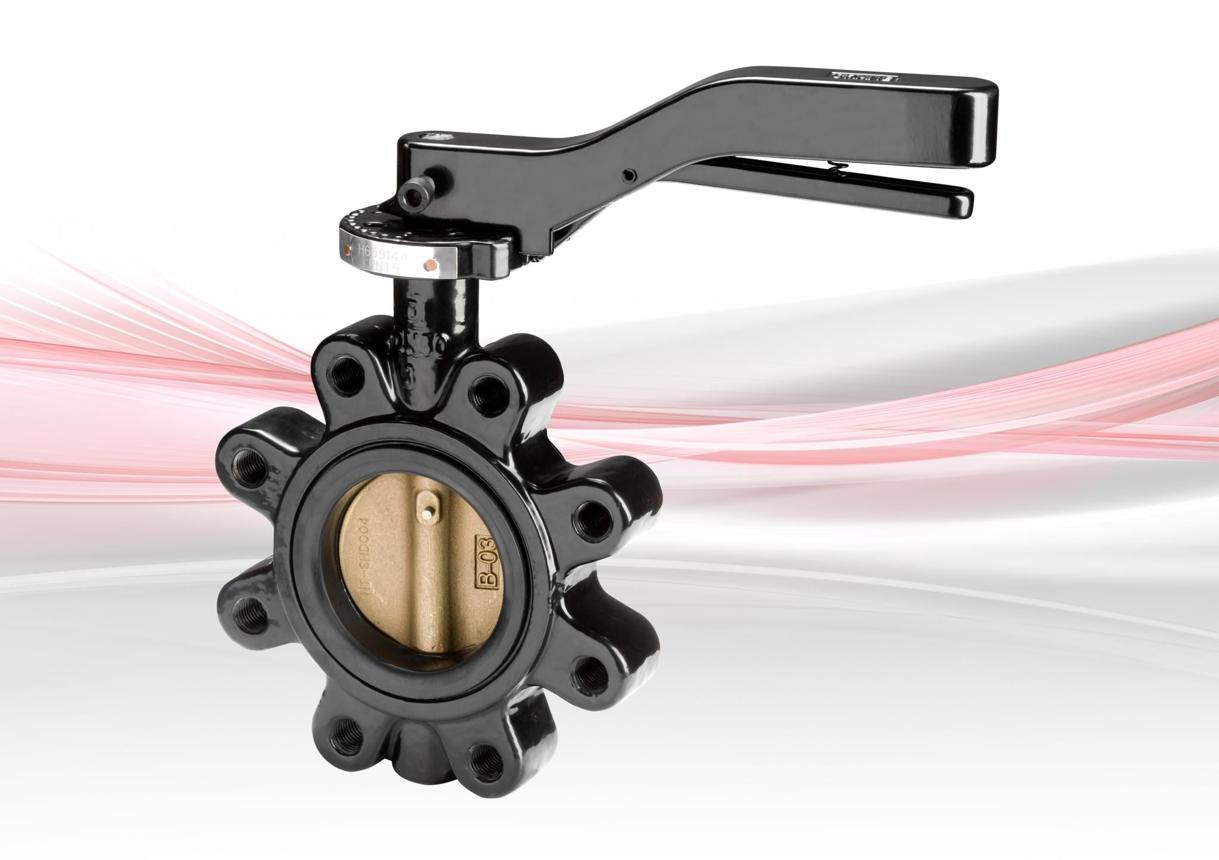

Crane F624 Fully-Lugged Lever Operated Butterfly Valve
PN16 WRAS Approved Fully-Lugged Butterfly Valve for HVAC, Water Distribution & Industrial Applications
The Crane F624 is a fully-lugged, lever-operated butterfly valve designed to provide reliable isolation and long-term performance in HVAC, potable water, and industrial piping systems. Manufactured from high-strength ductile iron, equipped with an aluminium bronze disc, 420 stainless steel shaft, and a WRAS-approved EPDM liner, the F624 delivers excellent sealing performance, corrosion resistance, and easy operation.
Unlike semi-lugged butterfly valves, the fully-lugged body allows the valve to be installed at the end of a pipeline or on one side of a flanged connection without requiring a downstream flange, making it ideal for maintenance isolation and dead-end service. It is manufactured in accordance with BS EN 593 and is compatible with BS EN 1092-2 PN16 flanges.
Key Features
- Fully-lugged butterfly valve
- Lever-operated quarter-turn design
- Size range: DN50–DN200
- Pressure rating: PN16
- Fully-lugged ductile iron body
- WRAS-approved EPDM liner
- Aluminium bronze disc
- 420 stainless steel shaft
- Blow-out proof stem design
- Fully bonded epoxy coating
- Maintenance-free construction
- Suitable for dead-end service
- Designed to BS EN 593
- Compatible with BS EN 1092-2 PN16 flanges
- BIM and CAD files available.
Benefits
Fully-Lugged Body Design
The F624 features a fully-lugged valve body, allowing one side of the pipeline to be disconnected while the opposite side remains pressurized. This simplifies maintenance and replacement work while minimizing system downtime.
WRAS Approved for Potable Water
The EPDM liner is WRAS approved for potable water applications between -10°C and 80°C, making the valve suitable for drinking water systems, public buildings, healthcare facilities, and commercial developments.
Excellent Corrosion Protection
The valve body is protected by a fully bonded epoxy paint system, while the aluminium bronze disc provides excellent resistance to corrosion in water and HVAC applications. The coating is suitable for C3 (Medium) corrosive environments.
Safe & Reliable Operation
The anti-blow-out stem design improves operational safety, while the lightweight aluminium lever enables smooth quarter-turn operation with minimal effort.
Maintenance-Free Performance
The resilient EPDM seat and robust internal components provide long service life without routine lubrication or adjustment, reducing maintenance costs over the valve’s lifecycle.
Typical Applications
The Crane F624 is ideal for:
- HVAC systems
- Heating water systems
- Chilled water systems
- Potable water distribution
- Water treatment plants
- Commercial buildings
- Hospitals
- Hotels
- Universities
- District heating
- District cooling
- Mechanical plant rooms
- Industrial process water
- General building services.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Crane Fluid Systems |
| Model | F624 |
| Product Type | Fully-Lugged Butterfly Valve |
| Operation | Lever Operated |
| Valve Standard | BS EN 593 |
| Size Range | DN50–DN200 |
| Pressure Rating | PN16 |
| Body Material | Ductile Iron |
| Disc Material | Aluminium Bronze |
| Seat Material | WRAS Approved EPDM |
| Shaft Material | 420 Stainless Steel |
| Temperature Range | -10°C to +100°C (WRAS approval to +80°C) |
| End Connection | BS EN 1092-2 PN16 |
| Surface Protection | Fully Bonded Epoxy Coating |
| Corrosion Category | C3 (Medium) |
| Certification | WRAS Approved |
Why Choose the Crane F624?
The Crane F624 Fully-Lugged Butterfly Valve offers a robust and versatile isolation solution for commercial and industrial piping systems. Its fully-lugged body supports dead-end service, while the combination of a ductile iron body, aluminium bronze disc, WRAS-approved EPDM liner, and epoxy coating ensures long-term durability and dependable sealing performance. With compliance to BS EN 593, PN16 pressure capability, and low-maintenance operation, the F624 is an excellent choice for engineers, contractors, and facility managers seeking a high-quality butterfly valve for HVAC and potable water applications
