Description
Thermon HSX™ Self-Regulating Heating Cable
Self-Regulating Heat Tracing for Domestic Hot Water Temperature Maintenance
Thermon HSX™ is a premium self-regulating heating cable developed as the core component of the WarmTrace™ hot water temperature maintenance system. Designed specifically for domestic hot water supply piping, HSX eliminates the need for conventional recirculation loops, pumps, balancing valves, and return piping. The cable automatically adjusts its heat output according to pipe temperature, providing instant hot water while reducing energy consumption, installation costs, and water waste.
Key Features
- Self-regulating heating technology for maximum energy efficiency
- Designed exclusively for domestic hot water temperature maintenance
- Eliminates hot water recirculation systems
- 14 AWG nickel-plated copper bus wires for longer circuit lengths
- Automatically adjusts heat output along the entire pipe
- Cut-to-length design for easy installation

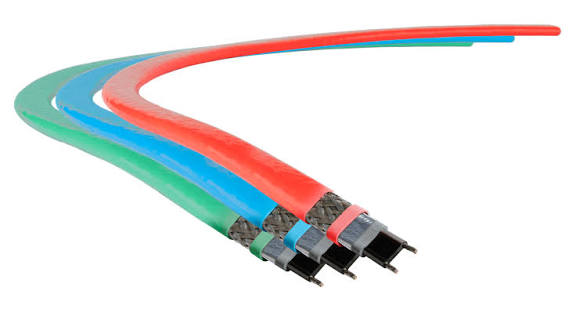

- Color-coded cable options for different maintain temperatures
- Reduced installation cost with fewer electrical circuits
- Suitable for commercial and institutional buildings
- Low maintenance and long service life
Construction
Thermon HSX is built with premium materials to ensure long-term reliability.
- 14 AWG (1.9 mm²) Nickel-Plated Copper Bus Wires
- E-Beam Cross-Linked Semiconductive Heating Matrix
- Cross-Linked Polyolefin Primary Dielectric Insulation
- Aluminized Mylar Foil
- Tinned Copper Metallic Braid
- Polyolefin Outer Jacket
Technical Specifications
| Parameter | Value |
|---|---|
| Cable Type | Self-Regulating Heating Cable |
| Voltage | 208–240 VAC |
| Maintain Temperature | 50°C, 55°C, 60°C (122°F, 131°F, 140°F) |
| Maximum Exposure Temperature | 65°C (149°F) |
| Minimum Installation Temperature | -51°C (-60°F) |
| Minimum Bend Radius | 10 mm @ -15°C |
| Outer Jacket | Polyolefin |
| Applications | Domestic Hot Water Temperature Maintenance |
Typical Applications
HSX is widely used for hot water systems in:
- Hotels
- Hospitals
- Office Buildings
- Apartments
- Universities
- Schools
- Healthcare Facilities
- Commercial Buildings
- Residential Complexes
Benefits
- Instant hot water at every outlet
- Eliminates recirculation pumps and return piping
- Reduces energy consumption
- Minimizes water waste
- Simplifies system design
- Longer circuit lengths reduce installation costs
- Reliable self-regulating performance
- Easy installation and maintenance
Why Choose Thermon HSX?
Thermon HSX is engineered specifically for hot water temperature maintenance rather than industrial process heating. As the heart of the WarmTrace™ system, it automatically maintains the desired water temperature without the complexity of traditional recirculation systems. With larger 14 AWG bus wires and self-regulating technology, HSX provides a reliable, energy-efficient, and cost-effective solution for commercial hot water distribution systems.
