Description
Thermon VSX-HT™ Self-Regulating Heating Cable
High-Temperature Self-Regulating Heat Trace Cable for Industrial Applications
Thermon VSX-HT™ is a premium self-regulating electric heat tracing cable engineered for high-temperature process maintenance and freeze protection in demanding industrial environments. Designed with advanced fluoropolymer insulation and a self-regulating heating matrix, VSX-HT automatically adjusts its power output according to the surrounding temperature, improving energy efficiency while minimizing the risk of overheating. It is ideal for applications where elevated maintenance temperatures and intermittent high-temperature exposure are required.
Key Features
- Self-regulating technology automatically adjusts heat output along the entire cable length.
- Maintains process temperatures up to 200°C (392°F).
- Withstands intermittent exposure temperatures up to 250°C (482°F).
- Suitable for both freeze protection and high-temperature process maintenance.
- Can be cut to length on-site without affecting performance.
- Safe for overlapping during installation without burn-out under normal operating conditions.
- Heavy-duty fluoropolymer jacket provides excellent resistance to chemicals, moisture, and mechanical damage.
- Designed for installation in both ordinary industrial areas and hazardous locations.

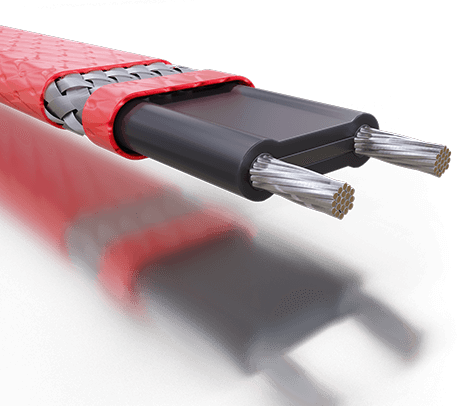

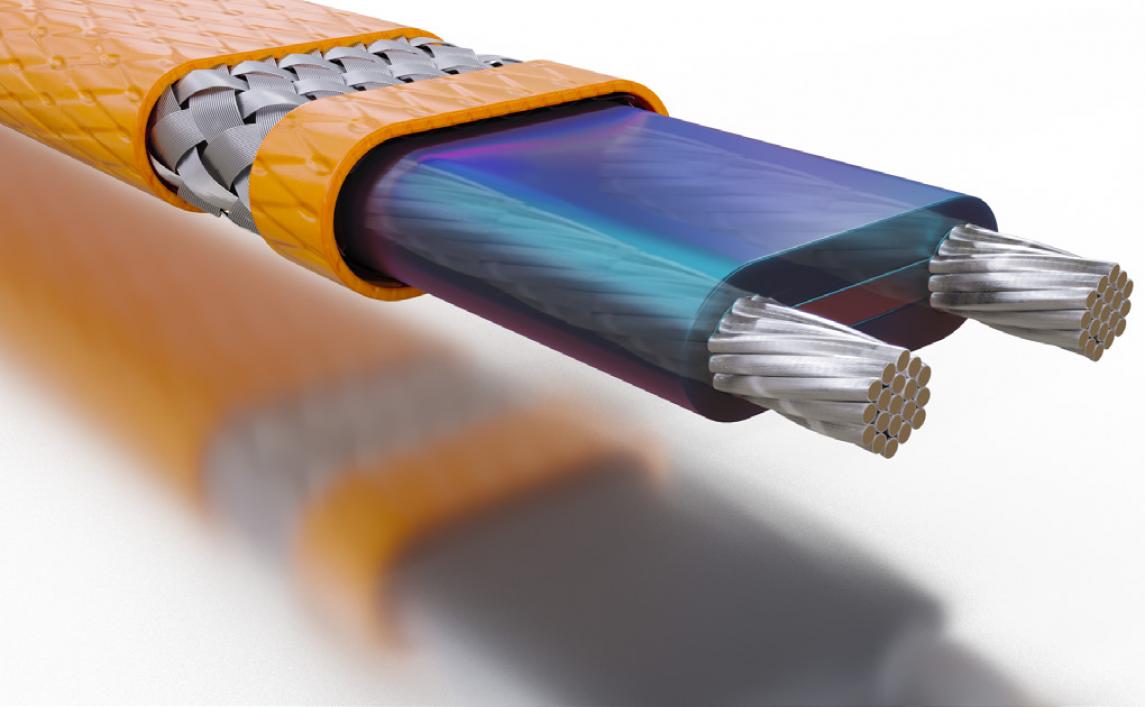

Construction
VSX-HT features a rugged multilayer construction for maximum reliability:
- Nickel-plated copper bus wires
- Self-regulating conductive heating matrix
- Fluoropolymer dielectric insulation
- Nickel-plated copper braid for grounding and mechanical protection
- Fluoropolymer overjacket for superior chemical and corrosion resistance
Technical Specifications
| Parameter | Value |
|---|---|
| Cable Type | Self-Regulating Heating Cable |
| Supply Voltage | 110–120 Vac or 208–277 Vac |
| Power Output | 16, 33, 49, 66 W/m @ 10°C (5, 10, 15, 20 W/ft @ 50°F) |
| Maximum Maintain Temperature | 200°C (392°F) |
| Maximum Exposure Temperature | 250°C (482°F) |
| Minimum Installation Temperature | -51°C (-60°F) |
| Minimum Bend Radius | 10 mm @ -15°C |
| Outer Jacket | Fluoropolymer |
| Ground Braid | Nickel-Plated Copper |
Hazardous Area Approvals
VSX-HT is approved for installation in hazardous environments, including:
- Ordinary (Non-Classified) Areas
- Class I, Division 2
- Zone 1
- Zone 2
- Zone 21
- Zone 22
Regional certifications may include FM, CSA, ATEX, IECEx and additional marine or international approvals depending on the market.

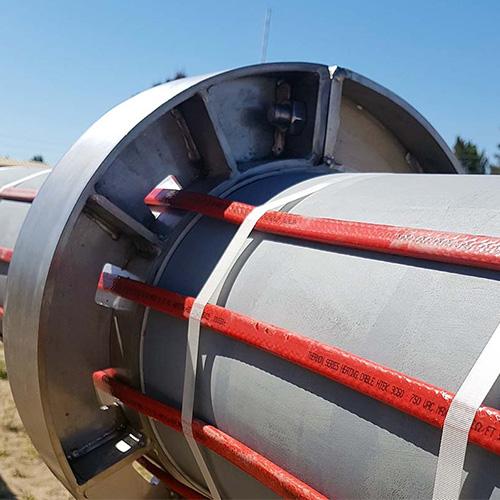

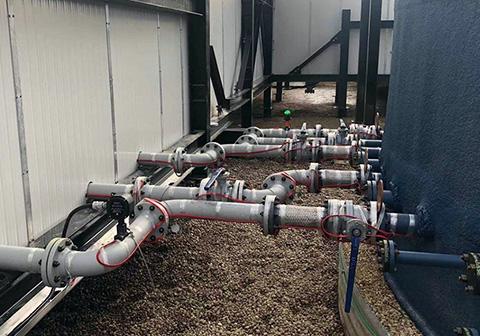

Typical Applications
VSX-HT is widely used across industries requiring reliable heat tracing at elevated temperatures:
- Oil & Gas
- Petrochemical Plants
- LNG Facilities
- Refineries
- Chemical Processing
- Power Generation
- Offshore Platforms
- Industrial Pipelines
- Process Vessels
- Instrument Tubing
- Tank Heating
Benefits
- Excellent energy efficiency through self-regulating technology.
- Long service life with minimal maintenance.
- Superior resistance to harsh industrial chemicals.
- Simplified installation using cut-to-length cable.
- Reduced installation waste compared with constant wattage cables.
- Improved operational safety by minimizing overheating risks.
- Reliable performance under demanding industrial conditions.
Why Choose Thermon VSX-HT?
For applications requiring high process temperatures, conventional self-regulating heating cables may not provide sufficient thermal capability. Thermon VSX-HT is specifically engineered for these demanding conditions, delivering reliable temperature maintenance up to 200°C while tolerating intermittent exposure to 250°C. Its durable fluoropolymer construction and internationally recognized hazardous-area approvals make it an ideal solution for critical industrial heat tracing systems where safety, reliability, and long-term performance are essential.
