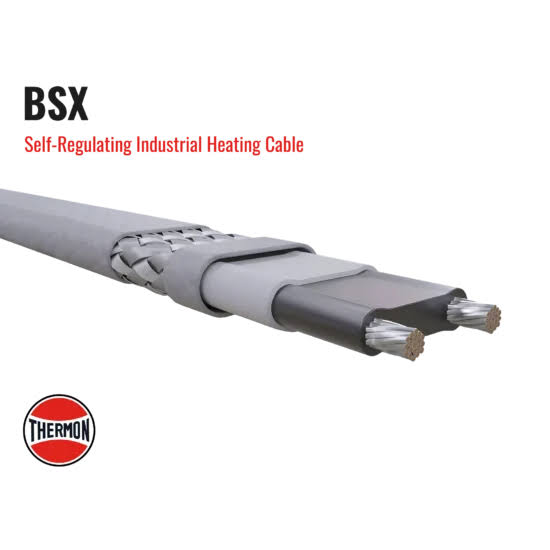

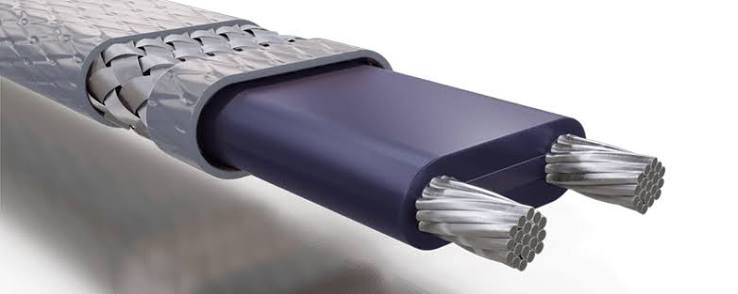

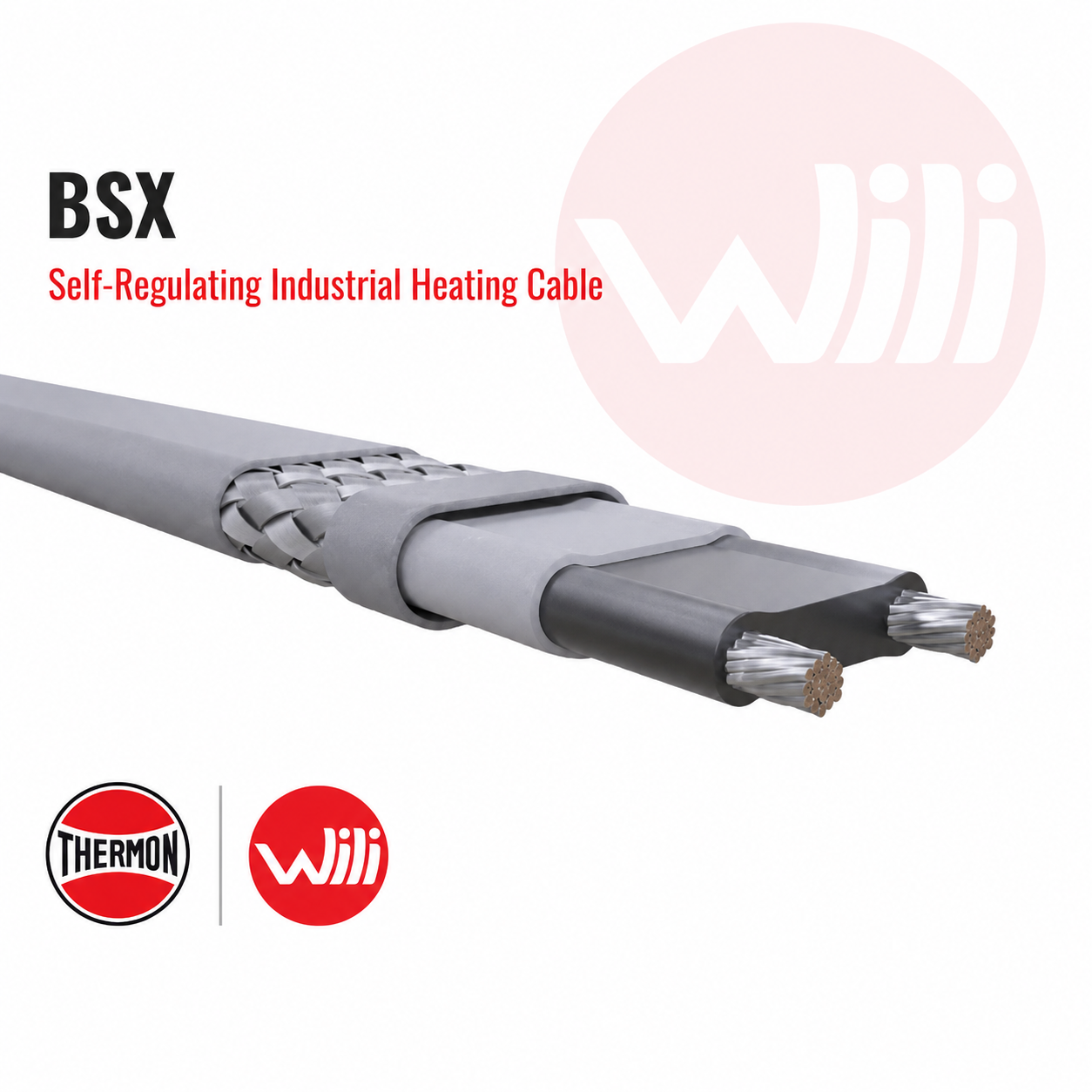

BSX™ Self-Regulating Heating Cable

Overview

The BSX™ Self-Regulating Heating Cable is an advanced electric heat tracing solution designed to protect piping systems and process equipment against freezing while maintaining the required operating temperature. It is suitable for installation on metallic and non-metallic pipes, tanks, vessels, valves, and other industrial equipment.

By automatically adjusting its heat output according to the surrounding conditions, the BSX™ cable delivers reliable thermal performance while minimizing energy consumption.

Features

• Self-regulating technology automatically adjusts power output.
• Prevents freezing of water, chemicals and process fluids.
• Maintains process temperatures with high reliability.
• Reduces energy consumption compared with constant wattage heating cables.
• Can be overlapped without overheating.
• Easy installation and maintenance.
• Suitable for both new construction and retrofit projects.

Applications

The BSX™ heating cable is widely used in:

• Industrial process piping
• Storage tanks and vessels
• Valves and pumps
• Chemical plants
• Oil & Gas facilities
• Power plants
• Water treatment systems
• Food & Beverage industries

Safety & Certification

The BSX™ heating cable is approved for installation in both ordinary and hazardous locations, making it suitable for applications where explosive gas atmospheres may be present. Depending on the product model, certifications may include ATEX, IECEx, CSA, UL or FM.

(Nên ghi đúng các chứng chỉ áp dụng cho model cụ thể, không liệt kê chứng chỉ mà model đó không có.)

Benefits

• Energy-efficient operation
• Automatic temperature response
• Improved process reliability
• Long service life
• Reduced maintenance costs
• Safe operation in industrial environments

Technical Spec/Thông tin kỹ thuật

• RATINGS
  Available watt densities ………..10, 16, 26, 33 W/m @ 10°C
  (3, 5, 8, 10 W/ft @ 50°F)
  Supply voltages ……………………………..110-120 or 208-277 Vac
  Max. maintenance temperature………………… 65°C (150°F)
  Max. continuous exposure temperature
  Power-off…………………………………………………………..85°C (185°F)
  Minimum installation temperature ………… -51°C (-60°F)
  Minimum bend radius
  @ -15°C (5°F)………………………………………………..10 mm (0.38”)
  @ -60°C (-76°F)…………………………………………… 32 mm (1.25”)
  T-rating 1
  10, 16, 26 W/m (3, 5, 8 W/ft)…………………..T6 85°C (185°F)
  33 W/m (10 W/ft)…………………………………….T5 100°C (212°F)

  Catalog Number 120 Vac Nominal	Catalog Number 240 Vac Nominal	Power Output at 10°C (50°F) W/m (ft)
  BSX 3-1	BSX 3-2	10 (3)
  BSX 5-1	BSX 5-2	16 (5)
  BSX 8-1	BSX 8-2	26 (8)
  BSX 10-1	BSX 10-2	33 (10)

  Item	Specification
  Product	BSX™ Self-Regulating Heating Cable
  Heating Technology	Self-Regulating
  Application	Freeze Protection & Process Temperature Maintenance
  Installation	Metallic & Non-metallic Pipes, Tanks, Equipment
  Hazardous Area	Yes (Depending on Certification)
  Supply Voltage	Refer to Product Model
  Maximum Exposure Temperature	Refer to Datasheet
