What Is a Gate Valve?

A gate valve uses a gate-like disc that moves vertically, perpendicular to the direction of flow. Turning the handwheel moves the stem and raises or lowers the gate against the valve seats.

When fully open, the gate is lifted completely out of the flow path, creating a relatively unrestricted passage and minimizing pressure loss.

Crane specifically describes its gate valves as efficient stop valves for flow in either direction, particularly where minimum pressure drop is important.

Important: Gate valves are primarily intended for isolation, not throttling. Crane does not recommend using them for flow regulation because the resulting flow characteristic and erosion can damage the valve and prevent effective shut-off.

Crane Gate Valve Range

The Crane Fluid Systems gate-valve portfolio contains 23 products, covering different materials, pressure ratings, connection standards and applications.

Main product families

These are the products currently listed by Crane Fluid Systems in its Gate Valves category.

Bronze Gate Valves

Crane offers a particularly broad selection of bronze gate valves for smaller pipe sizes.

Models such as D151, D151X, D159, D166, D180 and D235 provide different combinations of pressure rating and threaded connection.

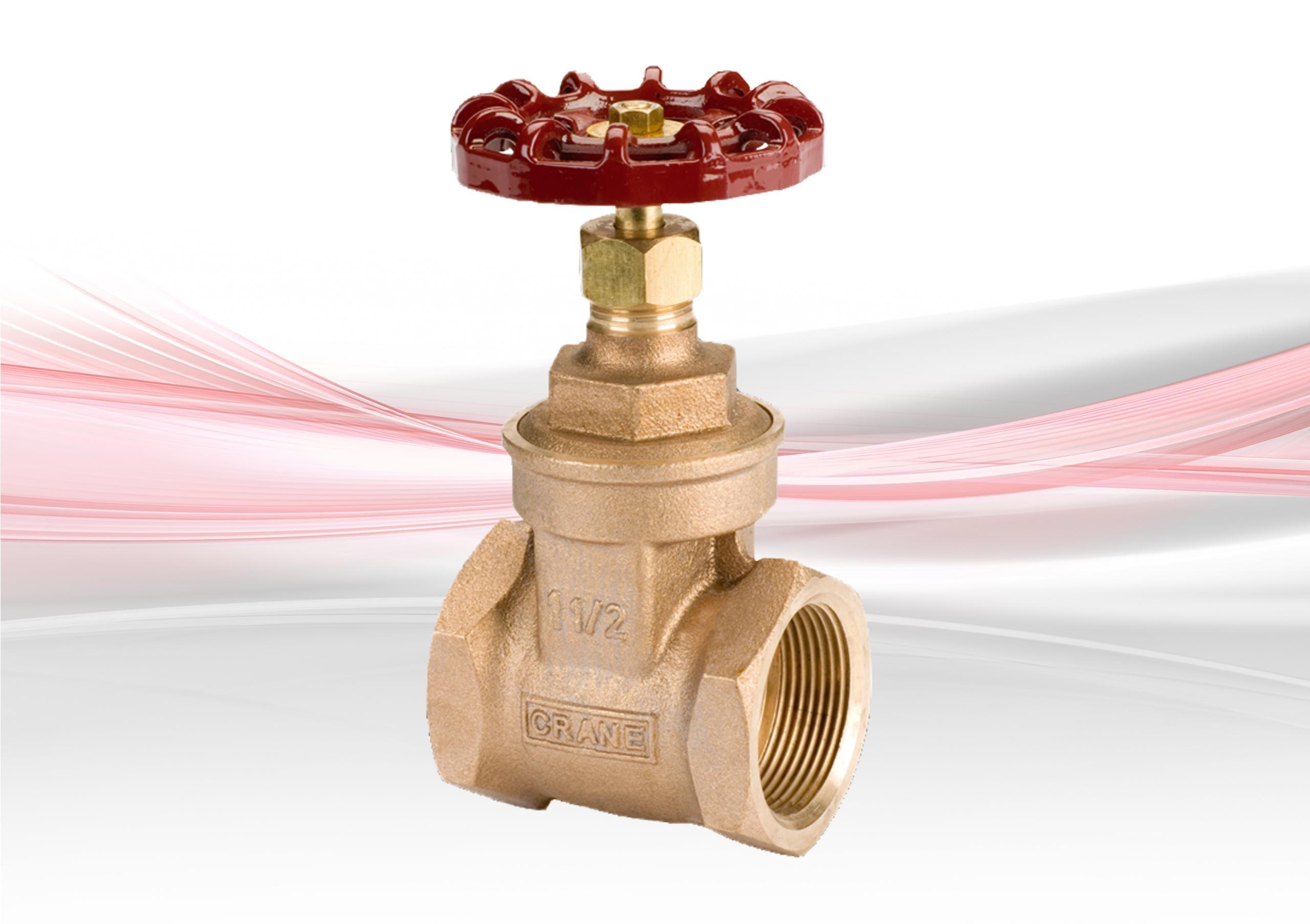

For example, the D151 is a PN20 bronze gate valve available from 1/4″ to 4″, with tapered threaded connections to BS EN 10226-2 (ISO 7-1). It is also listed as WRAS approved and carries the BSI Kitemark.

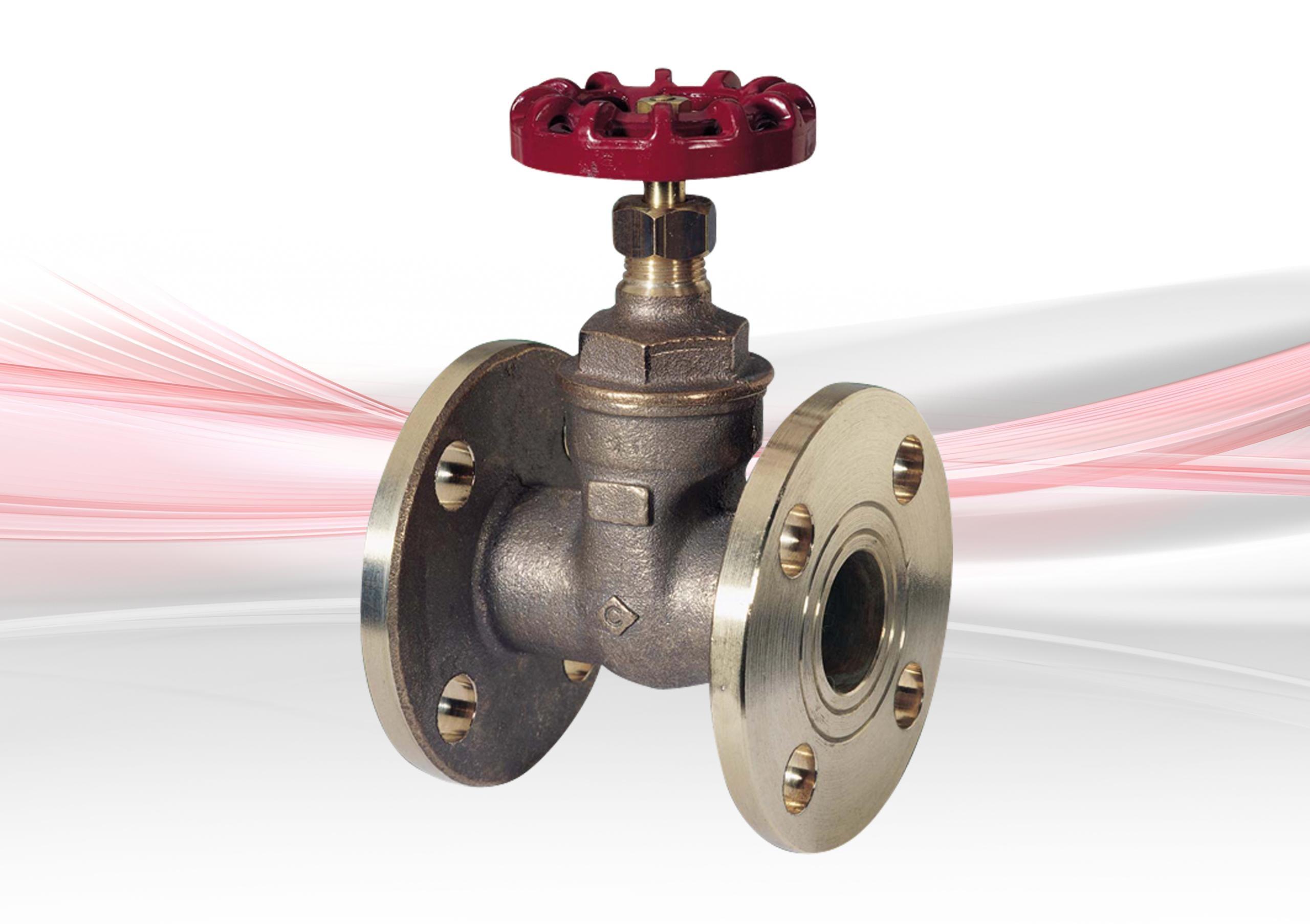

The D162 provides an alternative for projects using American flange standards. It is a Class 150 bronze gate valve, available from 3/4″ to 3″, with ANSI B16.24 Class 150 flanged connections.

Brass Gate Valves

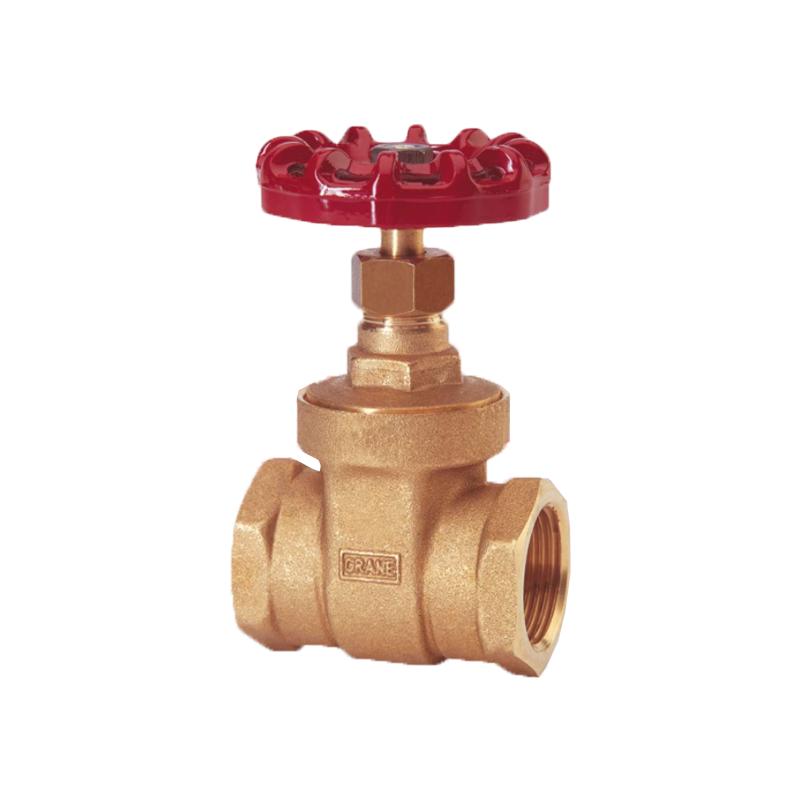

The D156 is a brass gate valve designed for smaller-diameter applications.

It covers:

• Size: 1/4″–4″
• Pressure rating: PN16
• Material: Brass
• Connection: Taper threaded to BS EN 10226-2 (ISO 7-1)

This provides an economical option for suitable plumbing and building-services applications.

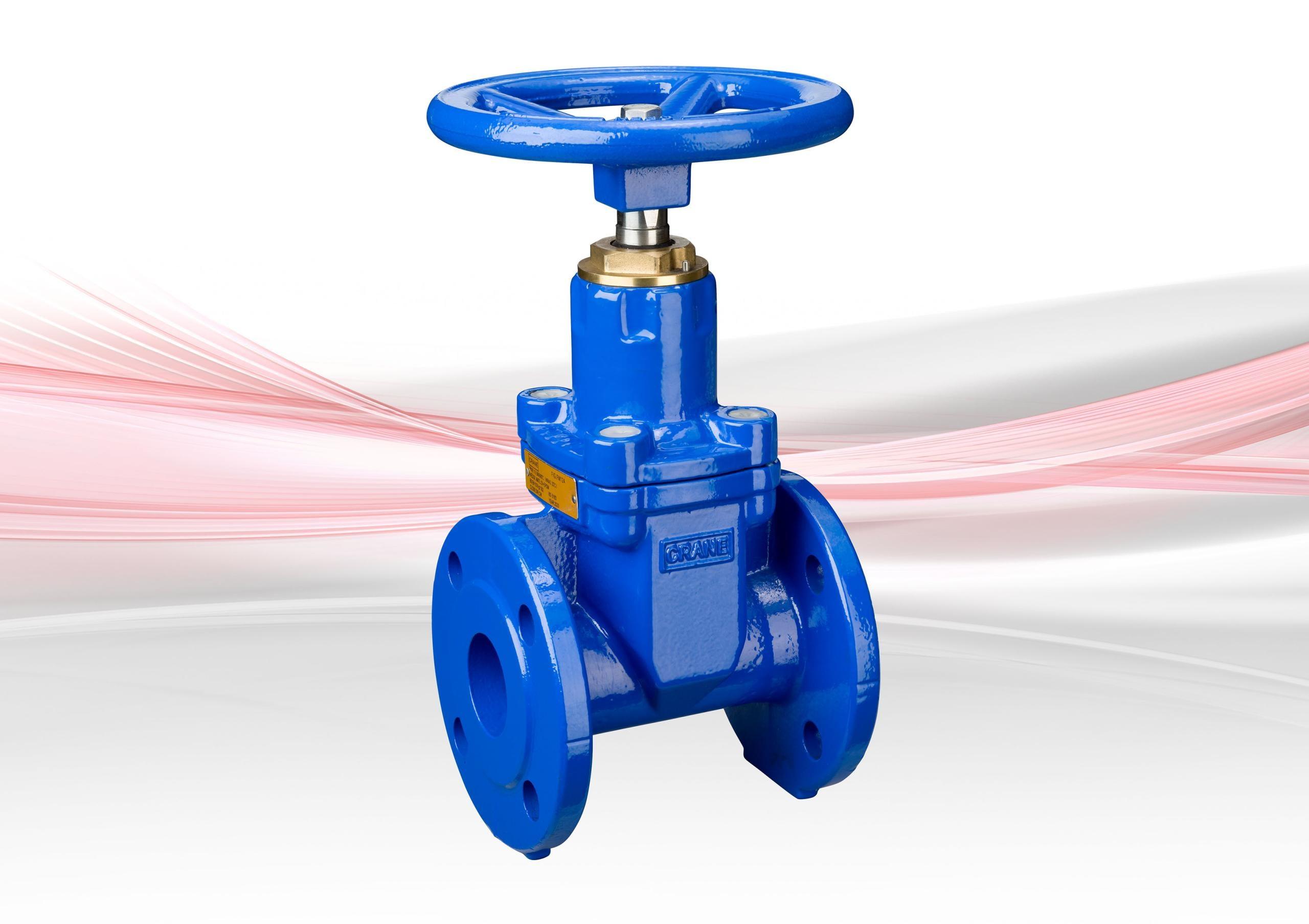

Cast Iron Gate Valves

Crane’s cast iron range includes:

• F53
• F58
• F84
• FM52
• FM57
• FM63

These valves cover a broad range of pressure ratings and connection standards.

The FM63, for example, is a PN16 cast iron gate valve available from 65 mm to 300 mm, with flanged connections according to BS EN 1092-2 PN16.

The cast iron range is particularly suitable for larger building-services and water-distribution pipework.

Ductile Iron Gate Valves

For applications requiring a robust gate valve for larger water systems, Crane offers the FM82 and FM124 / FM125ranges.

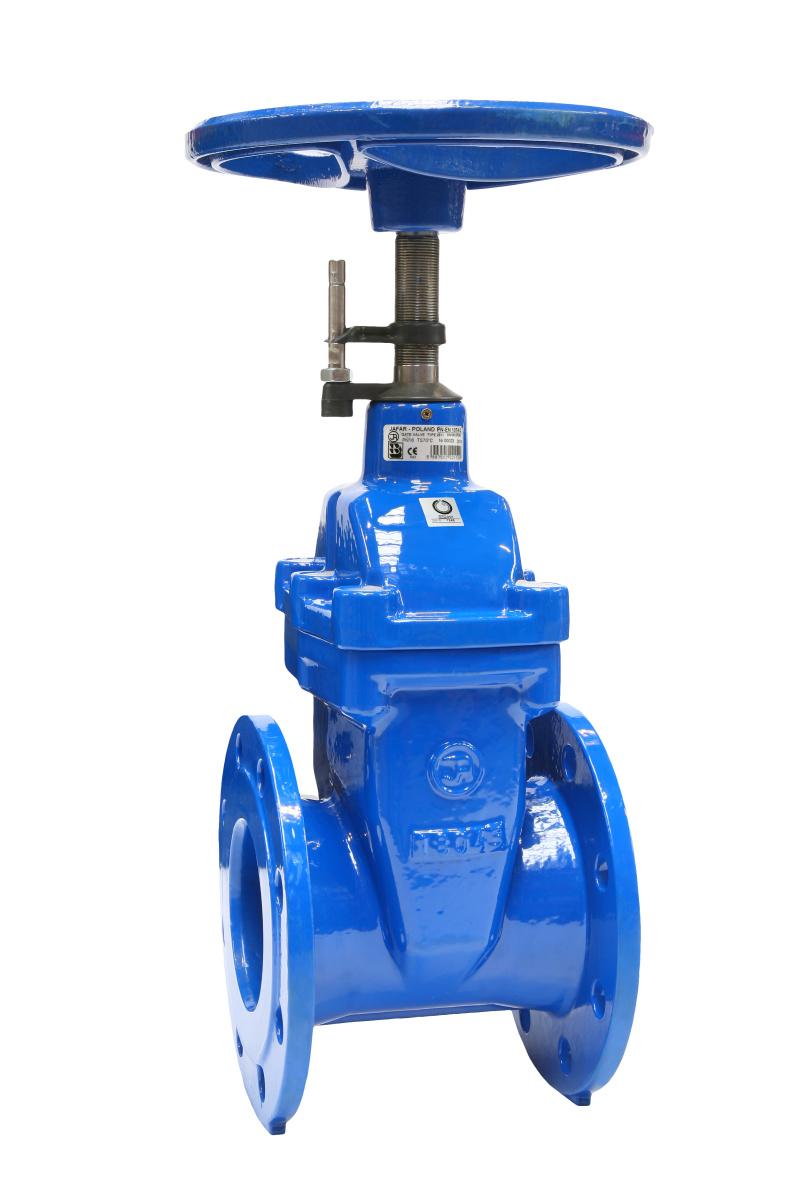

FM82

The FM82 is a PN16 ductile iron gate valve covering 65–300 mm, with flanged connections according to BS EN 1092-2 PN16.

FM124 / FM125

The FM124 / FM125 is a Resilient Seated Gate Valve (RSGV) manufactured from ductile iron.

Key characteristics include:

• Size: 50–300 mm
• Pressure rating: PN16
• Flanged connection
• BS EN 1092-2
• WRAS approved

This makes the FM124/FM125 particularly suitable for water and public-health applications where resilient seating and approved potable-water components are required.

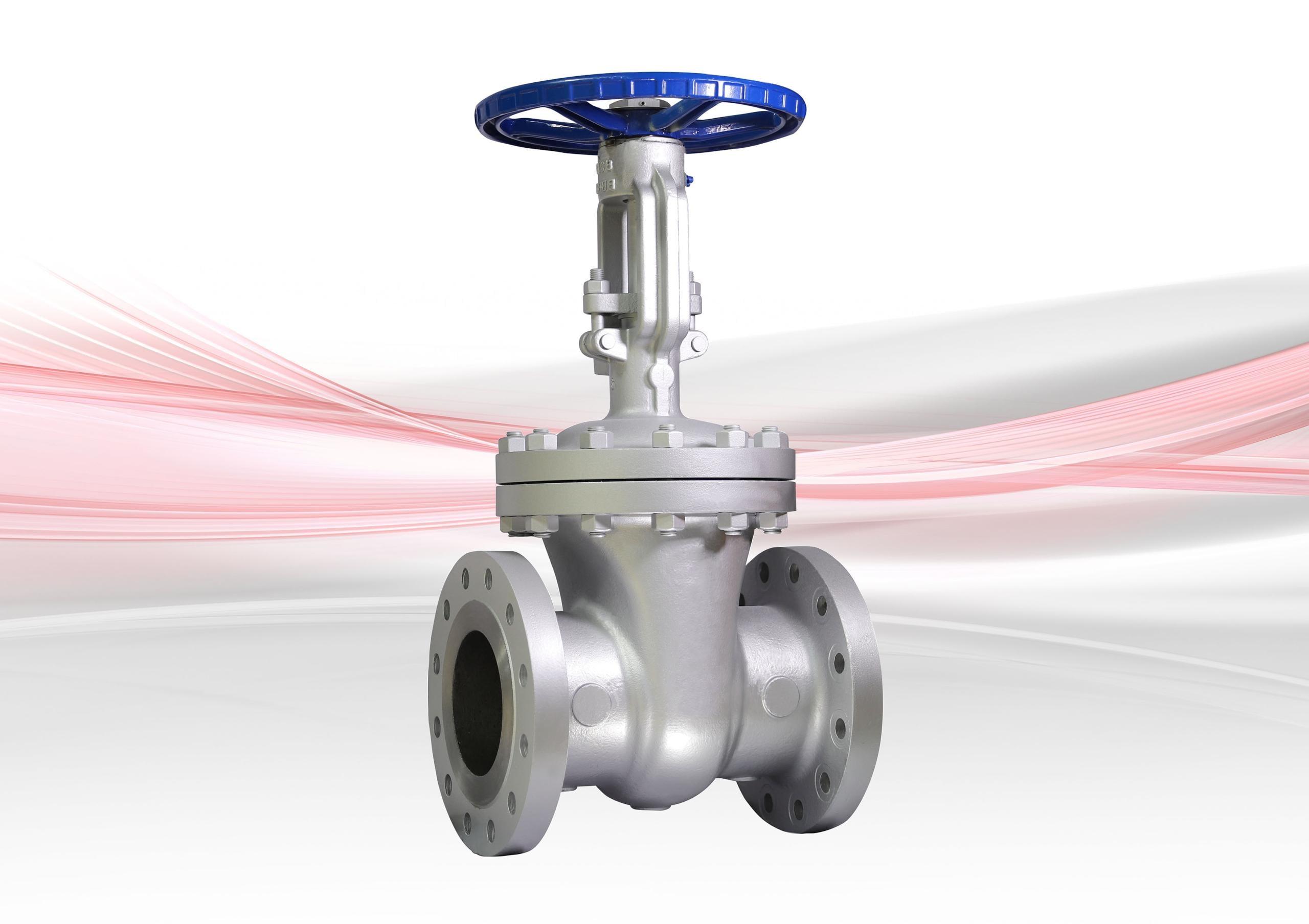

Cast Steel Gate Valves

For higher-pressure industrial applications, Crane provides the 33XU-F and 47XU-F cast steel gate valves.

47XU-F

The 47XU-F is a Class 150 cast steel gate valve available from 2″ to 24″.

Crane identifies several features including:

• Carbon steel construction
• Class 150 pressure rating
• Flanged ends
• Outside screw and yoke
• Flexible wedge disc
• Seat rings seal welded to eliminate leak paths

The flexible wedge design helps compensate for deformation of the valve body caused by pipe stresses.

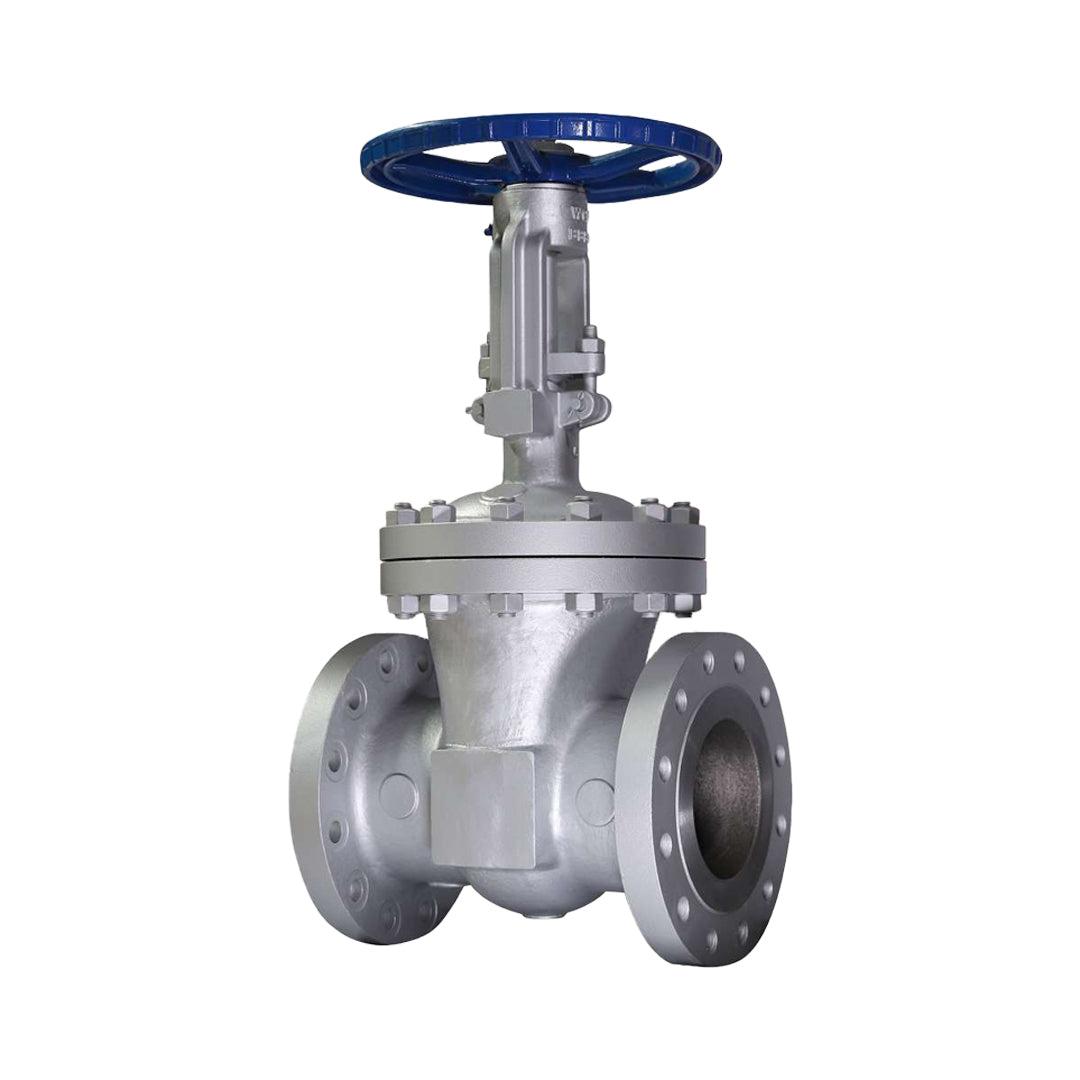

33XU-F

The 33XU-F extends the range to Class 300, with sizes from 2″ to 12″.

These valves are therefore appropriate where higher pressure ratings and more demanding industrial service conditions require a cast steel gate valve.

Gate Valve Applications

Crane Fluid Systems gate valves are used across a broad range of building-services and industrial systems.

HVAC Systems

• Heating water
• Chilled water
• Cooling water
• Central plant
• Pumping systems
• Heat exchangers

Plumbing

• Domestic water
• Commercial water systems
• Water distribution
• Building services

Industrial Systems

• Process water
• Industrial utilities
• High-pressure services
• General process piping

Crane states that its general valve portfolio is used worldwide in homes, offices, industrial, educational, recreational and hospital buildings.

Key Benefits

Low Pressure Drop

The straight-through design provides little resistance to flow when fully open, making gate valves suitable where minimizing pressure loss is important.

Bidirectional Flow

Gate valves can be used to isolate flow in either direction.

Wide Material Selection

Crane offers:

• Bronze
• Brass
• Cast iron
• Ductile iron
• Carbon steel

This allows the valve to be selected according to the application and operating conditions.

Wide Pressure Range

The Crane range covers pressure ratings from PN6 through PN32, plus ANSI Class 100, 125, 150 and 300 options.

Wide Size Range

The product portfolio covers small threaded valves starting at 1/4″ and large cast-steel valves up to 24″.

BIM Ready

Many Crane gate valves have BIM files available, supporting engineering design and digital building projects.

Product Attributes

Why Choose Crane Fluid Systems Gate Valves?

The Crane Fluid Systems Gate Valve range provides engineers and contractors with a comprehensive selection of isolation valves for building-services, water and industrial applications.

From compact bronze and brass threaded valves through to ductile iron, cast iron and high-pressure cast steel gate valves, the range provides solutions for different pipe sizes, pressure ratings and connection standards.

With its emphasis on low pressure drop, reliable isolation, multiple material options and broad international connection standards, Crane gate valves are a practical choice for HVAC, plumbing, water distribution and industrial piping systems.

Crane also provides BIM-ready product components, technical documentation and engineering support to assist designers, contractors and system operators throughout the valve selection and project lifecycle.
