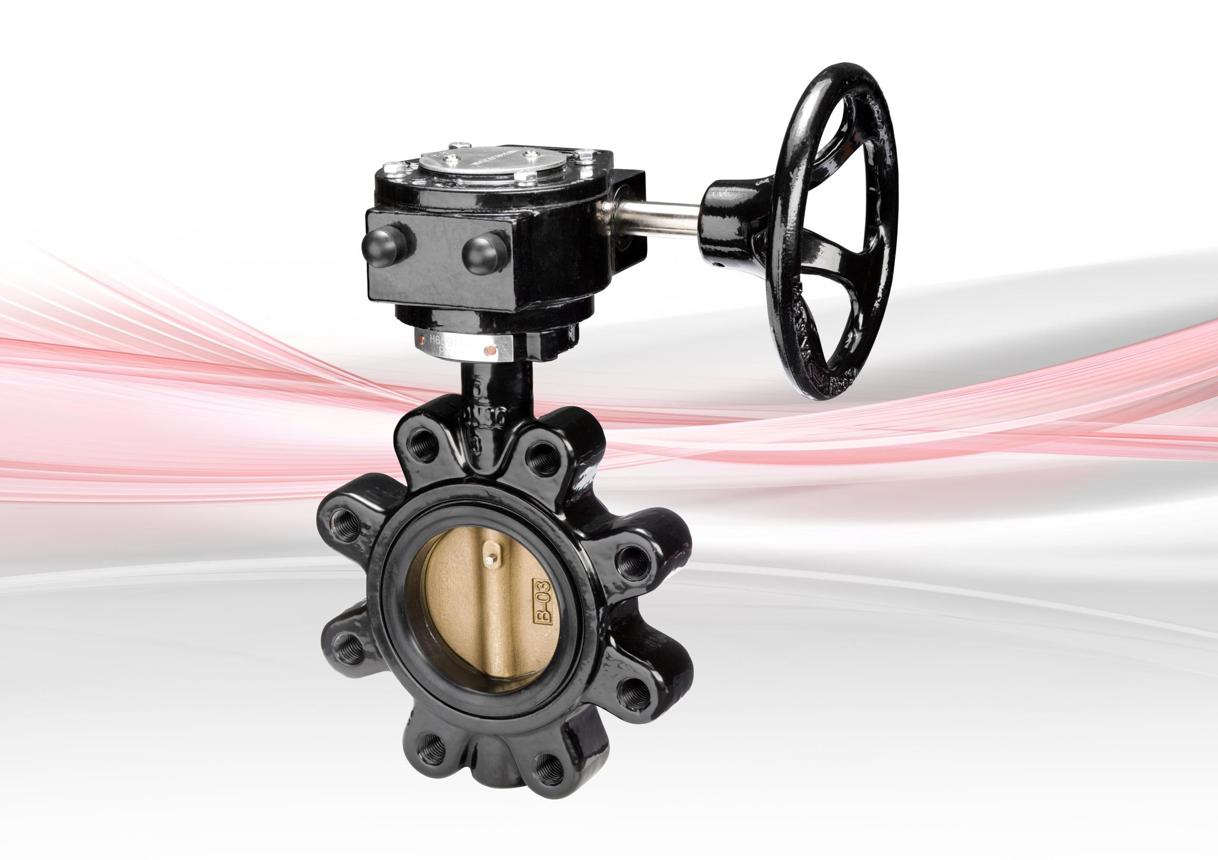

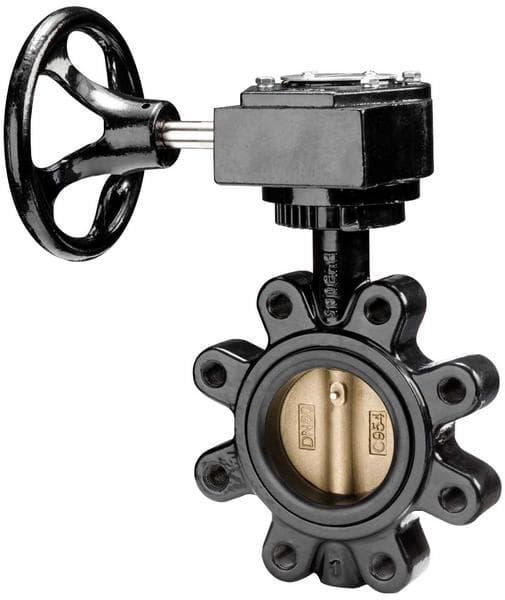

Crane F625 Fully-Lugged Gearbox Operated Butterfly Valve
Heavy-Duty PN16 Fully-Lugged Butterfly Valve for HVAC, Water & Industrial Systems
The Crane F625 is a fully-lugged, gearbox-operated butterfly valve designed for reliable isolation in commercial HVAC, potable water, district energy, and industrial piping systems. Constructed from high-strength ductile iron, fitted with an aluminium bronze disc, 420 stainless steel shaft, and a WRAS-approved EPDM liner, the F625 delivers outstanding corrosion resistance, dependable sealing, and smooth manual operation through its enclosed gearbox.
The fully-lugged body allows dead-end service, enabling one side of the pipeline to be disconnected while the opposite side remains in service. Manufactured in accordance with BS EN 593, the F625 is suitable for BS EN 1092-2 PN16flanges and is designed for long-term, maintenance-free performance.
Key Features
- Fully-lugged butterfly valve
- Heavy-duty gearbox operated
- Quarter-turn isolation valve
- Size range: DN50–DN300
- Pressure rating: PN16
- Fully-lugged ductile iron body
- Aluminium bronze disc
- WRAS-approved EPDM liner
- 420 stainless steel shaft
- Blow-out proof stem
- Fully bonded epoxy coating
- Maintenance-free construction
- Suitable for dead-end service
- Designed to BS EN 593
- Compatible with BS EN 1092-2 PN16 flanges
- BIM models and CAD files available.
Benefits
Fully-Lugged Body for Maximum Installation Flexibility
Unlike wafer or semi-lugged valves, the F625 features a fully-lugged body, allowing downstream pipework to be removed while maintaining pressure on the upstream side. This makes maintenance faster and reduces plant downtime.
Smooth Gearbox Operation
The robust enclosed gearbox significantly reduces operating torque, providing smooth and controlled valve movement. It is particularly suitable for larger valve sizes where lever operation becomes impractical.
WRAS Approved for Potable Water
The EPDM seat is WRAS approved for potable water applications between -10°C and +80°C, making the valve suitable for drinking water distribution as well as HVAC services.
Excellent Corrosion Protection
A fully bonded epoxy coating protects the ductile iron body, while the aluminium bronze disc provides excellent resistance to corrosion in chilled water, heating water, and clean water systems. The coating is suitable for C3 Mediumenvironmental conditions.
Maintenance-Free Performance
The resilient EPDM liner and precision-engineered internal components eliminate routine lubrication requirements, reducing maintenance costs throughout the valve’s service life.
Typical Applications
The Crane F625 is ideal for:
- HVAC heating systems
- Chilled water systems
- Potable water distribution
- District heating
- District cooling
- Commercial buildings
- Hospitals
- Hotels
- Universities
- Water treatment plants
- Mechanical plant rooms
- Industrial process water
- Pump stations
- General building services.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Crane Fluid Systems |
| Model | F625 |
| Product Type | Fully-Lugged Butterfly Valve |
| Operation | Gearbox Operated |
| Valve Standard | BS EN 593 |
| Size Range | DN50–DN300 |
| Pressure Rating | PN16 |
| Body Material | Ductile Iron |
| Disc Material | Aluminium Bronze |
| Seat Material | WRAS Approved EPDM |
| Shaft Material | 420 Stainless Steel |
| Temperature Range | -10°C to +100°C (WRAS approved to +80°C) |
| End Connection | BS EN 1092-2 PN16 |
| Surface Protection | Fully Bonded Epoxy Coating |
| Corrosion Protection | C3 Medium Environment |
Why Choose the Crane F625?
The Crane F625 Fully-Lugged Gearbox Operated Butterfly Valve is engineered for demanding isolation duties in commercial and industrial piping systems. Its fully-lugged body supports dead-end installation, while the gearbox ensures smooth operation on larger valves with reduced operating effort. Combined with a ductile iron body, aluminium bronze disc, WRAS-approved EPDM liner, and durable epoxy coating, the F625 offers exceptional reliability, corrosion resistance, and long service life. Compliance with BS EN 593 and compatibility with PN16 flanges make it an excellent choice for HVAC, potable water, and general water distribution applications.
