Crane Fluid Systems Actuators
Intelligent Electric Actuators for HVAC, Hydronic Balancing & Valve Automation
Crane Fluid Systems offers a comprehensive range of electric actuators designed to automate control valves, pressure independent control valves (PICVs), butterfly valves, and other HVAC flow control equipment. Engineered for modern building services, the Crane actuator portfolio provides precise valve positioning, energy-efficient operation, and seamless integration with Building Management Systems (BMS) and Building Automation Systems (BAS). The range includes modulating, 3-point, thermic, Modbus, smart, and quarter-turn actuators to suit virtually every HVAC control application.
Product Range
Modulating Actuators
Crane modulating actuators deliver precise proportional control for 2-port, 3-port, and pressure independent control valves. Supporting 0–10 V, 2–10 V, and 4–20 mA control signals, these actuators continuously adjust valve position to maintain accurate temperature, pressure, and flow control. Models such as ACT991M, ACT993, and ACT996incorporate advanced stroke calibration and gap detection technology for simplified commissioning and improved control accuracy.
Feedback & Fail-Safe Actuators

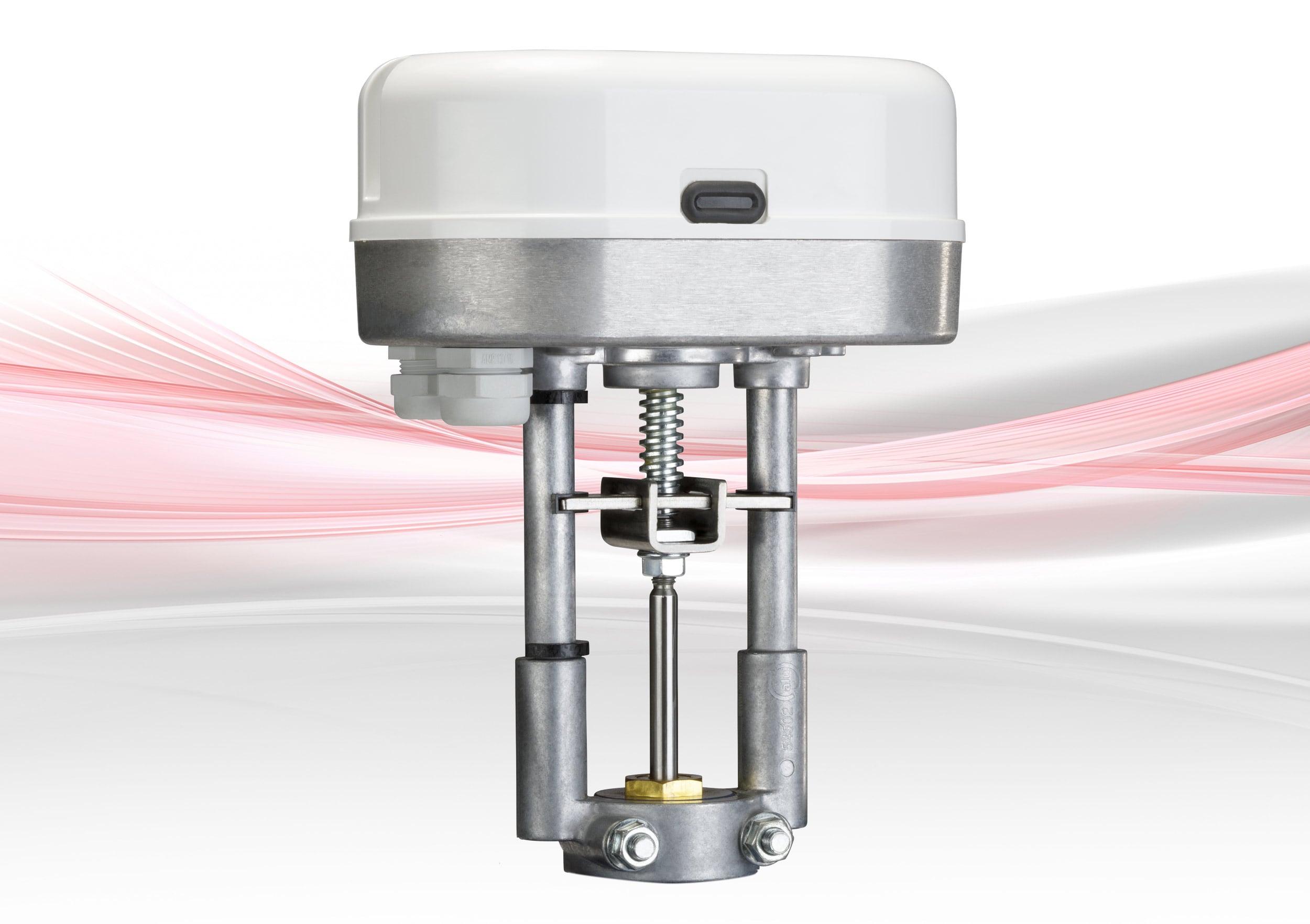

The ACTD995FB provides proportional control with integrated position feedback, allowing BMS systems to verify actual valve position. The ACTD995FS incorporates a fail-safe mechanism that automatically moves the valve to a predefined safe position during power loss, protecting HVAC equipment and improving system reliability.
Thermic Actuators
Compact ACT991TH thermic actuators are designed for ON/OFF control where installation space is limited. Their lightweight construction and quiet operation make them ideal for fan coil units, underfloor heating manifolds, and zone control applications.
3-Point Actuators
The ACT991TP floating (3-point) actuator provides incremental valve positioning without requiring analog control signals. It is suitable for conventional HVAC control systems where precise modulation is required using open/close commands.
Modbus Smart Actuators
The ACTMDBUS intelligent actuator communicates directly through the Modbus protocol, enabling remote commissioning, valve monitoring, flow indication, and diagnostics. It forms part of Crane’s Connected Solutions platform for smart building applications.
Quarter-Turn Actuators
The ECQ Series rotary electric actuators automate butterfly valves and other quarter-turn valves. Available in ON/OFF and modulating versions, the ECQ series offers torque ratings from 50 Nm to 6000 Nm, IP67 enclosure protection, manual override, and support for analog feedback signals.
Key Features
- Comprehensive actuator portfolio for HVAC and hydronic systems
- Compatible with control valves, PICVs, balancing valves, and butterfly valves
- ON/OFF, Floating (3-point), and Modulating control
- Analog control:
- 0–10 V
- 2–10 V
- 4–20 mA
- Modbus communication available
- Position feedback capability
- Fail-safe models available
- Automatic stroke calibration and gap detection
- Manual override on selected models
- LED operating status indication
- Compact and energy-efficient design
- Designed for Building Management Systems (BMS).
Benefits
Energy-Efficient HVAC Control
By continuously adjusting valve position according to building demand, Crane actuators improve hydronic balancing, stabilize room temperatures, and reduce unnecessary energy consumption in chilled water and heating systems.
Simplified Commissioning
Gap Detection technology automatically matches actuator travel to the valve stroke, reducing manual adjustment during installation and improving control accuracy across the full operating range.
Reliable Operation
Integrated diagnostics, position feedback, thermal protection, and fail-safe options enhance system reliability while reducing maintenance requirements and downtime.
Smart Building Integration
Modbus-enabled actuators support remote commissioning, flow monitoring, valve status reporting, and predictive maintenance, making them suitable for modern digital building management platforms.
Typical Applications
Crane Fluid Systems actuators are widely used in:
- Commercial HVAC systems
- District heating and cooling
- Chilled water systems
- Pressure Independent Control Valves (PICVs)
- Fan coil units
- Air Handling Units (AHUs)
- Heat exchangers
- Data centres
- Hospitals
- Hotels
- Office buildings
- Universities
- Industrial building services.
Main Actuator Series
| Model | Type | Main Features |
|---|---|---|
| ACT991M | Modulating | Equal percentage control, Gap Detection |
| ACTD995FB | Feedback | Position feedback, proportional control |
| ACTD995FS | Fail Safe | Automatic safe position during power loss |
| ACT991TP | Floating | 3-point actuator |
| ACT991TH | Thermic | Compact ON/OFF actuator |
| ACT993 | Modulating | 300 N force for 2 & 3-port valves |
| ACT996 | Modulating | 600–2200 N force options |
| ACTMDBUS | Smart Actuator | Modbus communication, remote commissioning |
| ECQ | Quarter-Turn | Rotary actuator, 50–6000 Nm torque |
Why Choose Crane Fluid Systems Actuators?
Crane Fluid Systems actuators combine precision valve control with intelligent automation technologies to improve HVAC efficiency, occupant comfort, and system reliability. From compact thermic actuators for zone control to advanced Modbus-connected actuators and heavy-duty quarter-turn models, Crane offers a complete automation solution for modern hydronic systems. Features such as automatic stroke calibration, position feedback, fail-safe operation, and smart building connectivity help reduce commissioning time, simplify maintenance, and optimize energy performance throughout the building lifecycle.
