DIRECT-READING LIQUID LEVEL / FLOW INDICATORS

Jogler direct-reading liquid level / flow indicators are a simple, leak-proof way to observe liquid level in a vessel. Unique PTFE Teflon SuperSeals act as both the flange sealing face and sight tube seal so that only the Teflon and Borosilicate glass sight tube are wetted, pressure-bearing parts (Teflon lined models have only FEP as the wetted part).

• Powder-Coated Carbon Steel or 316/316L Stainless Steel shields

• Wide range of chemical compatibility

• 5 independent tube-sealing ridges for leak-free installations (7 for Tube-in-Tube models)

• FM approved for use with flammable liquids

  LEVEL STYLE:

  • Powder-Coated Carbon Steel, 316/316L Stainless Steel, and PTFE Teflon lined Carbon Steel side connectors available

  • Calibrated ruler for accurate level measurements

  • Highly visible compared to traditional sight glasses

  • Long lengths (up to 10ft per gauge section) allow for minimal joints

  • Single Tube (Model LS)

  • Tube-in-Tube (Model LT)

  • FEP Teflon-Lined Single Tube (Model ULSS)

  • FEP Teflon-Lined Tube-in-Tube (Model ULTS)

    ARMORED FLOW STYLE:

    • Tubular shield for maximum sight tube protection with high visibility

    • Large diameters (up to 8” flange sizes standard)

    • Single Tube (Model FS)

    • Tube-in-Tube (Model FT)

    • FEP Teflon-Lined Single Tube (Model UFSS)

    • FEP Teflon-Lined Tube-in-Tube (Model UFTS)

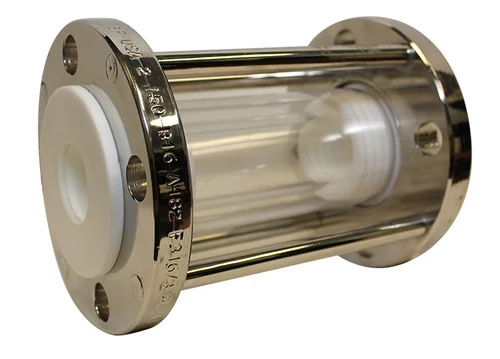

      LANTERN FLOW STYLE:

      • Lantern-style shield for sight tube protection with 360° visibility

      • Large diameters (up to 8” flange sizes standard)

      • Single Tube (Model LAS)

      • Tube-in-Tube (Model LAT)

      • FEP Teflon-Lined Single Tube (Model ULAS)

      • FEP Teflon-Lined Tube-in-Tube (Model ULAT)
